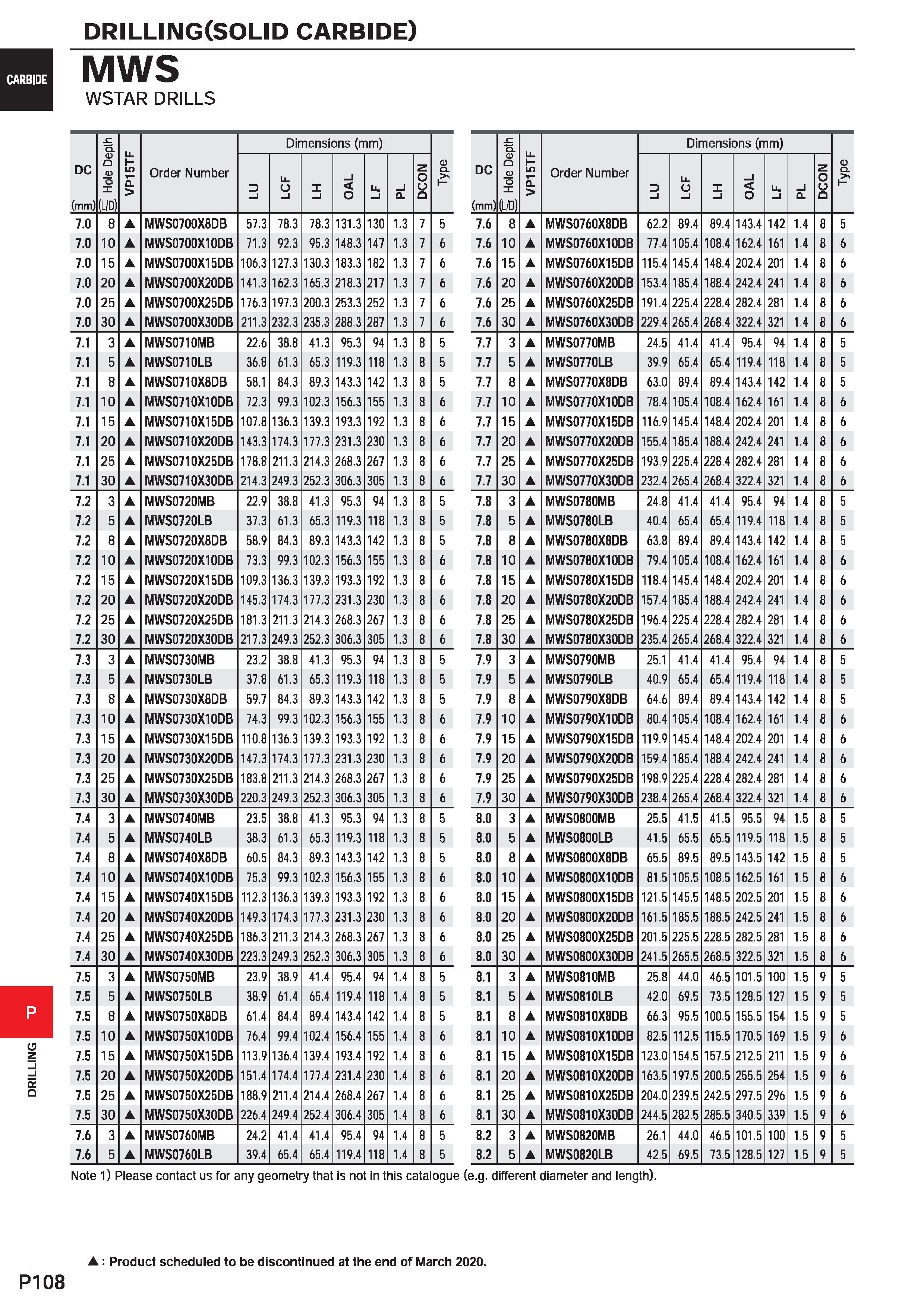

DRILLING(SOLID carbide) MWS WSTAR DRILLS DC (mm) tz Q. D O D 0 1 (L/D) VP15TF Order Number Dimensions (mm) D CL D l Li. O l X i i O Li. l i Q. DCON 7.0 8 MWS0700X8DB 57.3 78.3 78.3 131.3 130 1.3 7 5 7.0 10 MWS0700X10DB 71.3 92.3 95.3 148.3 147 1.3 7 6 7.0 15 MWS0700X15DB 106.3 127.3 130.3 183.3 182 1.3 7 6 7.0 20 MWS0700X20DB 141.3 162.3 165.3 218.3 217 1.3 7 6 7.0 25 MWS0700X25DB 176.3 197.3 200.3 253.3 252 1.3 7 6 7.0 30 MWS0700X30DB 211.3 232.3 235.3 288.3 287 1.3 7 6 7.1 3 MWS0710MB 22.6 38.8 41.3 95.3 94 1.3 8 5 7.1 5 MWS0710LB 36.8 61.3 65.3 119.3 118 1.3 8 5 7.1 8 MWS0710X8DB 58.1 84.3 89.3 143.3 142 1.3 8 5 7.1 10 MWS0710X1 ODB 72.3 99.3 102.3 156.3 155 1.3 8 6 7.1 15 MWS0710X15DB 107.8 136.3 139.3 193.3 192 1.3 8 6 7.1 20 MWS0710X20DB 143.3 174.3 177.3 231.3 230 1.3 8 6 7.1 25 MWS0710X25DB 178.8 211.3 214.3 268.3 267 1.3 8 6 7.1 30 MWS0710X30DB 214.3 249.3 252.3 306.3 305 1.3 8 6 7.2 3 MWS0720MB 22.9 38.8 41.3 95.3 94 1.3 8 5 7.2 5 MWS0720LB 37.3 61.3 65.3 119.3 118 1.3 8 5 7.2 8 MWS0720X8DB 58.9 84.3 89.3 143.3 142 1.3 8 5 7.2 10 MWS0720X10DB 73.3 99.3 102.3 156.3 155 1.3 8 6 7.2 15 MWS0720X15DB 109.3 136.3 139.3 193.3 192 1.3 8 6 7.2 20 MWS0720X20DB 145.3 174.3 177.3 231.3 230 1.3 8 6 7.2 25 MWS0720X25DB 181.3 211.3 214.3 268.3 267 1.3 8 6 7.2 30 MWS0720X30DB 217.3 249.3 252.3 306.3 305 1.3 8 6 7.3 3 MWS0730MB 23.2 38.8 41.3 95.3 94 1.3 8 5 7.3 5 MWS0730LB 37.8 61.3 65.3 119.3 118 1.3 8 5 7.3 8 MWS0730X8DB 59.7 84.3 89.3 143.3 142 1.3 8 5 7.3 10 MWS0730X10DB 74.3 99.3 102.3 156.3 155 1.3 8 6 7.3 15 MWS0730X15DB 110.8 136.3 139.3 193.3 192 1.3 8 6 7.3 20 MWS0730X20DB 147.3 174.3 177.3 231.3 230 1.3 8 6 7.3 25 MWS0730X25DB 183.8 211.3 214.3 268.3 267 1.3 8 6 7.3 30 MWS0730X30DB 220.3 249.3 252.3 306.3 305 1.3 8 6 7.4 3 MWS0740MB 23.5 38.8 41.3 95.3 94 1.3 8 5 7.4 5 MWS0740LB 38.3 61.3 65.3 119.3 118 1.3 8 5 7.4 8 MWS0740X8DB 60.5 84.3 89.3 143.3 142 1.3 8 5 7.4 10 MWS0740X10DB 75.3 99.3 102.3 156.3 155 1.3 8 6 7.4 15 MWS0740X15DB 112.3 136.3 139.3 193.3 192 1.3 8 6 7.4 20 MWS0740X20DB 149.3 174.3 177.3 231.3 230 1.3 8 6 7.4 25 MWS0740X25DB 186.3 211.3 214.3 268.3 267 1.3 8 6 7.4 30 MWS0740X30DB 223.3 249.3 252.3 306.3 305 1.3 8 6 7.5 3 MWS0750MB 23.9 38.9 41.4 95.4 94 1.4 8 5 7.5 5 MWS0750LB 38.9 61.4 65.4 119.4 118 1.4 8 5 7.5 8 MWS0750X8DB 61.4 84.4 89.4 143.4 142 1.4 8 5 7.5 10 MWS0750X10DB 76.4 99.4 102.4 156.4 155 1.4 8 6 7.5 15 MWS0750X15DB 113.9 136.4 139.4 193.4 192 1.4 8 6 7.5 20 MWS0750X20DB 151.4 174.4 177.4 231.4 230 1.4 8 6 7.5 25 MWS0750X25DB 188.9 211.4 214.4 268.4 267 1.4 8 6 7.5 30 MWS0750X30DB 226.4 249.4 252.4 306.4 305 1.4 8 6 7.6 3 MWS0760MB 24.2 41.4 41.4 95.4 94 1.4 8 5 7.6 5 MWS0760LB 39.4 65.4 65.4 119.4 118 1.4 8 5 DC (mm) 5 Hole Depth VP15TF Order Number Dimensions (mm) D CL 3 l LCF X i OAL Ll. l i 0. DCON 7.6 8 MWS0760X8DB 62.2 89.4 89.4 143.4 142 1.4 8 5 7.6 10 MWS0760X10DB 77.4 105.4 108.4 162.4 161 1.4 8 6 7.6 15 MWS0760X15DB 115.4 145.4 148.4 202.4 201 1.4 8 6 7.6 20 MWS0760X20DB 153.4 185.4 188.4 242.4 241 1.4 8 6 7.6 25 MWS0760X25DB 191.4 225.4 228.4 282.4 281 1.4 8 6 7.6 30 MWS0760X30DB 229.4 265.4 268.4 322.4 321 1.4 8 6 7.7 3 MWS0770MB 24.5 41.4 41.4 95.4 94 1.4 8 5 7.7 5 MWS0770LB 39.9 65.4 65.4 119.4 118 1.4 8 5 7.7 8 MWS0770X8DB 63.0 89.4 89.4 143.4 142 1.4 8 5 7.7 10 MWS0770X10DB 78.4 105.4 108.4 162.4 161 1.4 8 6 7.7 15 MWS0770X15DB 116.9 145.4 148.4 202.4 201 1.4 8 6 7.7 20 MWS0770X20DB 155.4 185.4 188.4 242.4 241 1.4 8 6 7.7 25 MWS0770X25DB 193.9 225.4 228.4 282.4 281 1.4 8 6 7.7 30 MWS0770X30DB 232.4 265.4 268.4 322.4 321 1.4 8 6 7.8 3 MWS0780MB 24.8 41.4 41.4 95.4 94 1.4 8 5 7.8 5 MWS0780LB 40.4 65.4 65.4 119.4 118 1.4 8 5 7.8 8 MWS0780X8DB 63.8 89.4 89.4 143.4 142 1.4 8 5 7.8 10 MWS0780X10DB 79.4 105.4 108.4 162.4 161 1.4 8 6 7.8 15 MWS0780X15DB 118.4 145.4 148.4 202.4 201 1.4 8 6 7.8 20 MWS0780X20DB 157.4 185.4 188.4 242.4 241 1.4 8 6 7.8 25 MWS0780X25DB 196.4 225.4 228.4 282.4 281 1.4 8 6 7.8 30 MWS0780X30DB 235.4 265.4 268.4 322.4 321 1.4 8 6 7.9 3 MWS0790MB 25.1 41.4 41.4 95.4 94 1.4 8 5 7.9 5 MWS0790LB 40.9 65.4 65.4 119.4 118 1.4 8 5 7.9 8 MWS0790X8DB 64.6 89.4 89.4 143.4 142 1.4 8 5 7.9 10 MWS0790X10DB 80.4 105.4 108.4 162.4 161 1.4 8 6 7.9 15 MWS0790X15DB 119.9 145.4 148.4 202.4 201 1.4 8 6 7.9 20 MWS0790X20DB 159.4 185.4 188.4 242.4 241 1.4 8 6 7.9 25 MWS0790X25DB 198.9 225.4 228.4 282.4 281 1.4 8 6 7.9 30 MWS0790X30DB 238.4 265.4 268.4 322.4 321 1.4 8 6 8.0 3 MWS0800MB 25.5 41.5 41.5 95.5 94 1.5 8 5 8.0 5 MWS0800LB 41.5 65.5 65.5 119.5 118 1.5 8 5 8.0 8 MWS0800X8DB 65.5 89.5 89.5 143.5 142 1.5 8 5 8.0 10 MWS0800X10DB 81.5 105.5 108.5 162.5 161 1.5 8 6 8.0 15 MWS0800X15DB 121.5 145.5 148.5 202.5 201 1.5 8 6 8.0 20 MWS0800X20DB 161.5 185.5 188.5 242.5 241 1.5 8 6 8.0 25 MWS0800X25DB 201.5 225.5 228.5 282.5 281 1.5 8 6 8.0 30 MWS0800X30DB 241.5 265.5 268.5 322.5 321 1.5 8 6 8.1 3 MWS0810MB 25.8 44.0 46.5 101.5 100 1.5 9 5 8.1 5 MWS0810LB 42.0 69.5 73.5 128.5 127 1.5 9 5 8.1 8 MWS0810X8DB 66.3 95.5 100.5 155.5 154 1.5 9 5 8.1 10 MWS0810X10DB 82.5 112.5 115.5 170.5 169 1.5 9 6 8.1 15 MWS0810X15DB 123.0 154.5 157.5 212.5 211 1.5 9 6 8.1 20 MWS0810X20DB 163.5 197.5 200.5 255.5 254 1.5 9 6 8.1 25 MWS0810X25DB 204.0 239.5 242.5 297.5 296 1.5 9 6 8.1 30 MWS0810X30DB 244.5 282.5 285.5 340.5 339 1.5 9 6 8.2 3 MWS0820MB 26.1 44.0 46.5 101.5 100 1.5 9 5 8.2 5 MWS0820LB 42.5 69.5 73.5 128.5 127 1.5 9 5 Note 1) Please contact us for any geometry that is not in this catalogue (e.g. different diameter and length). : Product scheduled to be discontinued at the end of March 2020.
