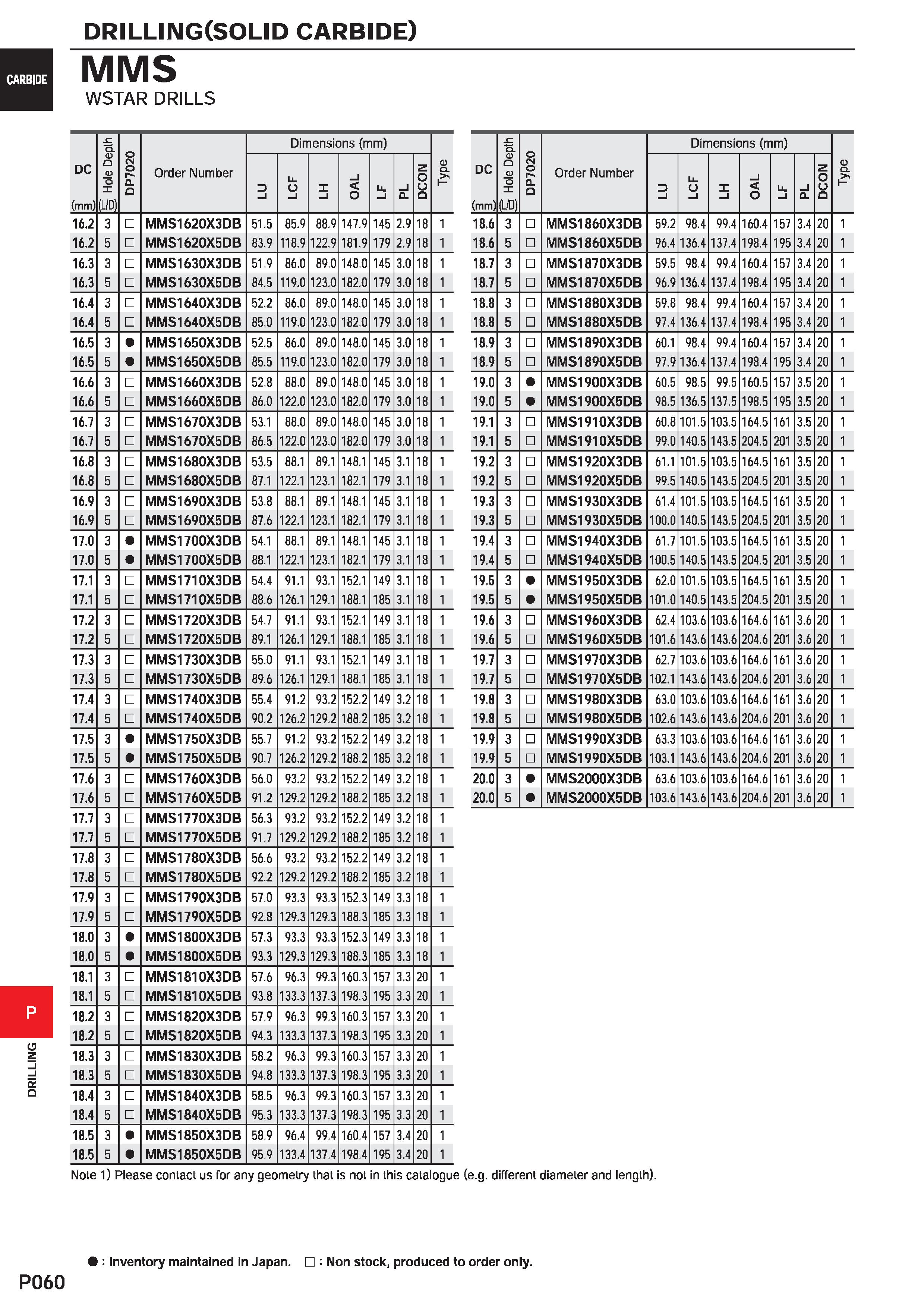

DRILLING(SOLID carbide) MMS WSTAR DRILLS DC (mm) tz Q. D O D O (L/D) DP7020 Order Number Dimensions (mm) D Q. 3 l Li. o l X i i O Li. l i CL z Q 16.2 3 MMS1620X3DB 51.5 85.9 88.9 147.9 145 2.9 18 1 16.2 5 MMS1620X5DB 83.9 118.9 122.9 181.9 179 2.9 18 1 16.3 3 MMS1630X3DB 51.9 86.0 89.0 148.0 145 3.0 18 1 16.3 5 MMS1630X5DB 84.5 119.0 123.0 182.0 179 3.0 18 1 16.4 3 MMS1640X3DB 52.2 86.0 89.0 148.0 145 3.0 18 1 16.4 5 MMS1640X5DB 85.0 119.0 123.0 182.0 179 3.0 18 1 16.5 3 MMS1650X3DB 52.5 86.0 89.0 148.0 145 3.0 18 1 16.5 5 MMS1650X5DB 85.5 119.0 123.0 182.0 179 3.0 18 1 16.6 3 MMS1660X3DB 52.8 88.0 89.0 148.0 145 3.0 18 1 16.6 5 MMS1660X5DB 86.0 122.0 123.0 182.0 179 3.0 18 1 16.7 3 MMS1670X3DB 53.1 88.0 89.0 148.0 145 3.0 18 1 16.7 5 MMS1670X5DB 86.5 122.0 123.0 182.0 179 3.0 18 1 16.8 3 MMS1680X3DB 53.5 88.1 89.1 148.1 145 3.1 18 1 16.8 5 MMS1680X5DB 87.1 122.1 123.1 182.1 179 3.1 18 1 16.9 3 MMS1690X3DB 53.8 88.1 89.1 148.1 145 3.1 18 1 16.9 5 MMS1690X5DB 87.6 122.1 123.1 182.1 179 3.1 18 1 17.0 3 MMS1700X3DB 54.1 88.1 89.1 148.1 145 3.1 18 1 17.0 5 MMS1700X5DB 88.1 122.1 123.1 182.1 179 3.1 18 1 17.1 3 MMS1710X3DB 54.4 91.1 93.1 152.1 149 3.1 18 1 17.1 5 MMS1710X5DB 88.6 126.1 129.1 188.1 185 3.1 18 1 17.2 3 MMS1720X3DB 54.7 91.1 93.1 152.1 149 3.1 18 1 17.2 5 MMS1720X5DB 89.1 126.1 129.1 188.1 185 3.1 18 1 17.3 3 MMS1730X3DB 55.0 91.1 93.1 152.1 149 3.1 18 1 17.3 5 MMS1730X5DB 89.6 126.1 129.1 188.1 185 3.1 18 1 17.4 3 MMS1740X3DB 55.4 91.2 93.2 152.2 149 3.2 18 1 17.4 5 MMS1740X5DB 90.2 126.2 129.2 188.2 185 3.2 18 1 17.5 3 MMS1750X3DB 55.7 91.2 93.2 152.2 149 3.2 18 1 17.5 5 MMS1750X5DB 90.7 126.2 129.2 188.2 185 3.2 18 1 17.6 3 MMS1760X3DB 56.0 93.2 93.2 152.2 149 3.2 18 1 17.6 5 MMS1760X5DB 91.2 129.2 129.2 188.2 185 3.2 18 1 17.7 3 MMS1770X3DB 56.3 93.2 93.2 152.2 149 3.2 18 1 17.7 5 MMS1770X5DB 91.7 129.2 129.2 188.2 185 3.2 18 1 17.8 3 MMS1780X3DB 56.6 93.2 93.2 152.2 149 3.2 18 1 17.8 5 MMS1780X5DB 92.2 129.2 129.2 188.2 185 3.2 18 1 17.9 3 MMS1790X3DB 57.0 93.3 93.3 152.3 149 3.3 18 1 17.9 5 MMS1790X5DB 92.8 129.3 129.3 188.3 185 3.3 18 1 18.0 3 MMS1800X3DB 57.3 93.3 93.3 152.3 149 3.3 18 1 18.0 5 MMS1800X5DB 93.3 129.3 129.3 188.3 185 3.3 18 1 18.1 3 MMS1810X3DB 57.6 96.3 99.3 160.3 157 3.3 20 1 18.1 5 MMS1810X5DB 93.8 133.3 137.3 198.3 195 3.3 20 1 18.2 3 MMS1820X3DB 57.9 96.3 99.3 160.3 157 3.3 20 1 18.2 5 MMS1820X5DB 94.3 133.3 137.3 198.3 195 3.3 20 1 18.3 3 MMS1830X3DB 58.2 96.3 99.3 160.3 157 3.3 20 1 18.3 5 MMS1830X5DB 94.8 133.3 137.3 198.3 195 3.3 20 1 18.4 3 MMS1840X3DB 58.5 96.3 99.3 160.3 157 3.3 20 1 18.4 5 MMS1840X5DB 95.3 133.3 137.3 198.3 195 3.3 20 1 18.5 3 MMS1850X3DB 58.9 96.4 99.4 160.4 157 3.4 20 1 18.5 5 MMS1850X5DB 95.9 133.4 137.4 198.4 195 3.4 20 1 DC (mm) 5 Hole Depth DP7020 Order Number Dimensions (mm) D CL 3 l LCF X i OAL Ll l i 0. DCON 18.6 3 MMS1860X3DB 59.2 98.4 99.4 160.4 157 3.4 20 1 18.6 5 MMS1860X5DB 96.4 136.4 137.4 198.4 195 3.4 20 1 18.7 3 MMS1870X3DB 59.5 98.4 99.4 160.4 157 3.4 20 1 18.7 5 MMS1870X5DB 96.9 136.4 137.4 198.4 195 3.4 20 1 18.8 3 MMS1880X3DB 59.8 98.4 99.4 160.4 157 3.4 20 1 18.8 5 MMS1880X5DB 97.4 136.4 137.4 198.4 195 3.4 20 1 18.9 3 MMS1890X3DB 60.1 98.4 99.4 160.4 157 3.4 20 1 18.9 5 MMS1890X5DB 97.9 136.4 137.4 198.4 195 3.4 20 1 19.0 3 MMS1900X3DB 60.5 98.5 99.5 160.5 157 3.5 20 1 19.0 5 MMS1900X5DB 98.5 136.5 137.5 198.5 195 3.5 20 1 19.1 3 MMS1910X3DB 60.8 101.5 103.5 164.5 161 3.5 20 1 19.1 5 MMS1910X5DB 99.0 140.5 143.5 204.5 201 3.5 20 1 19.2 3 MMS1920X3DB 61.1 101.5 103.5 164.5 161 3.5 20 1 19.2 5 MMS1920X5DB 99.5 140.5 143.5 204.5 201 3.5 20 1 19.3 3 MMS1930X3DB 61.4 101.5 103.5 164.5 161 3.5 20 1 19.3 5 MMS1930X5DB 100.0 140.5 143.5 204.5 201 3.5 20 1 19.4 3 MMS1940X3DB 61.7 101.5 103.5 164.5 161 3.5 20 1 19.4 5 MMS1940X5DB 100.5 140.5 143.5 204.5 201 3.5 20 1 19.5 3 MMS1950X3DB 62.0 101.5 103.5 164.5 161 3.5 20 1 19.5 5 MMS1950X5DB 101.0 140.5 143.5 204.5 201 3.5 20 1 19.6 3 MMS1960X3DB 62.4 103.6 103.6 164.6 161 3.6 20 1 19.6 5 MMS1960X5DB 101.6 143.6 143.6 204.6 201 3.6 20 1 19.7 3 MMS1970X3DB 62.7 103.6 103.6 164.6 161 3.6 20 1 19.7 5 MMS1970X5DB 102.1 143.6 143.6 204.6 201 3.6 20 1 19.8 3 MMS1980X3DB 63.0 103.6 103.6 164.6 161 3.6 20 1 19.8 5 MMS1980X5DB 102.6 143.6 143.6 204.6 201 3.6 20 1 19.9 3 MMS1990X3DB 63.3 103.6 103.6 164.6 161 3.6 20 1 19.9 5 MMS1990X5DB 103.1 143.6 143.6 204.6 201 3.6 20 1 20.0 3 MMS2000X3DB 63.6 103.6 103.6 164.6 161 3.6 20 1 20.0 5 MMS2000X5DB 103.6 143.6 143.6 204.6 201 3.6 20 1 Note 1) Please contact us for any geometry that is not in this catalogue (e.g. different diameter and length). : Inventory maintained in Japan. : Non stock, produced to order only.
