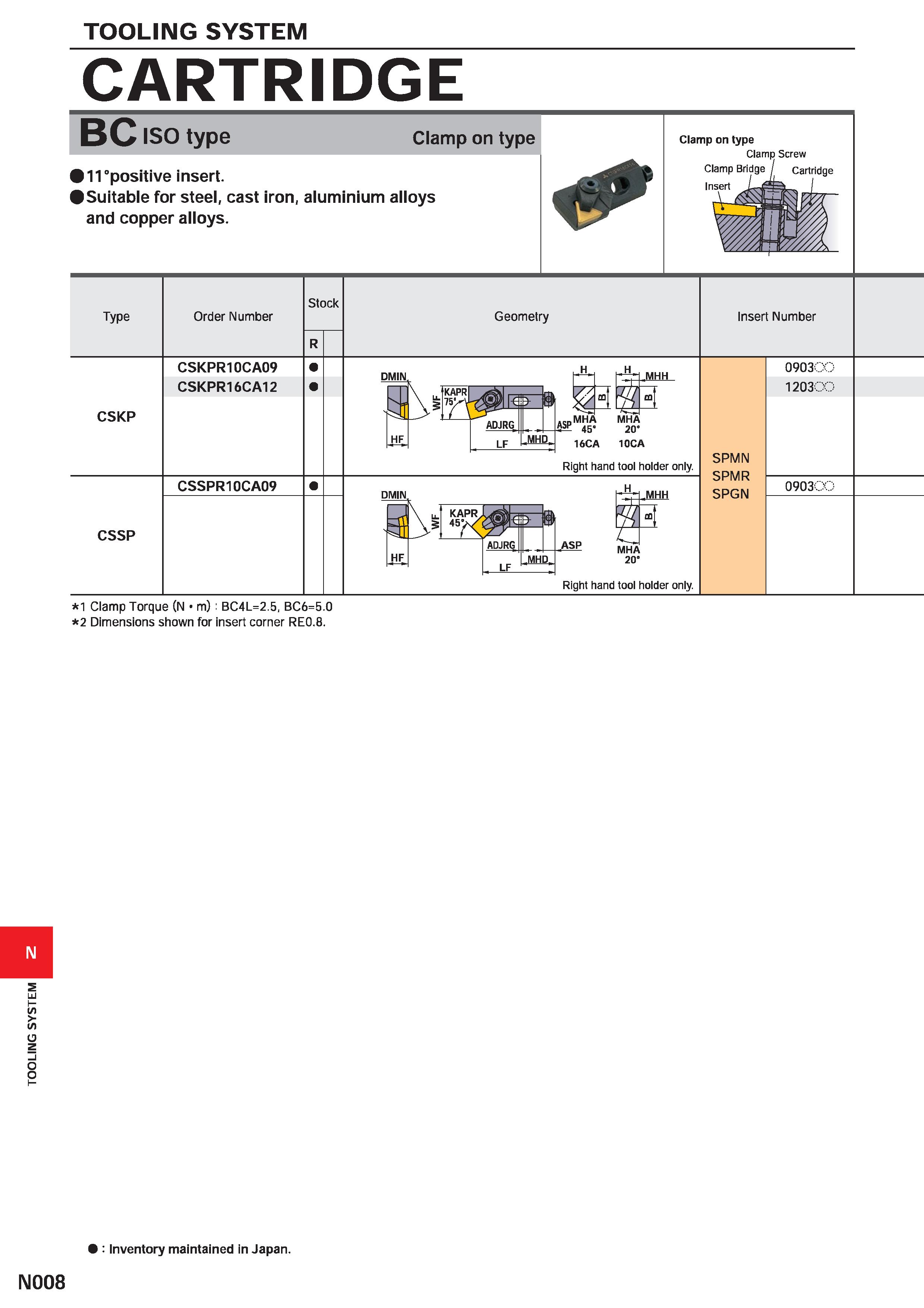

TOOLING SYSTEM TOOLING SYSTEM CARTRIDGE BC ISO type Clamp on type 11 "positive insert. Suitable for steel, cast iron, aluminium alloys and copper alloys. Type Order Number Stock Geometry Insert Number CSKP CSSP CSKPR10CA09 CSKPR16CA12 CSSPR10CA09 16CA 10CA Right hand tool holder only. DMIN HF KAPR 45 ADJRG LF MHD H ASP 8 MHA 20’ MHH Right hand tool holder only. SPMN SPMR SPGN 0903C 1203C 0903C 1 Clamp Torque (N m) : BC4L=2.5, BC6=5.0 2 Dimensions shown for insert corner RE0.8. N Clamp on type Clamp Screw Clamp Bridge / Cartridge : Inventory maintained in Japan. N008
