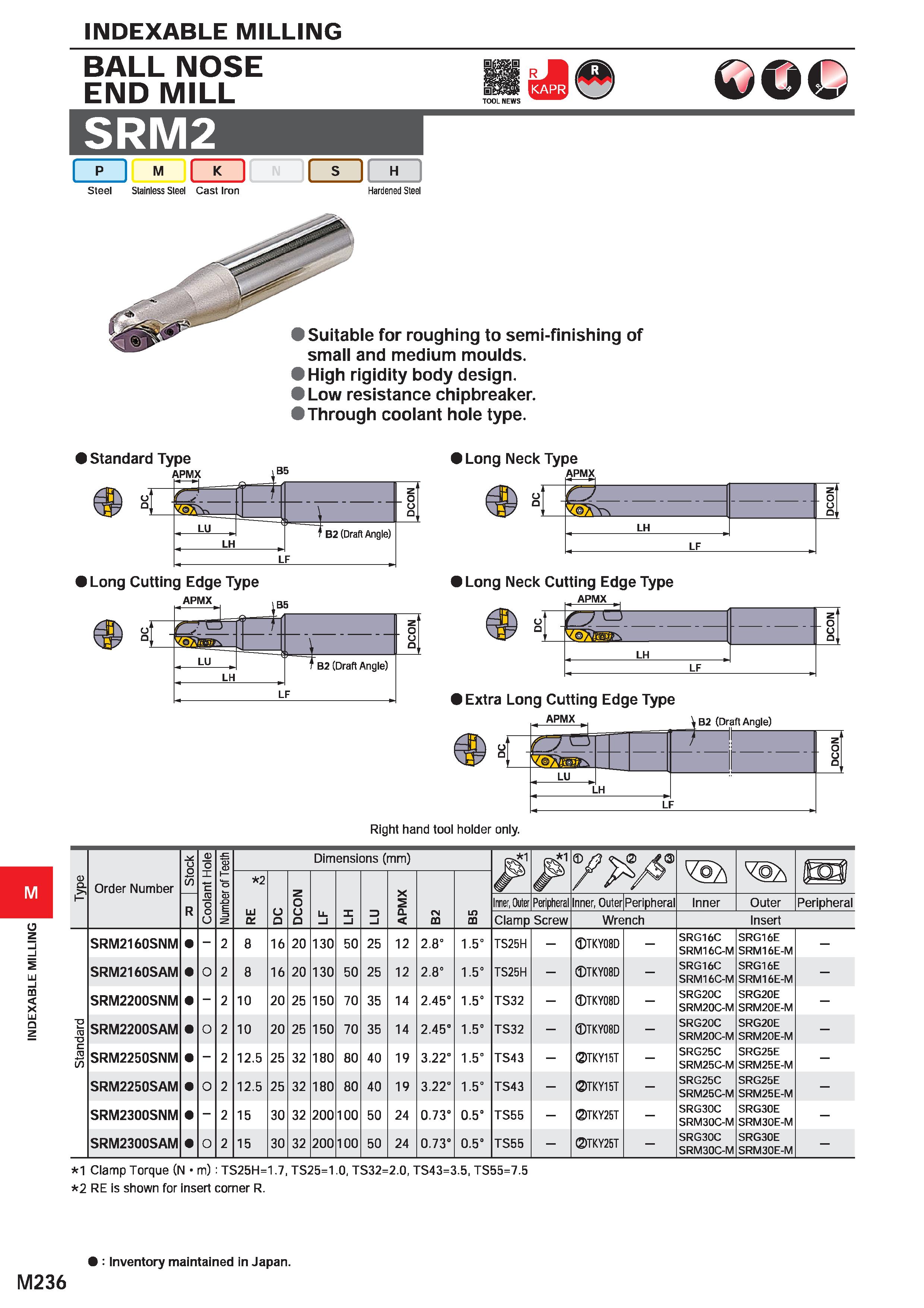

INDEXABLE MILLING BALL NOSE END MILL SRM2 I p I M ( Steel Stainless Steel Cast Iron Hardened Steel Bi TOOL NEWS Suitable for roughing to semi-finishing of small and medium moulds. High rigidity body design. Low resistance chipbreaker. Through coolant hole type. Long Neck Type APMX vZSxyn DCON LH LF l Long Neck Cutting Edge Type Extra Long Cutting Edge Type ti I I I I I l DCON LH LF Right hand tool holder only. Type Order Number Stock Coolant Hole Number of Teeth Dimensions (mm) p 1 (SPI 2 Ld a. o z o a a Ll. l X i 3 l X 2 a CM 00 in m R Inner, Outer Peripheral Inner, Outer Peripheral Inner Outer Peripheral Clamp Screw Wrench Insert SRM2160SNM - 2 8 16 20 130 50 25 12 2.8° 1.5° TS25H - TKY08D - SRG16C SRM16C-M SRG16E SRM16E-M - SRM2160SAM o 2 8 16 20 130 50 25 12 2.8° 1.5° TS25H - TKY08D - SRG16C SRM16C-M SRG16E SRM16E-M - SRM2200SNM - 2 10 20 25 150 70 35 14 2.45° 1.5° TS32 - TKYOBD - SRG20C SRM20C-M SRG20E SRM20E-M - T3 ra T3 SRM2200SAM o 2 10 20 25 150 70 35 14 2.45° 1.5° TS32 - TKY08D - SRG20C SRM20C-M SRG20E SRM20E-M - C ra (/) SRM2250SNM - 2 12.5 25 32 180 80 40 19 3.22° 1.5° TS43 - 0TKY15T - SRG25C SRM25C-M SRG25E SRM25E-M - SRM2250SAM o 2 12.5 25 32 180 80 40 19 3.22° 1.5° TS43 - 0TKY15T - SRG25C SRM25C-M SRG25E SRM25E-M - SRM2300SNM - 2 15 30 32 200 100 50 24 0.73° 0.5° TS55 - 0TKY25T - SRG30C SRM30C-M SRG30E SRM30E-M - SRM2300SAM o 2 15 30 32 200 100 50 24 0.73° 0.5° TS55 - 0TKY25T - SRG30C SRM30C-M SRG30E SRM30E-M - 1 Clamp Torque (N m) : TS25H=1.7, TS25=1.0, TS32=2.0, TS43=3.5, TS55=7.5 2 RE is shown for insert corner R. : Inventory maintained in Japan.
