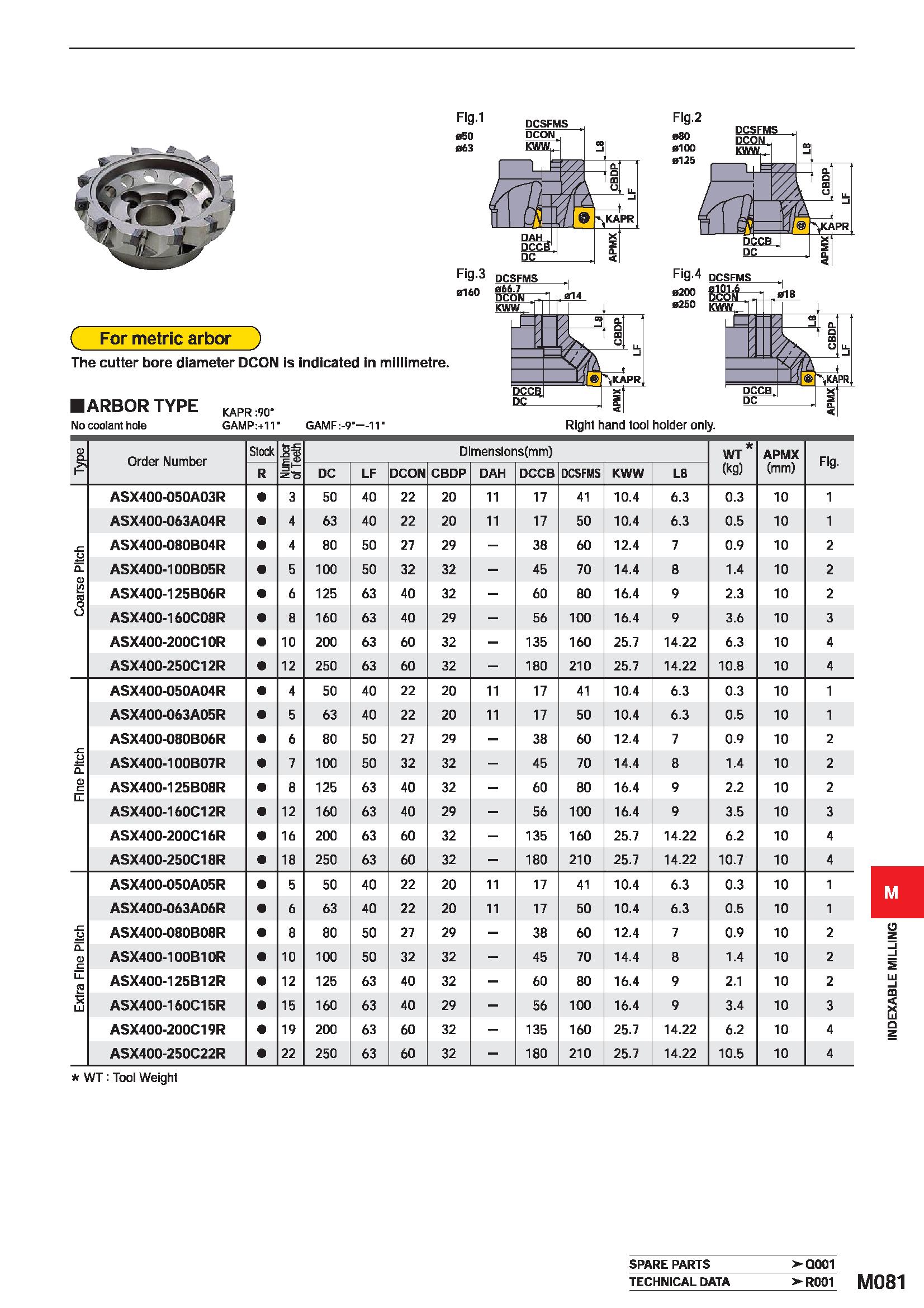

( For metric arbor ) The cutter bore diameter DCON is indicated in millimetre. ARBOR TYPE No coolant hole KAPR :90“ GAMP:+11 Flg.2 GAMF :-9 11' Right hand tool holder only. £D Q. Order Number Stock Numberl of Teeth Dlmenslons(mm) WT APMX Fig. R DC LF DCON CBDP DAH DCCB DCSFMS KWW L8 (kg) (mm) ASX400-050A03R 3 50 40 22 20 11 17 41 10.4 6.3 0.3 10 1 ASX400-063A04R 4 63 40 22 20 11 17 50 10.4 6.3 0.5 10 1 x: u ASX400-080B04R 4 80 50 27 29 - 38 60 12.4 7 0.9 10 2 K ASX400-100B05R 5 100 50 32 32 - 45 70 14.4 8 1.4 10 2 a a ASX400-125B06R 6 125 63 40 32 - 60 80 16.4 9 2.3 10 2 o ASX400-160C08R 8 160 63 40 29 - 56 100 16.4 9 3.6 10 3 ASX400-200C1 OR 10 200 63 60 32 - 135 160 25.7 14,22 6.3 10 4 ASX400-250C12R 12 250 63 60 32 - 180 210 25.7 14.22 10.8 10 4 ASX400-050A04R 4 50 40 22 20 11 17 41 10.4 6.3 0.3 10 1 ASX400-063A05R 5 63 40 22 20 11 17 50 10.4 6.3 0.5 10 1 ASX400-080B06R 6 80 50 27 29 - 38 60 12.4 7 0.9 10 2 K ASX400-100B07R 7 100 50 32 32 - 45 70 14.4 8 1.4 10 2 flj c 1 1 ASX400-125B08R 8 125 63 40 32 - 60 80 16.4 9 2.2 10 2 LL. ASX400-160C12R 12 160 63 40 29 - 56 100 16.4 9 3.5 10 3 ASX400-200C16R 16 200 63 60 32 - 135 160 25.7 14.22 6.2 10 4 ASX400-250C18R 18 250 63 60 32 - 180 210 25.7 14.22 10.7 10 4 ASX400-050A05R 5 50 40 22 20 11 17 41 10.4 6.3 0.3 10 1 ASX400-063A06R 6 63 40 22 20 11 17 50 10.4 6.3 0.5 10 1 -C o ASX400-080B08R 8 80 50 27 29 - 38 60 12.4 7 0.9 10 2 K u c ASX400-100B1 OR 10 100 50 32 32 - 45 70 14.4 8 1.4 10 2 LL ro ASX400-125B12R 12 125 63 40 32 - 60 80 16.4 9 2.1 10 2 5< LU ASX400-160C15R 15 160 63 40 29 - 56 100 16.4 9 3.4 10 3 ASX400-200C19R 19 200 63 60 32 - 135 160 25.7 14.22 6.2 10 4 ASX400-250C22R 22 250 63 60 32 - 180 210 25.7 14.22 10.5 10 4 WT : Tool Weight SPARE PARTS TECHNICAL DATA >0001 >R001
