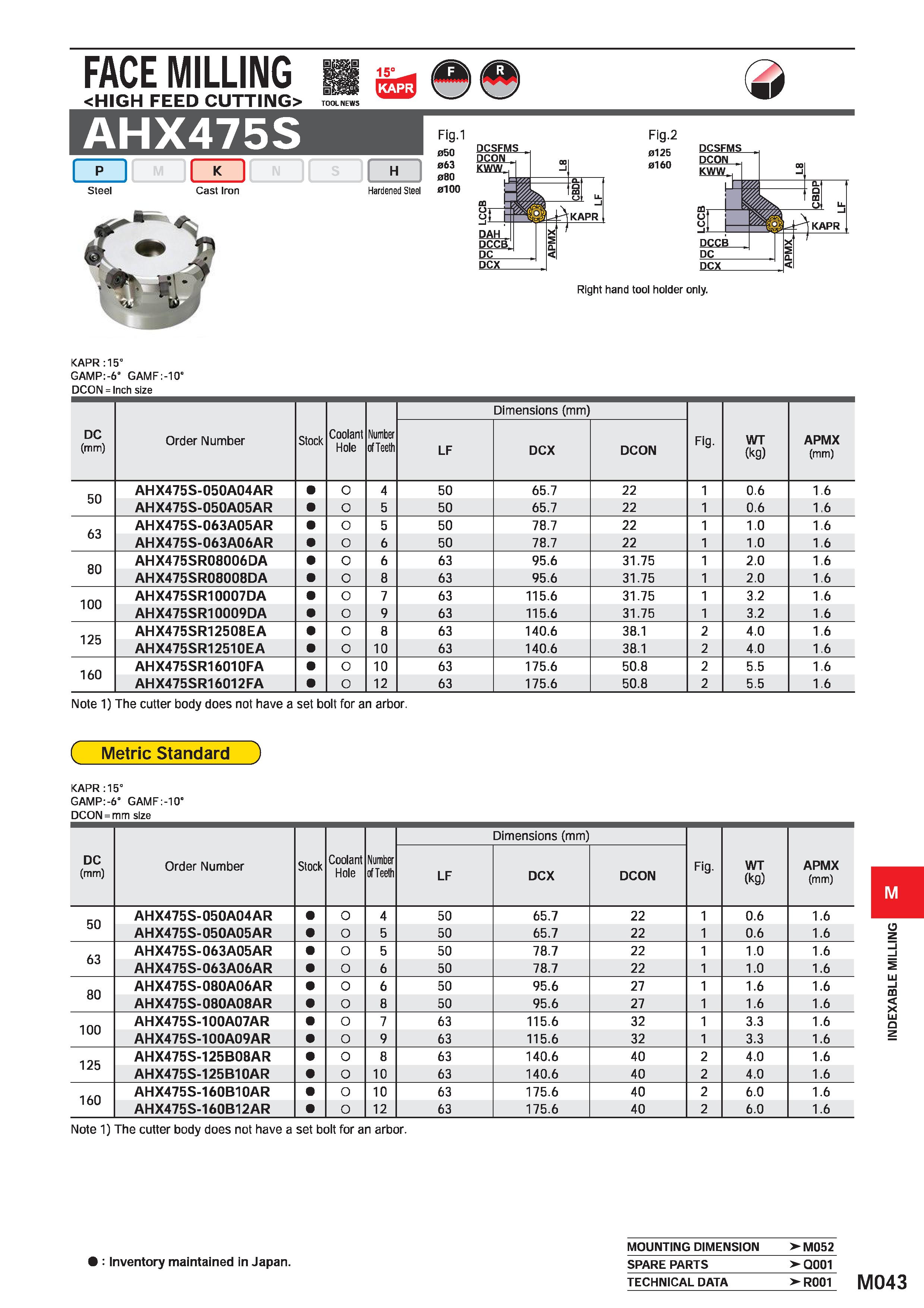

1199 Каталог MITSUBISHI 2020 Режущий инструмент Фрезы Резцы Сверла Пластины Стр.M043

Каталог MITSUBISHI 2020 Режущий инструмент для станков Стр. M043 1199 Lab2u

FACE MILLING HIGH FEED CUTTING> TOOL NEWS Fig.1 Q Fig.2 0125 0160 Right hand tool holder only. KAPR :15” GAMP:-6” GAMF:-10” DCON = Inch size DC (mm) Order Number Stock Coolant Hole Number ofTeeth Dimensions (mm) Fig- WT (kg) APMX (mm) LF DCX DCON 50 AHX475S-050A04AR O 4 50 65.7 22 1 0.6 1.6 AHX475S-050A05AR O 5 50 65.7 22 1 0.6 1.6 63 AHX475S-063A05AR O 5 50 78.7 22 1 1.0 1.6 AHX475S-063A06AR O 6 50 78.7 22 1 1.0 1.6 80 AHX475SR08006DA O 6 63 95.6 31.75 1 2.0 1.6 AHX475SR08008DA O 8 63 95.6 31.75 1 2.0 1.6 100 AHX475SR10007DA O 7 63 115.6 31.75 1 3.2 1.6 AHX475SR10009DA O 9 63 115.6 31.75 1 3.2 1.6 125 AHX475SR12508EA O 8 63 140.6 38.1 2 4.0 1.6 AHX475SR12510EA O 10 63 140.6 38.1 2 4.0 1.6 160 AHX475SR16010FA O 10 63 175.6 50.8 2 5.5 1.6 AHX475SR16012FA O 12 63 175.6 50.8 2 5.5 1.6 Note 1) The cutter body does not have a set bolt for an arbor. ( Metric Standard ) KAPR :15” GAMP:-6” GAMF:-10” DCON = mm size DC (mm) Order Number Stock Coolant Hole Number ofTeeth Dimensions (mm) Fig. WT (kg) APMX (mm) LF DCX DCON 50 AHX475S-050A04AR O 4 50 65.7 22 1 0.6 1.6 AHX475S-050A05AR O 5 50 65.7 22 1 0.6 1.6 63 AHX475S-063A05AR O 5 50 78.7 22 1 1.0 1.6 AHX475S-063A06AR O 6 50 78.7 22 1 1.0 1.6 80 AHX475S-080A06AR O 6 50 95.6 27 1 1.6 1.6 AHX475S-080A08AR O 8 50 95.6 27 1 1.6 1.6 100 AHX475S-100A07AR O 7 63 115.6 32 1 3.3 1.6 AHX475S-100A09AR O 9 63 115.6 32 1 3.3 1.6 125 AHX475S-125B08AR O 8 63 140.6 40 2 4.0 1.6 AHX475S-125B10AR O 10 63 140.6 40 2 4.0 1.6 160 AHX475S-160B10AR O 10 63 175.6 40 2 6.0 1.6 AHX475S-160B12AR O 12 63 175.6 40 2 6.0 1.6 Note 1) The cutter body does not have a set bolt for an arbor. AHX475S Hardened Steel Steel Cast Iron : Inventory maintained in Japan. MOUNTING DIMENSION >M052 SPARE PARTS > Q001 TECHNICAL DATA > R001 M043 INDEXABLE MILLING
