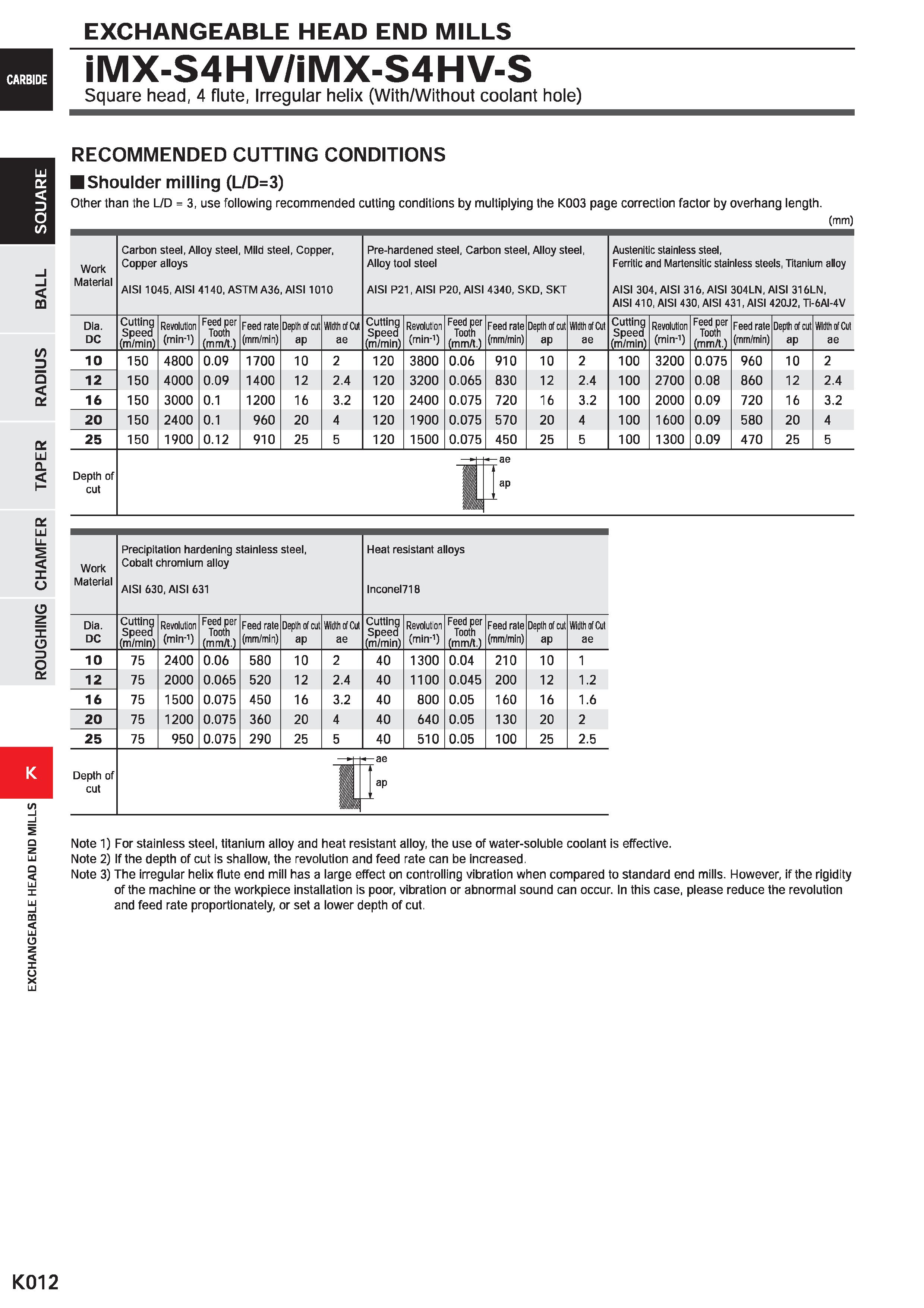

EXCHANGEABLE HEAD END MILLS iMX-S4HV/iMX-S4HV-S Square head, 4 flute, Irregular helix (With/Without coolant hole) RECOMMENDED CUTTING CONDITIONS Shoulder milling (L/D=3) Other than the L/D = 3, use following recommended cutting conditions by multiplying the K003 page correction factor by overhang length. (mm) m /> D O O' Ld Q. X o C3 O 3 o a. Work Material Carbon steel, Alloy steel, Mild steel, Copper, Copper alloys AISI 1045, AISI 4140, ASTM A36, AIS11010 Pre-hardened steel, Carbon steel, Alloy steel, Alloy tool steel AISI P21, AISI P20, AISI 4340, SKD, SKT Austenitic stainless steel, Ferritic and Martensitic stainless steels, Titanium alloy AISI 304, AISI 316, AISI 304LN, AISI 316LN, AISI 410, AISI 430, AISI 431, AISI 420J2, Ti-6AI-4V Dia. DC Cutting Speed (m/min) Revolution (min-1) Feed per Tooth (mm/t.) Feed rate (mm/min) Depth of cut ap Width of Cut ae Cutting Speed (m/min) Revolution (min-1) Feed per Tooth (mm/t.) Feed rate (mm/min) Depth of cut ap Width of Cut ae Cutting Speed (m/min) Revolution (min-1) Feed per Tooth (mm/t.) Feed rate (mm/min) Depth of cut ap Width of Cut ae 10 12 16 20 25 150 150 150 150 150 4800 4000 3000 2400 1900 0.09 0.09 0.1 0.1 0.12 1700 1400 1200 960 910 10 12 16 20 25 2 2.4 3.2 4 5 120 120 120 120 120 3800 3200 2400 1900 1500 0.06 0.065 0.075 0.075 0.075 910 830 720 570 450 10 12 16 20 25 2 2.4 3.2 4 5 100 100 100 100 100 3200 2700 2000 1600 1300 0.075 0.08 0.09 0.09 0.09 960 860 720 580 470 10 12 16 20 25 2 2.4 3.2 4 5 Depth of cut ae ap m 5 Q Z LU Ld X LU l GO LU 0 z 1 u X LU Work Material Precipitation hardening stainless steel, Cobalt chromium alloy AISI 630, AISI 631 Heat resistant alloys lnconel718 Dia. DC Cutting Speed (m/mln) Revolution (min-1) Feed per Tooth (mm/t.) Feed rate (mm/min) Depth of cut ap Width of Cut ae Cutting Speed (m/min) Revolution (min-1) Feed per Tooth (mm/t.) Feed rate (mm/min) Depth of cut ap Width of Cut ae 10 75 2400 0.06 580 10 2 40 1300 0.04 210 10 1 12 75 2000 0.065 520 12 2.4 40 1100 0.045 200 12 1.2 16 75 1500 0.075 450 16 3.2 40 800 0.05 160 16 1.6 20 75 1200 0.075 360 20 4 40 640 0.05 130 20 2 25 75 950 0.075 290 25 5 40 510 0.05 100 25 2.5 Depth of cut ae i ap Note 1) For stainless steel, titanium alloy and heat resistant alloy, the use of water-soluble coolant is effective. Note 2) If the depth of cut is shallow, the revolution and feed rate can be increased. Note 3) The irregular helix flute end mill has a large effect on controlling vibration when compared to standard end mills. However, if the rigidity of the machine or the workpiece installation is poor, vibration or abnormal sound can occur. In this case, please reduce the revolution and feed rate proportionately, or set a lower depth of cut, K012
