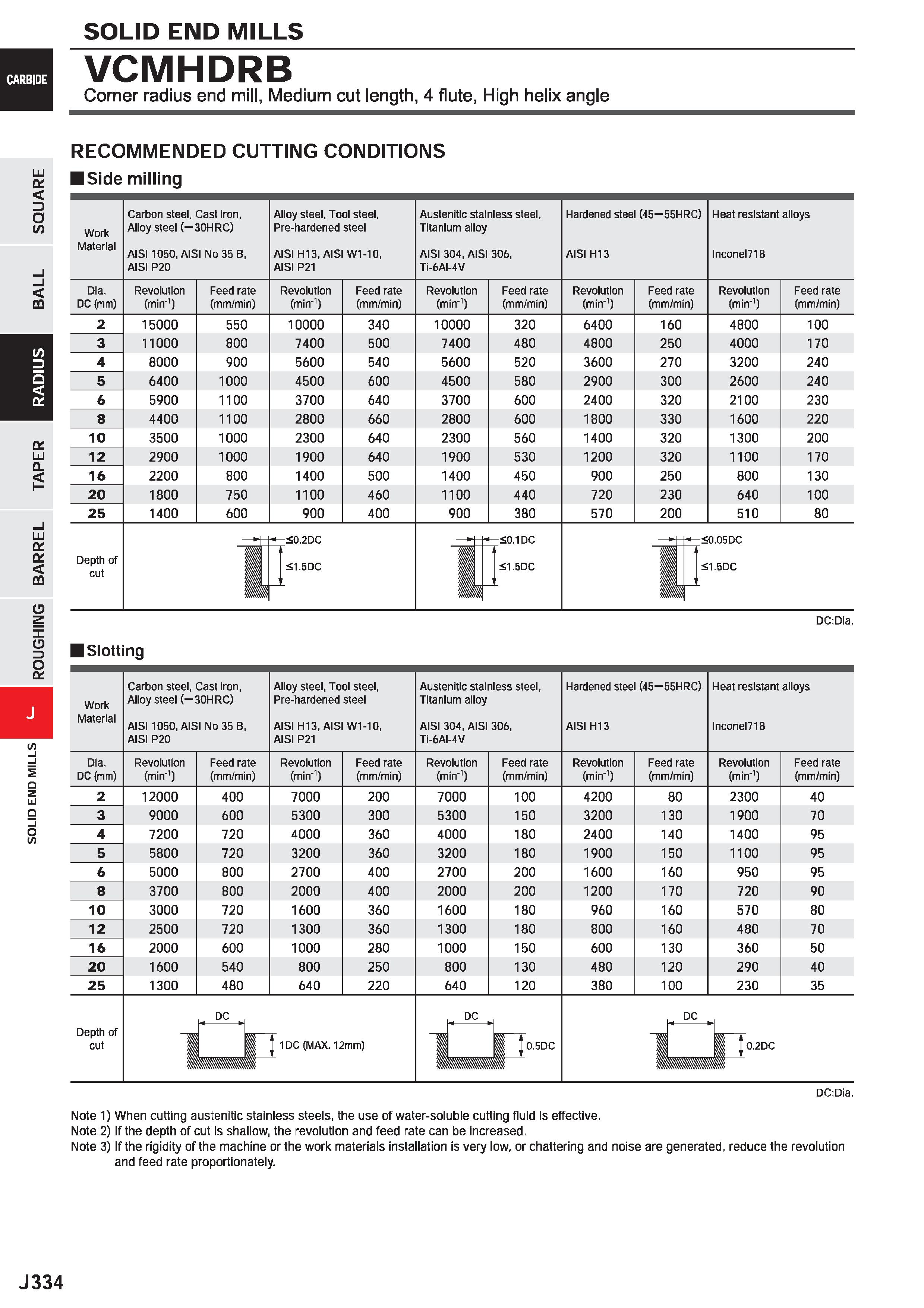

SOLID END MILLS VCMHDRB Corner radius end mill, Medium cut length, 4 flute, High helix angle LU D o /> m RECOMMENDED CUTTING CONDITIONS Side milling Work Material Carbon steel, Cast iron, Alloy steel (-30HRC) AIS11050, AISI No 35 B, AISI P20 Alloy steel, Tool steel, Pre-hardened steel AISI H13, AISI W1-10, AISI P21 Austenitic stainless steel, Titanium alloy AISI 304, AISI 306, Ti-6AI-4V Hardened steel (45 55HRC) AISI H13 Heat resistant alloys lnconel718 Dia. DC (mm) Revolution (min-1) Feed rate (mm/min) Revolution (min'1) Feed rate (mm/min) Revolution (min-1) Feed rate (mm/min) Revolution (min-1) Feed rate (mm/min) Revolution (min-1) Feed rate (mm/min) 2 15000 550 10000 340 10000 320 6400 160 4800 100 3 11000 800 7400 500 7400 480 4800 250 4000 170 4 8000 900 5600 540 5600 520 3600 270 3200 240 5 6400 1000 4500 600 4500 580 2900 300 2600 240 6 5900 1100 3700 640 3700 600 2400 320 2100 230 8 4400 1100 2800 660 2800 600 1800 330 1600 220 10 3500 1000 2300 640 2300 560 1400 320 1300 200 12 2900 1000 1900 640 1900 530 1200 320 1100 170 16 2200 800 1400 500 1400 450 900 250 800 130 20 1800 750 1100 460 1100 440 720 230 640 100 25 1400 600 900 400 900 380 570 200 510 80 Depth of cut o nr: 0.1 DC K 0.05 DC 1.5DC 1 I £1.5DC I r 1.5DC 1 £ LU Q. LU O' 0£ ca cd z I CD 3 o a. DC: Dia. I Slotting Work Material Carbon steel, Cast iron, Alloy steel (-30HRC) AIS11050, AISI No 35 B, AISI P20 Alloy steel, Tool steel, Pre-hardened steel AISI H13, AISI W1-10, AISI P21 Austenitic stainless steel, Titanium alloy AISI 304, AISI 306, Ti-6AI-4V Hardened steel (45 55HRC) AISI H13 Heat resistant alloys lnconel718 Dia. DC (mm) Revolution (min'1) Feed rate (mm/min) 2 12000 400 7000 200 7000 100 4200 80 2300 40 3 9000 600 5300 300 5300 150 3200 130 1900 70 4 7200 720 4000 360 4000 180 2400 140 1400 95 5 5800 720 3200 360 3200 180 1900 150 1100 95 6 5000 800 2700 400 2700 200 1600 160 950 95 8 3700 800 2000 400 2000 200 1200 170 720 90 10 3000 720 1600 360 1600 180 960 160 570 80 12 2500 720 1300 360 1300 180 800 160 480 70 16 2000 600 1000 280 1000 150 600 130 360 50 20 1600 540 800 250 800 130 480 120 290 40 25 1300 480 640 220 640 120 380 100 230 35 Depth of cut , DC H h DC H h DC r I mm) I I I LJ- DC (MAX. 1; H 1 0.2DC Ld in DC: Dia. Note 1) When cutting austenitic stainless steels, the use of water-soluble cutting fluid is effective. Note 2) If the depth of cut is shallow, the revolution and feed rate can be increased, Note 3) If the rigidity of the machine or the work materials installation is very low, or chattering and noise are generated, reduce the revolution and feed rate proportionately. J334
