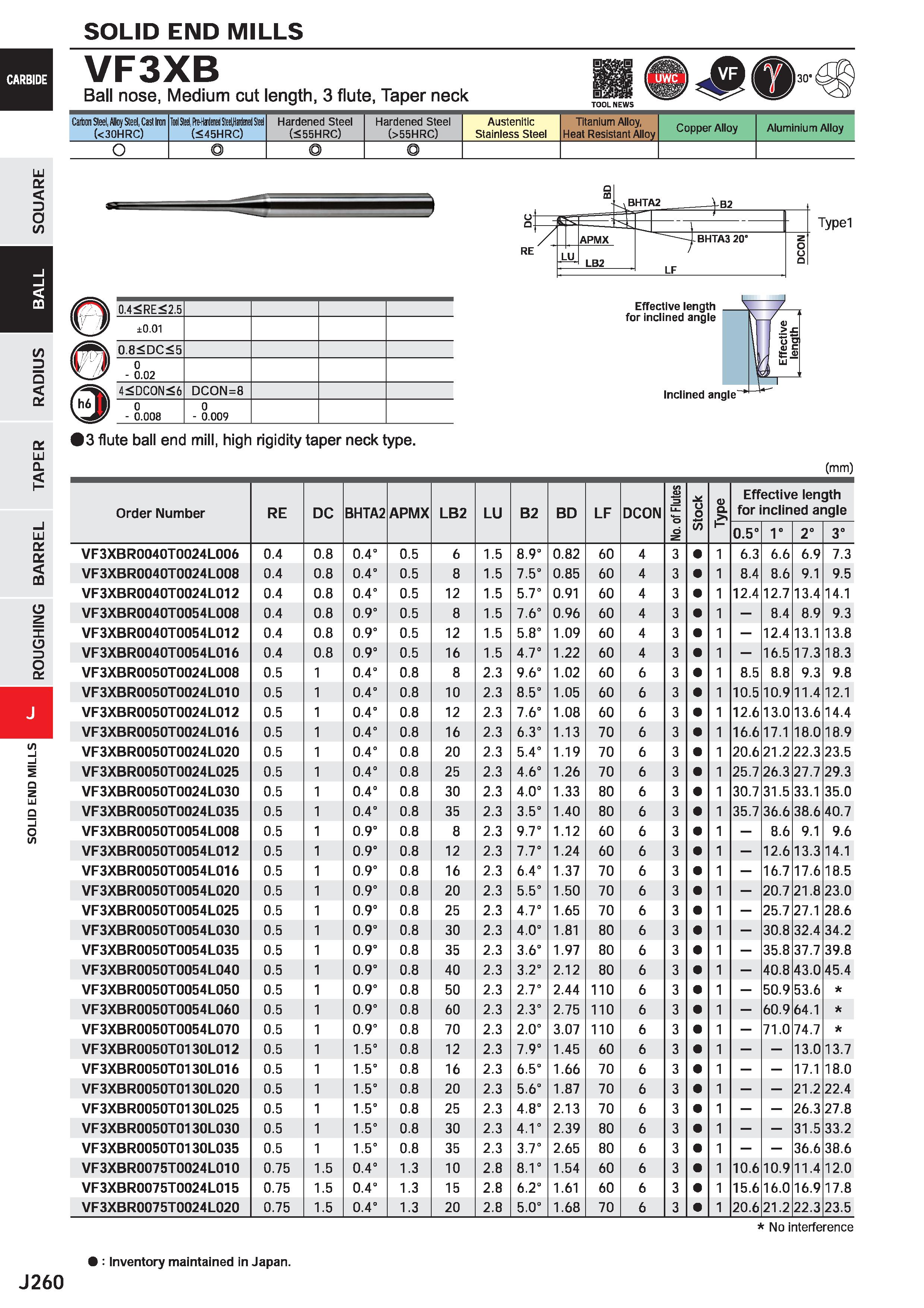

SOLID END MILLS VF3XB Ball nose, Medium cut length, 3 flute, Taper neck io& Carbon Steel, Alloy Steel, Casl Iron (<30HRC) ToolSteel, fte-Hadened Steel.Hardaied Steel (<45HRC) Hardened Steel (<55HRC) Hardened Steel (>55HRC) Austenitic Stainless Steel Titanium Alloy Heat Resistant Alloy Copper Alloy Aluminium Alloy o LU D o /> LU Q. LU O' 0£ ca cd z I CD 3 o a. RE LU > BHTA2 hB2 APMX LB2 BHTA3 20" LF Typel Effective length for Inclined angle Inclined angle >3 flute ball end mill, high rigidity taper neck type. (mm) Order Number RE DC BHTA2 APMX LB2 LU B2 BD LF DCON No. of Flutes Stock Type Effective length for inclined angle 0.5° 1° 2= 3° VF3XBR0040T0024L006 0.4 0.8 0.4° 0.5 6 1.5 8.9° 0.82 60 4 3 1 6.3 6.6 6.9 7.3 VF 3XBR0040T0024L008 0.4 0.8 0.4° 0.5 8 1.5 7.5° 0.85 60 4 3 1 8.4 8.6 9.1 9.5 VF3XBR0040T0024L012 0.4 0.8 0.4° 0.5 12 1.5 5.7° 0.91 60 4 3 1 12.4 12.7 13.4 14.1 VF3XBR0040T0054L008 0.4 0.8 0.9° 0.5 8 1.5 7.6° 0.96 60 4 3 1 8.4 8.9 9.3 VF3XBR0040T0054L012 0.4 0.8 0.9° 0.5 12 1.5 5.8° 1.09 60 4 3 1 12.4 13.1 13.8 VF3XBR0040T0054L016 0.4 0.8 0.9° 0.5 16 1.5 4.7° 1.22 60 4 3 1 16.5 17.3 18.3 VF 3XBR0050T0024L008 0.5 1 0.4° 0.8 8 2.3 9.6° 1.02 60 6 3 1 8.5 8.8 9.3 9.8 VF3XBR0050T0024L010 0.5 1 0.4° 0.8 10 2.3 8.5° 1.05 60 6 3 1 10.5 10.9 11.4 12.1 VF3XBR0050T0024L012 0.5 1 0.4° 0.8 12 2.3 7.6° 1.08 60 6 3 1 12.6 13.0 13.6 14.4 VF3XBR0050T0024L016 0.5 1 0.4° 0.8 16 2.3 6.3° 1.13 70 6 3 1 16.6 17.1 18.0 18.9 VF 3XBR0050T0024L020 0.5 1 0.4° 0.8 20 2.3 5.4° 1.19 70 6 3 1 20.6 21.2 22.3 23.5 VF 3XBR0050T0024L025 0.5 1 0.4° 0.8 25 2.3 4.6° 1.26 70 6 3 1 25.7 26.3 27.7 29.3 VF3XBR0050T0024L030 0.5 1 0.4° 0.8 30 2.3 4.0° 1.33 80 6 3 1 30.7 31.5 33.1 35.0 VF3XBR0050T0024L035 0.5 1 0.4° 0.8 35 2.3 3.5° 1.40 80 6 3 1 35.7 36.6 38.6 40.7 VF3XBR0050T0054L008 0.5 1 0.9° 0.8 8 2.3 9.7° 1.12 60 6 3 1 8.6 9.1 9.6 VF3XBR0050T0054L012 0.5 1 0.9° 0.8 12 2.3 7.7° 1.24 60 6 3 1 12.6 13.3 14.1 VF3XBR0050T0054L016 0.5 1 0.9° 0.8 16 2.3 6.4° 1.37 70 6 3 1 16.7 17.6 18.5 VF3XBR0050T0054L020 0.5 1 0.9° 0.8 20 2.3 5.5° 1.50 70 6 3 1 20.7 21.8 23.0 VF3XBR0050T0054L025 0.5 1 0.9° 0.8 25 2.3 4.7° 1.65 70 6 3 1 25.7 27.1 28.6 VF3XBR0050T0054L030 0.5 1 0.9° 0.8 30 2.3 4.0° 1.81 80 6 3 1 30.8 32.4 34.2 VF3XBR0050T0054L035 0.5 1 0.9° 0.8 35 2.3 3.6° 1.97 80 6 3 1 35.8 37.7 39.8 VF3XBR0050T0054L040 0.5 1 0.9° 0.8 40 2.3 3.2° 2.12 80 6 3 1 40.8 43.0 45.4 VF3XBR0050T0054L050 0.5 1 0.9° 0.8 50 2.3 2.7° 2.44 110 6 3 1 50.9 53.6 VF3XBR0050T0054L060 0.5 1 0.9° 0.8 60 2.3 2.3° 2.75 110 6 3 1 60.9 64.1 VF3XBR0050T0054L070 0.5 1 0.9° 0.8 70 2.3 2.0° 3.07 110 6 3 1 71.0 74.7 VF3XBR0050T0130L012 0.5 1 1.5° 0.8 12 2.3 7.9° 1.45 60 6 3 1 13.0 13.7 VF3XBR0050T0130L016 0.5 1 1.5° 0.8 16 2.3 6.5° 1.66 70 6 3 1 17.1 18.0 VF3XBR0050T0130L020 0.5 1 1.5° 0.8 20 2.3 5.6° 1.87 70 6 3 1 21.2 22.4 VF3XBR0050T0130L025 0.5 1 1.5° 0.8 25 2.3 4.8° 2.13 70 6 3 1 26.3 27.8 VF3XBR0050T0130L030 0.5 1 1.5° 0.8 30 2.3 4.1° 2.39 80 6 3 1 31.5 33.2 VF3XBR0050T0130L035 0.5 1 1.5° 0.8 35 2.3 3.7° 2.65 80 6 3 1 36.6 38.6 VF 3XBR0075T0024L010 0.75 1.5 0.4° 1.3 10 2.8 8.1° 1.54 60 6 3 1 10.6 10.9 11.4 12.0 VF 3XBR0075T0024L015 0.75 1.5 0.4° 1.3 15 2.8 6.2° 1.61 60 6 3 1 15.6 16.0 16.9 17.8 VF 3XBR0075T0024L020 0.75 1.5 0.4° 1.3 20 2.8 5.0° 1.68 70 6 3 1 20.6 21.2 22.3 23.5 UJ Q O in No interference : Inventory maintained in Japan. J260
