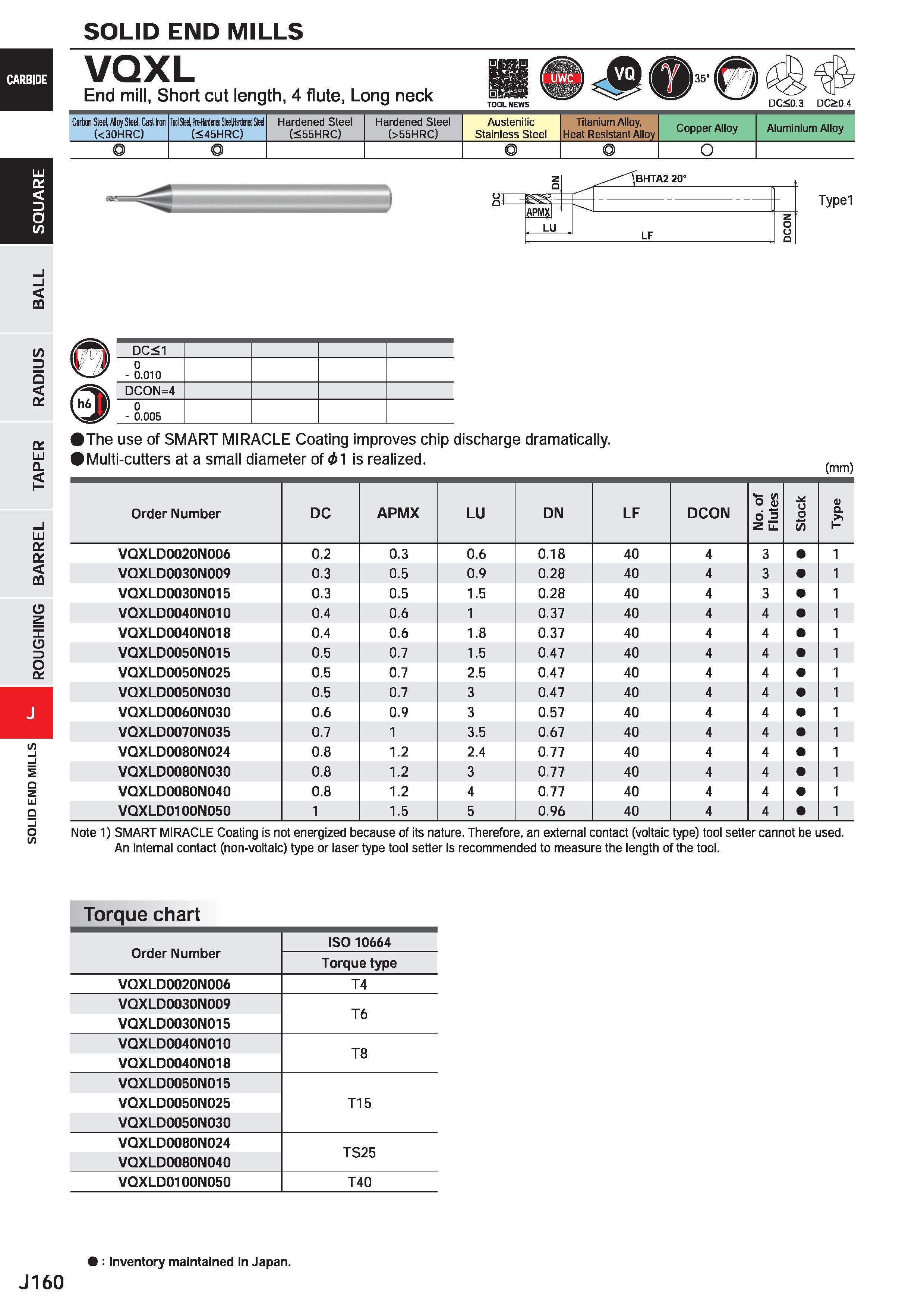

SOLID END MILLS VQXL End mill, Short cut length, 4 flute, Long neck DC 0.3 DC 0.4 Carbon Steel, Aloy Sted, Cast Iror (< 30HRC) Tool Seel MMml MftM Steel (<45HRC) Hardened Steel (<55HRC) Hardened Steel (>55HRC) Austenitic Stainless Steel Titanium Alloy, Heat Resistant Alloy Copper Alloy Aluminium Alloy o j Typel m £ Ld CL LU O' 0£ ca cd z I CD 3 o a. Hhe use of SMART MIRACLE Coating improves chip discharge dramatically. \ Multi-cutters at a small diameter of 01 is realized. (mm) Order Number DC APMX LU DN LF DCON No. of Flutes Stock Type VQXLD0020N006 0.2 0.3 0.6 0.18 40 4 3 1 VQXLD0030N009 0.3 0.5 0.9 0.28 40 4 3 1 VQXLD0030N015 0.3 0.5 1.5 0.28 40 4 3 1 VQXLD0040N010 0.4 0.6 1 0.37 40 4 4 1 VQXLD0040N018 0.4 0.6 1.8 0.37 40 4 4 1 VQXLD0050N015 0.5 0.7 1.5 0.47 40 4 4 1 VQXLD0050N025 0.5 0.7 2.5 0.47 40 4 4 1 VQXLD0050N030 0.5 0.7 3 0.47 40 4 4 1 VQXLD0060N030 0.6 0.9 3 0.57 40 4 4 1 VQXLD0070N035 0.7 1 3.5 0.67 40 4 4 1 VQXLD0080N024 0.8 1.2 2.4 0.77 40 4 4 1 VQXLD0080N030 0.8 1.2 3 0.77 40 4 4 1 VQXLD0080N040 0.8 1.2 4 0.77 40 4 4 1 VQXLD0100N050 1 1.5 5 0.96 40 4 4 1 Ld in Note 1) SMART MIRACLE Coating is not energized because of its nature. Therefore, an external contact (voltaic type) tool setter cannot be used. An internal contact (non-voltaic) type or laser type tool setter is recommended to measure the length of the tool. Torque chart Order Number ISO 10664 Torque type VQXLD0020N006 T4 VQXLD0030N009 T6 VQXLD0030N015 VQXLD0040N010 T8 VQXLD0040N018 VQXLD0050N015 VQXLD0050N025 T15 VQXLD0050N030 VQXLD0080N024 TS25 VQXLD0080N040 VQXLD0100N050 T40 : Inventory maintained in Japan. J160
