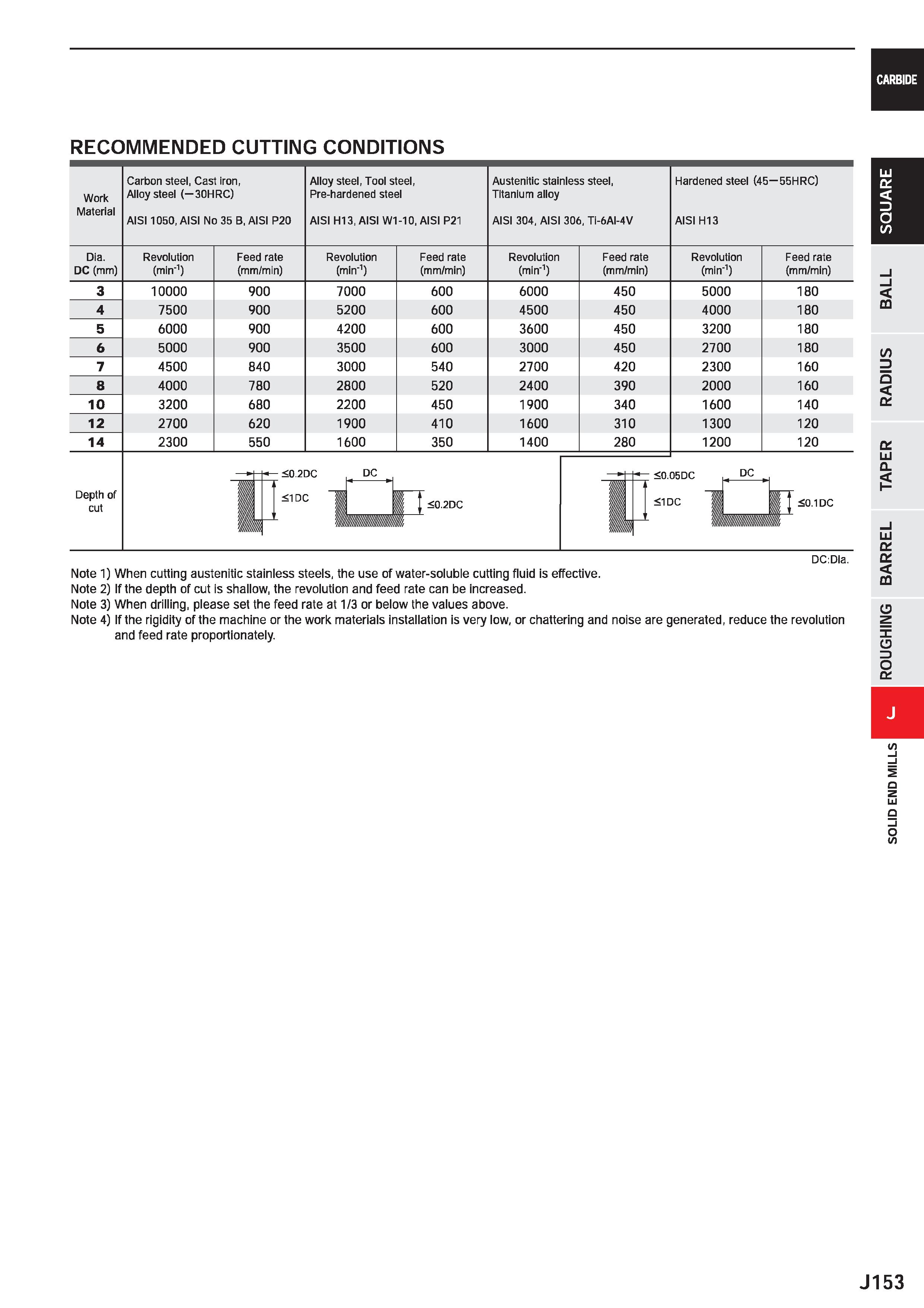

CARBIDE RECOMMENDED CUTTING CONDITIONS Work Carbon steel, Cast iron, Alloy steel (-30HRC) Alloy steel, Tool steel, Pre-hardened steel Austenitic stainless steel, Titanium alloy Hardened steel (45-55HRC) Material AIS11050, AISI No 35 B, AISI P20 AISI H13, AISI W1-10, AISI P21 AISI 304, AISI 306, Ti-6AI-4V AISI H13 Dia. DC (mm) Revolution (min'1) Feed rate (mm/min) 3 10000 900 7000 600 6000 450 5000 180 4 7500 900 5200 600 4500 450 4000 180 5 6000 900 4200 600 3600 450 3200 180 6 5000 900 3500 600 3000 450 2700 180 7 4500 840 3000 540 2700 420 2300 160 8 4000 780 2800 520 2400 390 2000 160 10 3200 680 2200 450 1900 340 1600 140 12 2700 620 1900 410 1600 310 1300 120 14 2300 550 1600 350 1400 280 1200 120 m /> 2 Q cc cc l±j a. LU cc cc m 3 o DC Depth of cut 0.2DC 10C DC 0.2DC £0.1 DC DC: Dia. Note 1) When cutting austenitic stainless steels, the use of water-soluble cutting fluid is effective. Note 2) If the depth of cut is shallow, the revolution and feed rate can be increased. Note 3) When drilling, please set the feed rate at 1/3 or below the values above. Note 4) If the rigidity of the machine or the work materials installation is very low, or chattering and noise are generated, reduce the revolution and feed rate proportionately. o in J153
