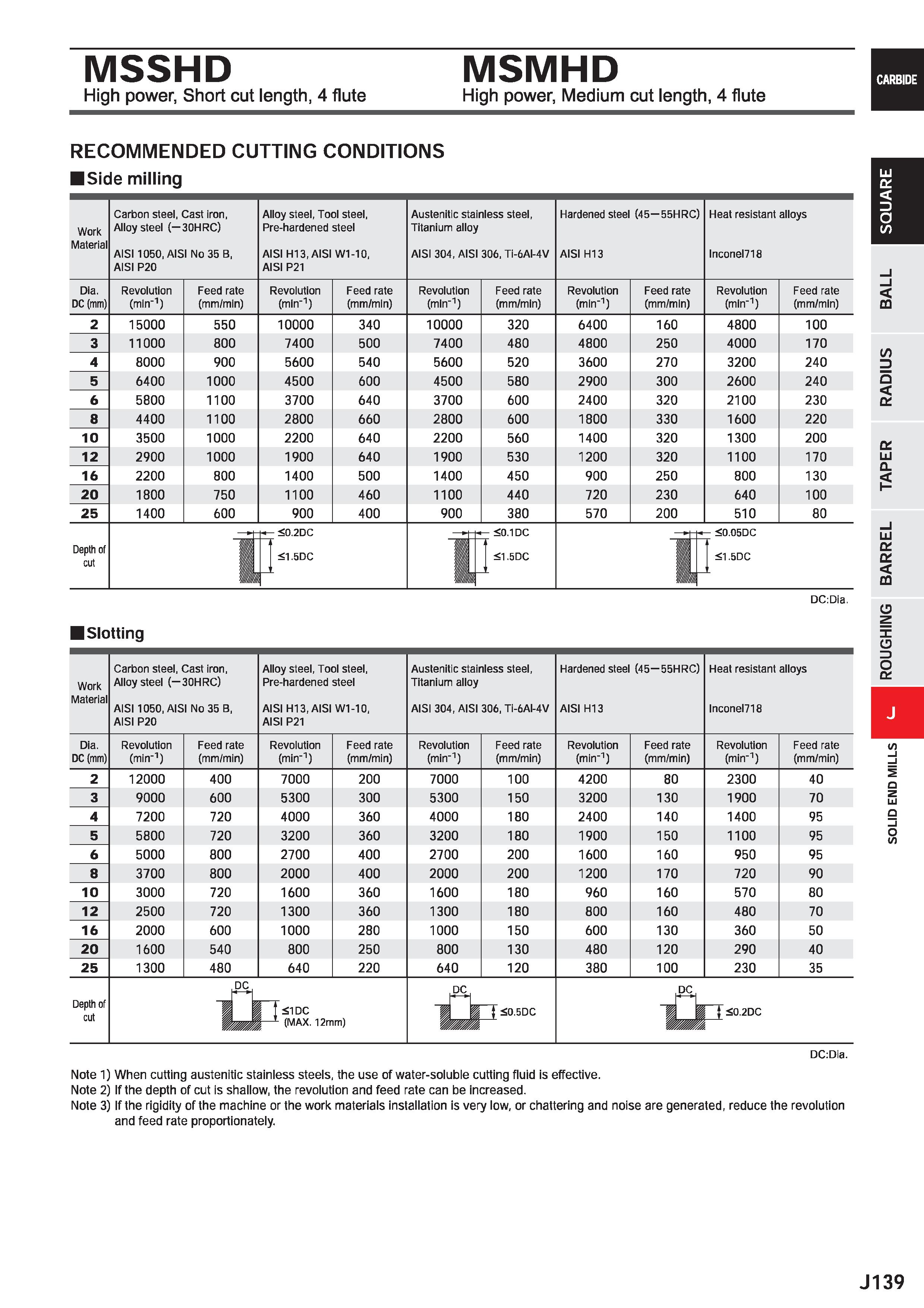

MSSHD High power, Short cut length, 4 flute MSMHD High power, Medium cut length, 4 flute RECOMMENDED CUTTING CONDITIONS Side milling Work Material Carbon steel, Cast iron, Alloy steel (-30HRC) AIS11050, AISI No 35 B, AISI P20 Alloy steel, Tool steel, Pre-hardened steel AISI H13, AISI W1-10, AISI P21 Austenitic stainless steel, Titanium alloy AISI 304, AISI 306, Ti-6AI-4V Hardened steel (45 55HRC) AISI H13 Heat resistant alloys lnconel718 Dia. DC (mm) Revolution (min'1) Feed rate (mm/min) Revolution (min'1) Feed rate (mm/min) Revolution (min'1) Feed rate (mm/min) Revolution (min'1) Feed rate (mm/min) Revolution (min'1) Feed rate (mm/min) m /> 2 Q DC DC LlI a. LU DC DC m 3 o DC. 10 12 16 20 25 15000 11000 8000 6400 5800 4400 3500 2900 2200 1800 1400 550 800 900 1000 1100 1100 1000 1000 800 750 600 10000 7400 5600 4500 3700 2800 2200 1900 1400 1100 900 340 500 540 600 640 660 640 640 500 460 400 10000 7400 5600 4500 3700 2800 2200 1900 1400 1100 900 320 480 520 580 600 600 560 530 450 440 380 6400 4800 3600 2900 2400 1800 1400 1200 900 720 570 160 250 270 300 320 330 320 320 250 230 200 4800 4000 3200 2600 2100 1600 1300 1100 800 640 510 100 170 240 240 230 220 200 170 130 100 80 Depth of cut 0.2DC 1.5DC 0.1 DC 1.5DC 0.05DC 1.5DC DC:Dia I Slotting Work Material Carbon steel, Cast iron, Alloy steel (-30HRC) AIS11050, AISI No 35 B, AISI P20 Alloy steel, Tool steel, Pre-hardened steel AISI H13, AISI W1-10, AISI P21 Austenitic stainless steel, Titanium alloy AISI 304, AISI 306, Ti-6AI-4V Hardened steel (45-55HRC) AISI H13 Heat resistant alloys lnconel718 Dia. Revolution Feed rate Revolution Feed rate Revolution Feed rate Revolution Feed rate Revolution Feed rate DC (mm) (min-1) (mm/min) (min-1) (mm/min) (min"1) (mm/min) (min"1) (mm/min) (min'1) (mm/min) 2 12000 400 7000 200 7000 100 4200 80 2300 40 3 9000 600 5300 300 5300 150 3200 130 1900 70 4 7200 720 4000 360 4000 180 2400 140 1400 95 5 5800 720 3200 360 3200 180 1900 150 1100 95 6 5000 800 2700 400 2700 200 1600 160 950 95 8 3700 800 2000 400 2000 200 1200 170 720 90 10 3000 720 1600 360 1600 180 960 160 570 80 12 2500 720 1300 360 1300 180 800 160 480 70 16 2000 600 1000 280 1000 150 600 130 360 50 20 1600 540 800 250 800 130 480 120 290 40 25 1300 480 640 220 640 120 380 100 230 35 Depth of cut DC n Dc j 1 (MAX. 12mm) DC J 0.5DC DC T 0 2DC o in DC:Dia. Note 1) When cutting austenitic stainless steels, the use of water-soluble cutting fluid is effective. Note 2) If the depth of cut is shallow, the revolution and feed rate can be increased. Note 3) If the rigidity of the machine or the work materials installation is very low, or chattering and noise are generated, reduce the revolution and feed rate proportionately. J139
