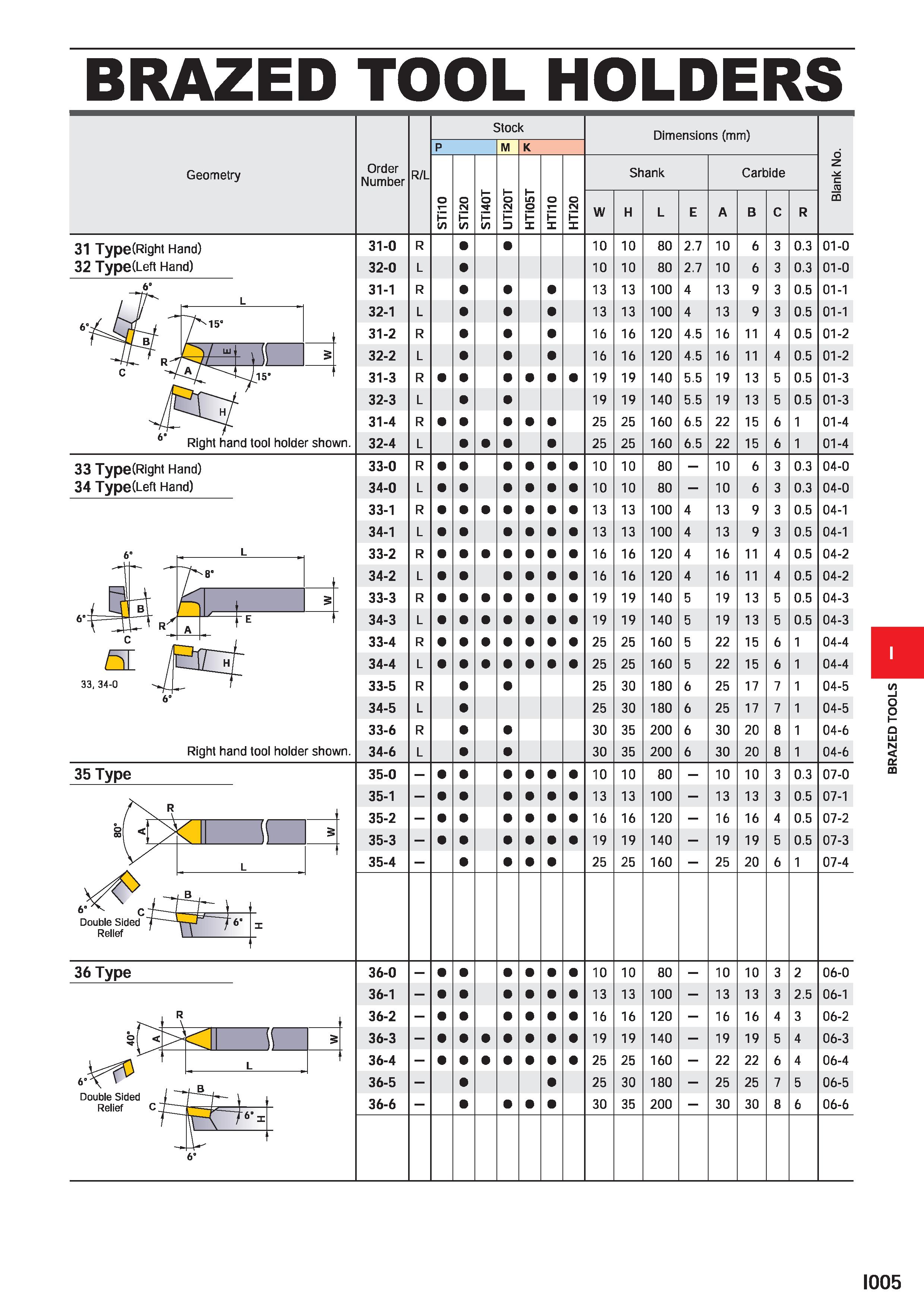

BRAZED TOOL HOLDERS Geometry 31 Type(Right Hand) 32 Type(Left Hand) Order Number R/L Stock Dimensions (mm) Blank No. P M K STi10 o CN H STi40T H H HTi05T HTi10 HTi20 Shank Carbide W H L E A B C R 31-0 R 10 10 80 2.7 10 6 3 0.3 01-0 32-0 L 10 10 80 2.7 10 6 3 0.3 01-0 31-1 R 13 13 100 4 13 9 3 0.5 01-1 32-1 L 13 13 100 4 13 9 3 0.5 01-1 31-2 R 16 16 120 4.5 16 11 4 0.5 01-2 32-2 L 16 16 120 4.5 16 11 4 0.5 01-2 31-3 R 19 19 140 5.5 19 13 5 0.5 01-3 32-3 L 19 19 140 5.5 19 13 5 0.5 01-3 31-4 R 25 25 160 6.5 22 15 6 1 01-4 32-4 L 25 25 160 6.5 22 15 6 1 01-4 33-0 R 10 10 80 10 6 3 0.3 04-0 34-0 L 10 10 80 - 10 6 3 0.3 04-0 33-1 R 13 13 100 4 13 9 3 0.5 04-1 34-1 L 13 13 100 4 13 9 3 0.5 04-1 33-2 R 16 16 120 4 16 11 4 0.5 04-2 34-2 L 16 16 120 4 16 11 4 0.5 04-2 33-3 R 19 19 140 5 19 13 5 0.5 04-3 34-3 L 19 19 140 5 19 13 5 0.5 04-3 33-4 R 25 25 160 5 22 15 6 1 04-4 34-4 L 25 25 160 5 22 15 6 1 04-4 33-5 R 25 30 180 6 25 17 7 1 04-5 34-5 L 25 30 180 6 25 17 7 1 04-5 33-6 R 30 35 200 6 30 20 8 1 04-6 34-6 L 30 35 200 6 30 20 8 1 04-6 35-0 10 10 80 10 10 3 0.3 07-0 35-1 - 13 13 100 - 13 13 3 0.5 07-1 35-2 - 16 16 120 - 16 16 4 0.5 07-2 35-3 - 19 19 140 - 19 19 5 0.5 07-3 35-4 - 25 25 160 - 25 20 6 1 07-4 36-0 - 10 10 80 - 10 10 3 2 06-0 36-1 - 13 13 100 - 13 13 3 2.5 06-1 36-2 - 16 16 120 - 16 16 4 3 06-2 36-3 - 19 19 140 - 19 19 5 4 06-3 36-4 - 25 25 160 - 22 22 6 4 06-4 36-5 - 25 30 180 - 25 25 7 5 06-5 36-6 - 30 35 200 - 30 30 8 6 06-6 33 Type(Right Hand) 34 Type(Left Hand) Right hand tool holder shown. 35 Type 36 Type I005 BRAZED TOOLS
