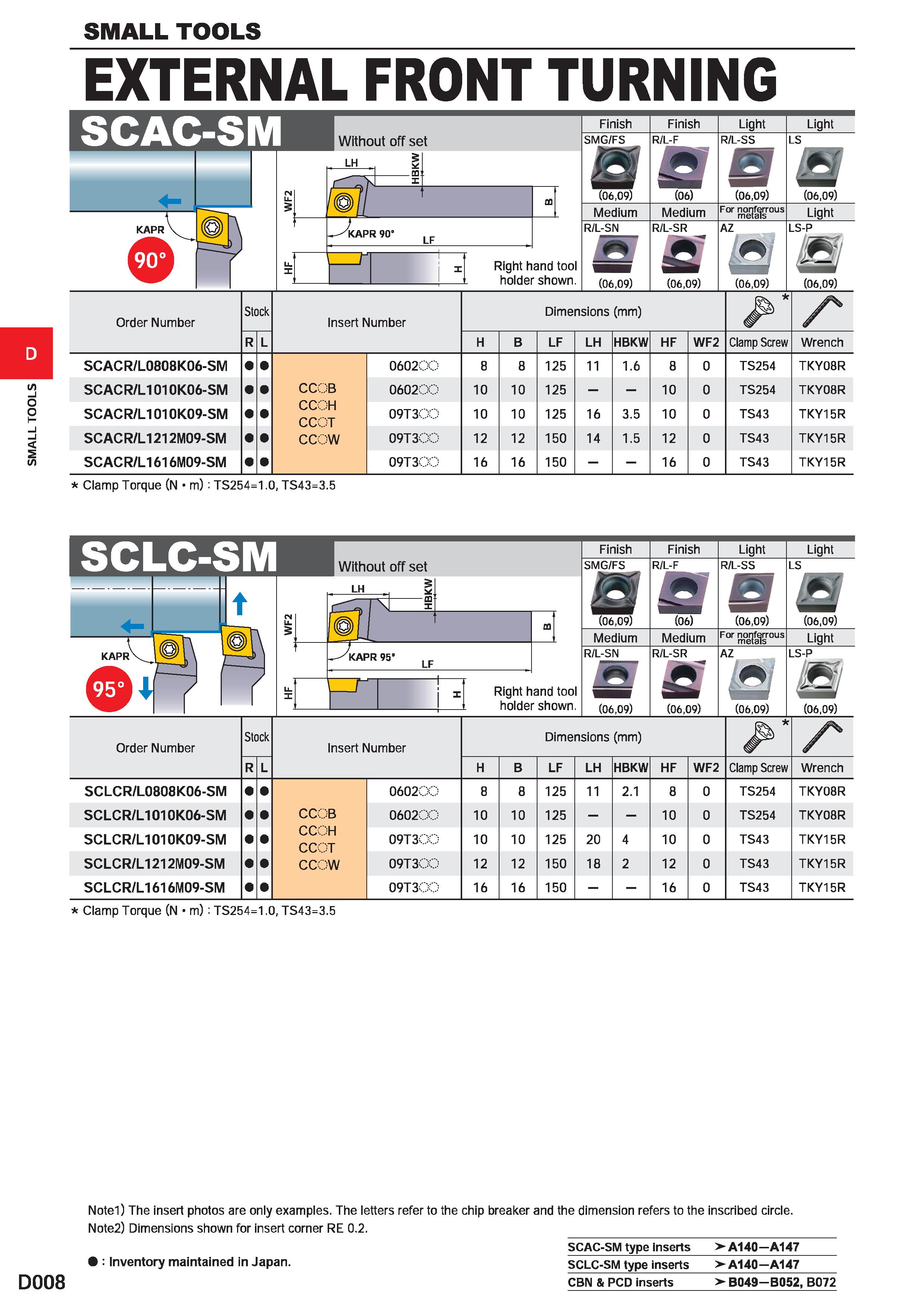

SMALL TOOLS D D008 SMALL TOOLS EXTERNAL FRONT TURNING SCAC-SM KAPR v3 > Without off set LH KAPR 90" LF T Right hand tool holder shown. Finish SMG/FS (06,09) Medium R/L-SN (06,09) Finish R/L-F (06) Medium R/L-SR a (06,09) Light R/L-SS (06,09) For nonferrous metals AZ (06,09) Light LS (06,09) Light LS-P (06,09) Order Number Stock Insert Number Dimensions (mm) 7s R L H B LF LH HBKW HF WF2 Clamp Screw Wrench SCACR/L0808K06-SM 0602.:.. 8 8 125 11 1.6 8 0 TS254 TKY08R SCACR/L1010K06-SM CC.'B 060200 10 10 125 - - 10 0 TS254 TKY08R SCACR/L1010K09-SM CC H CC. T 09T300 10 10 125 16 3.5 10 0 TS43 TKY15R SCACR/L1212M09-SM CCOW 09T300 12 12 150 14 1.5 12 0 TS43 TKY15R SCACR/L1616M09-SM 09T300 16 16 150 - - 16 0 TS43 TKY15R Clamp Torque (N m): TS254=1.0, TS43=3.5 SCLC-SM Without off set LH KAPR 95’ LF Right hand tool holder shown. Finish Finish Light Light SMG/FS R/L-F R/L-SS LS 0 o 3 (06,09) (06) (06,09) (06,09) Medium Medium For nonferrous metals Light R/L-SN w R/L-SR AZ (B LS-P ’ ‘ fMHTf 1 . (06,09) (06,09) (06,09) (06,09) Order Number Stock Insert Number Dimensions (mm) 7s R L H B LF LH HBKW HF WF2 Clamp Screw Wrench SC LC R/L0808K06-SM 0602.:.. 8 8 125 11 2.1 8 0 TS254 TKY08R SCLCR/L1010K06-SM CC.'B 0602 :. 10 10 125 - - 10 0 TS254 TKY08R SCLCR/L1010K09-SM CC H CC. T 09T300 10 10 125 20 4 10 0 TS43 TKY15R SCLCR/L1212M09-SM CCOW 09T300 12 12 150 18 2 12 0 TS43 TKY15R SCLCR/L1616M09-SM 09T300 16 16 150 - - 16 0 TS43 TKY15R Clamp Torque (N m): TS254=1.0, TS43=3.5 Notel) The insert photos are only examples. The letters refer to the chip breaker and the dimension refers to the inscribed circle. Note2) Dimensions shown for insert corner RE 0.2. SCAC-SM type inserts > A140 -A147 : Inventory maintained in Japan. SCLC-SM type inserts > A140-A147 CBN & PCD inserts > B049-B052, B072
