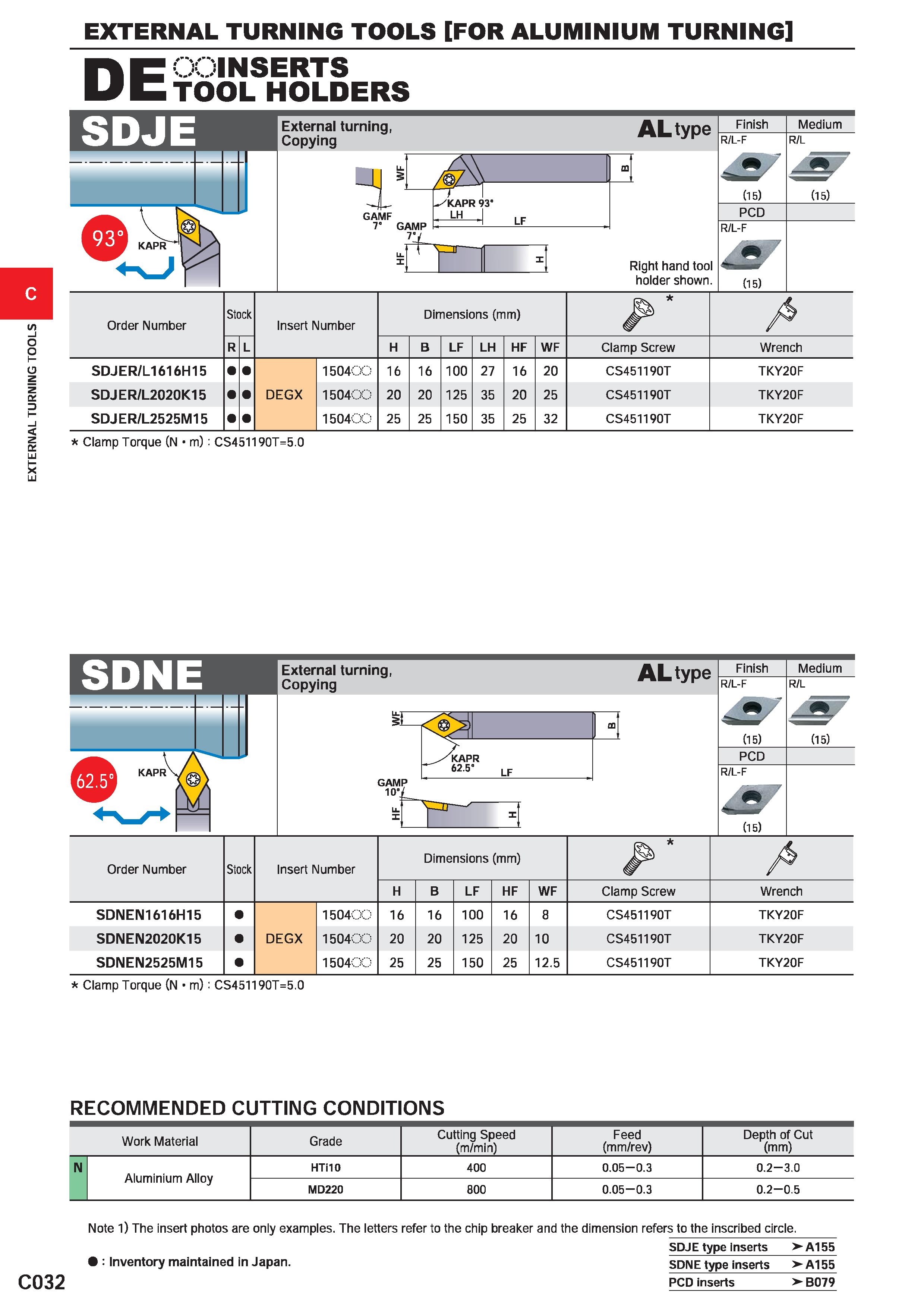

EXTERNAL TURNING TOOLS EXTERNAL TURNING TOOLS FOR ALUMINIUM TURNING DE INSERTS TOOL HOLDERS External turning, Copying ALtype GAMF 7" GAMP 7 -k'KAPR 93" LH LF Right hand tool holder shown. Finish R/L-F (15) PCD R/L-F (15) Medium Order Number Stock Insert Number Dimensions (mm) A R L H B LF LH HF WF Clamp Screw Wrench SDJER/L1616H15 1504: : 16 16 100 27 16 20 CS451190T TKY20F SDJER/L2020K15 DEGX 150400 20 20 125 35 20 25 CS451190T TKY20F SDJER/L2525M15 150400 25 25 150 35 25 32 CS451190T TKY20F Clamp Torque (N m) : CS451190T=5.0 External turning, Copying ALtype Finish R/L-F PCD R/L-F (15) Medium Order Number Stock Insert Number Dimensions (mm) H B LF HF WF Clamp Screw Wrench SDNEN1616H15 150400 16 16 100 16 8 CS451190T TKY20F SDNEN2020K15 DEGX 150400 20 20 125 20 10 CS451190T TKY20F SDNEN2525M15 150400 25 25 150 25 12.5 CS451190T TKY20F Clamp Torque (N m): CS451190T=5.0 RECOMMENDED CUTTING CONDITIONS Work Material Grade Cutting Speed (m/min) Feed (mm/rev) Depth of Cut (mm) N Aluminium Alloy HTi10 400 0.05-0.3 0.2 3.0 MD220 800 0.05-0.3 0.2 0.5 Note 1) The insert photos are only examples. The letters refer to the chip breaker and the dimension refers to the inscribed circle. SDJE type Inserts >A155 : Inventory maintained in Japan. SDNE type inserts >-A155 C032 PCD inserts > B079
