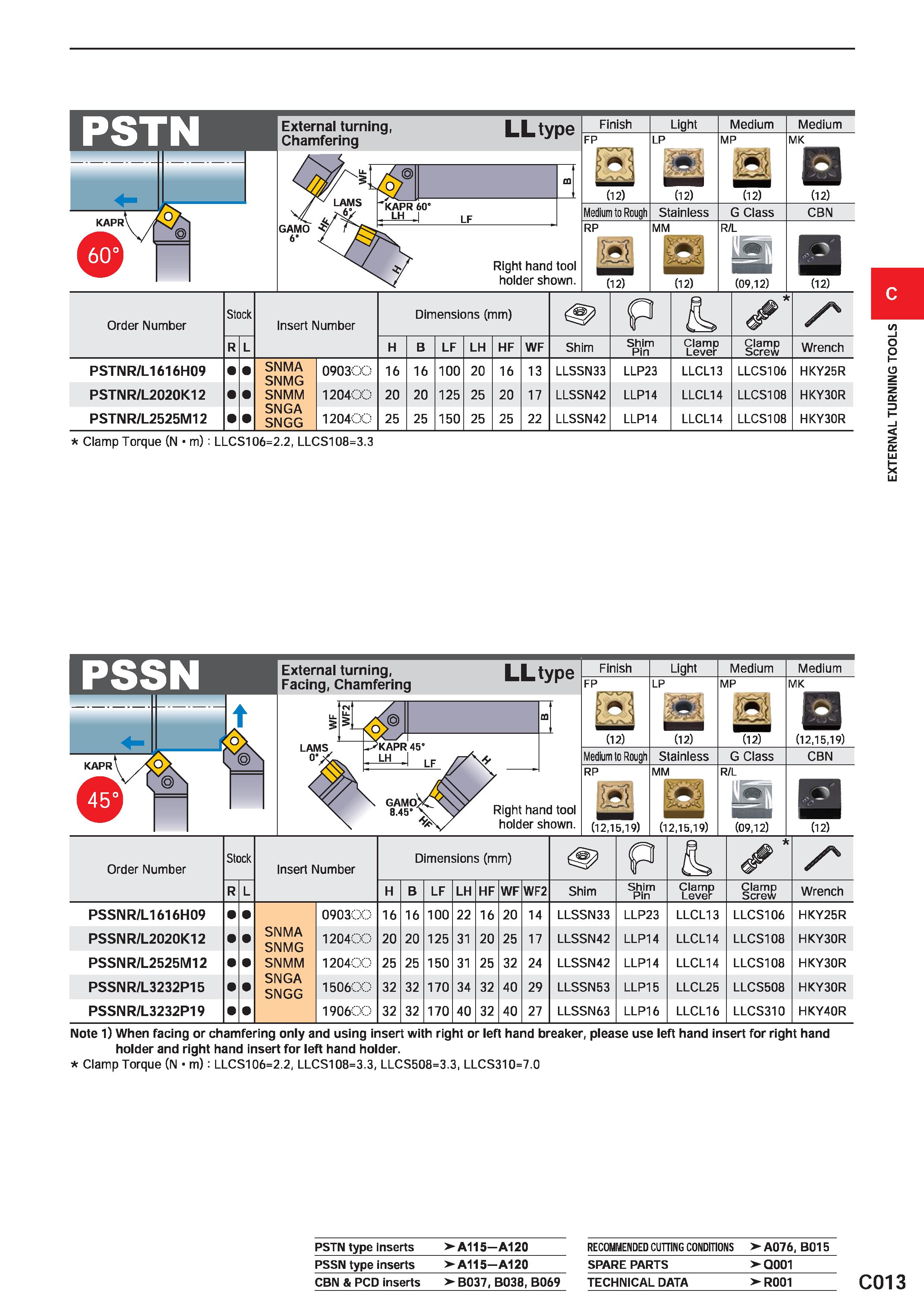

External turning, Chamfering LLtype GAMO Right hand tool holder shown. Finish Medium lo Rough RP (12) Light LP Stainless MM (12) Medium MP (12) G Class R/L (09,12) Medium MK (12) CBN (12) Order Number Stock Insert Number Dimensions (mm) P 1 R L H B LF LH HF WF Shim Shim Pin Clamp Lever Clamp Screw Wrench PSTNR/L1616H09 SNMA SNMG SNMM SNGA SNGG 090300 16 16 100 20 16 13 LLSSN33 LLP23 LLCL13 LLCS106 HKY25R PSTNR/L2020K12 120400 20 20 125 25 20 17 LLSSN42 LLP14 LLCL14 LLCS108 HKY30R PSTNR/L2525M12 120400 25 25 150 25 25 22 LLSSN42 LLP14 LLCL14 LLCS108 HKY30R Clamp Torque (N m): LLCS106=2.2, LLCS108=3.3 External turning, Facing, Chamfering LLtype Right hand tool holder shown. Finish Medium to Rough RP m (12,15,19) Light LP (12) Stainless MM (12,15,19) Medium MP (12) G Class R/L (09,12) Medium MK (12,15,19) CBN (12) Order Number Stock Insert Number Dimensions (mm) P iL R L H B LF LH HF WF WF2 Shim Shim Pin Clamp Lever Clamp Screw Wrench PSSNR/L1616H09 0903. ; 16 16 100 22 16 20 14 LLSSN33 LLP23 LLCL13 LLCS106 HKY25R PSSN R/L2020K12 SNMA SNMG 120400 20 20 125 31 20 25 17 LLSSN42 LLP14 LLCL14 LLCS108 HKY30R PSSN R/L2525M12 SNMM 1204. :. 25 25 150 31 25 32 24 LLSSN42 LLP14 LLCL14 LLCS108 HKY30R PSSN R/L3232P15 SNGA SNGG 1506. : 32 32 170 34 32 40 29 LLSSN53 LLP15 LLCL25 LLCS508 HKY30R PSSN R/L3232P19 1906 :; 32 32 170 40 32 40 27 LLSSN63 LLP16 LLCL16 LLCS310 HKY40R Note 1) When facing or chamfering only and using insert with right or left hand breaker, please use left hand insert for right hand holder and right hand insert for left hand holder. Clamp Torque (N m): LLCS106=2.2, LLCS108=3.3, LLCS508=3.3, LLCS310=7.0 PSTN type Inserts >A115- -A120 RECOMMENDED CUTTING CONDITIONS >A076, B015 PSSN type inserts >-A115- -A120 SPARE PARTS >-Q001 CBN & PCD inserts > B037, B038, B069 TECHNICAL DATA > R001
