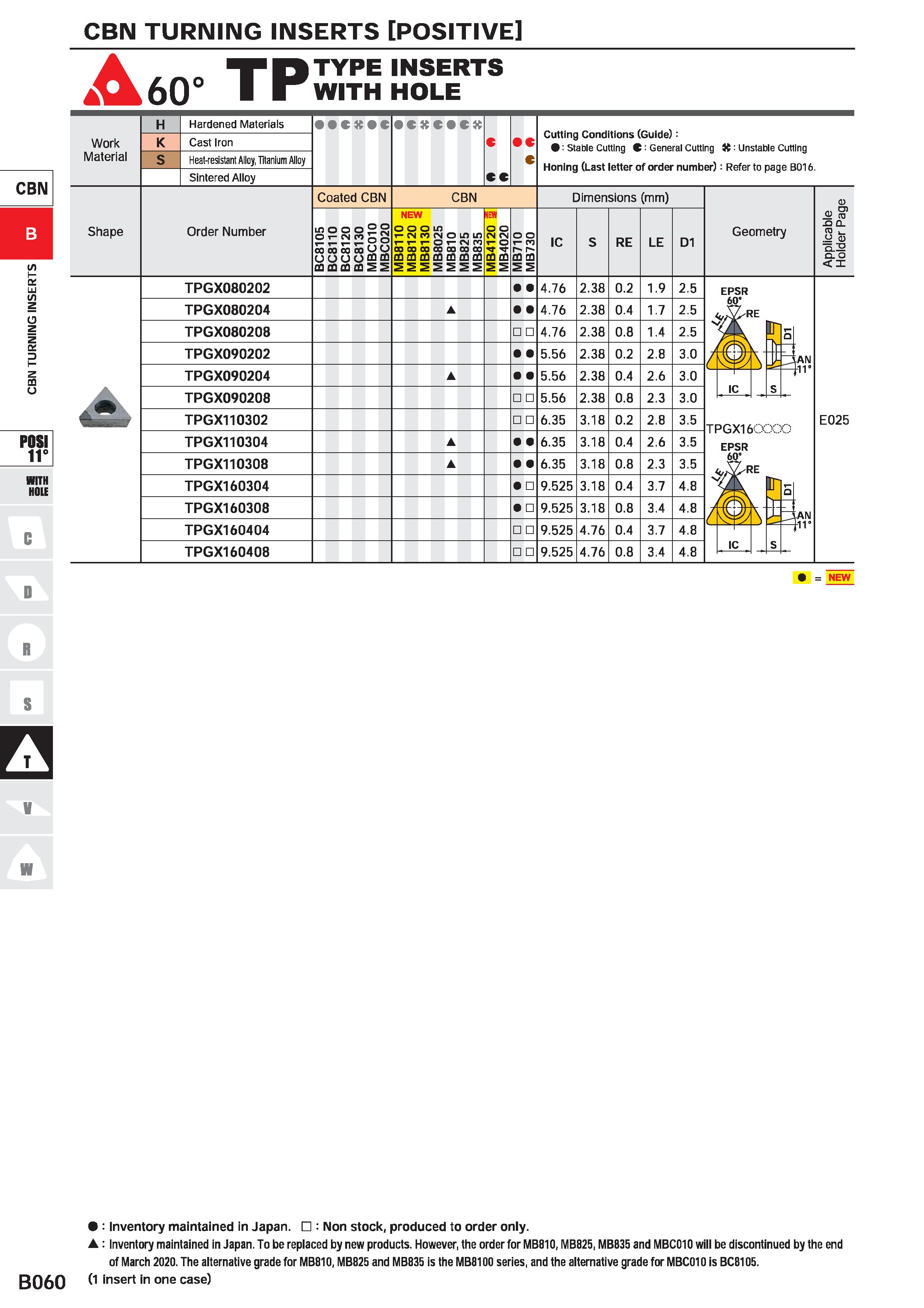

CBN TURNING INSERTS POSITIVE A60° TP TYPE INSERTS WITH HOLE CBN Work Material Hardened Materials Cast Iron Heat-resistant Alloy, Titanium Alloy Sintered Alloy C CC c c Cutting Conditions (Guide): : Stable Cutting C: General Cutting W: Unstable Cutting Honing (Last letter of order number): Refer to page B016. Shape Coated CBN CBN Dimensions (mm) Order Number m o ° S °££JJ2oo co y y oooomm 00 00 00 OQ 5 5 NEW o m rlNniNOUim rrrOrINn 00 00 00 00 00 00 00 CQ CQ CQ CQ OQ CQ CQ m N CSJ r- O ' r OQ CQ SS r- ro r- r OQ OQ SS IC RE LE D1 Geometry D -Q CL ro y d Q O = O Q£ D CQ O POSI 11° WITH H01E TPGX080202 4.76 2.38 0.2 1.9 2.5 TPGX080204 4.76 2.38 0.4 1.7 2.5 EPSR 60‘ ..Sl'RE TPGX080208 4.76 2.38 0.8 1.4 2.5 TPGX090202 5.56 2.38 0.2 2.8 3.0 TPGX090204 5.56 2.38 0.4 2.6 3.0 TPGX090208 5.56 2.38 0.8 2.3 3.0 m /fisK IC TPGX110302 6.35 3.18 0.2 2.8 3.5 TPGX110304 6.35 3.18 0.4 2.6 3.5 TPGX16CXJOO E025 TPGX110308 6.35 3.18 0.8 2.3 3.5 EPSR 60' ,52-re TPGX160304 9.525 3.18 0.4 3.7 4.8 TPGX160308 9.525 3.18 0.8 3.4 4.8 TPGX160404 9.525 4.76 0.4 3.7 4.8 TPGX160408 9.525 4.76 0.8 3.4 4.8 m /kSyH IC = NEW R S V w : Inventory maintained in Japan. : Non stock, produced to order only. : Inventory maintained in Japan. To be replaced by new products. However, the order for MB810, MB825, MB835 and MBC010 will be discontinued by the end of March 2020. The alternative grade for MB810, MB825 and MB835 is the MB8100 series, and the alternative grade for MBC010 is BC8105. B060 (1 insert in one case)
