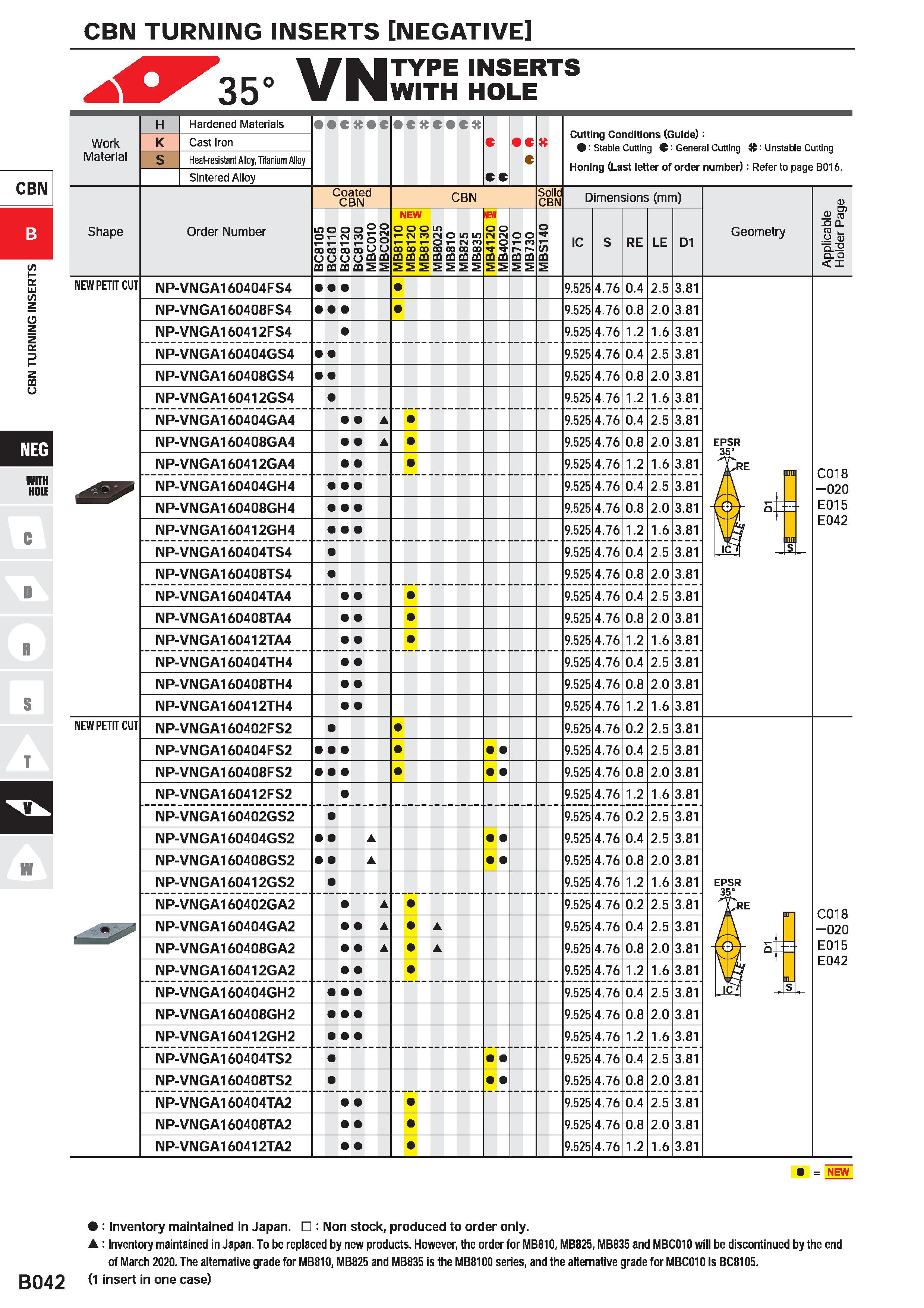

CBN TURNING INSERTS NEGATIVE VN TYPE INSERTS WITH HOLE Work Material CBN Hardened Materials Cast Iron Heat-resistant Alloy, Titanium Alloy Sintered Alloy C cc c c Cutting Conditions (Guide): : Stable Cutting C: General Cutting : Unstable Cutting Honing (Last letter of order number): Refer to page B016. Coated CBN CBN Solid CBN Dimensions (mm) Shape Order Number BC8105 BC8110 BC8120 BC8130 MBC010 IMBC020 I NEW o r- N "5 00 00 00 CO Q co sss 11) CM o 00 m s MB810 MB825 I MB835 I MB4120 I MB4020 MB710 MB730 I MBS140 IC S RE LE D1 NP-VNGA160404FS4 9.525 4.76 0.4 2.5 3.81 NP-VNGA160408FS4 9.525 4.76 0.8 2.0 3.81 NP-VNGA160412FS4 9.525 4.76 1.2 1.6 3.81 NP-VNGA160404GS4 9.525 4.76 0.4 2.5 3.81 NP-VNGA160408GS4 9.525 4.76 0.8 2.0 3.81 NP-VNGA160412GS4 9.525 4.76 1.2 1.6 3.81 NP-VNGA160404GA4 9.525 4.76 0.4 2.5 3.81 NP-VNGA160408GA4 9.525 4.76 0.8 2.0 3.81 NP-VNGA160412GA4 9.525 4.76 1.2 1.6 3.81 NP-VNGA160404GH4 9.525 4.76 0.4 2.5 3.81 NP-VNGA160408GH4 9.525 4.76 0.8 2.0 3.81 NP-VNGA160412GH4 9.525 4.76 1.2 1.6 3.81 NP-VNGA160404TS4 9.525 4.76 0.4 2.5 3.81 NP-VNGA160408TS4 9.525 4.76 0.8 2.0 3.81 NP-VNGA160404TA4 9.525 4.76 0.4 2.5 3.81 NP-VNGA160408TA4 9.525 4.76 0.8 2.0 3.81 NP-VNGA160412TA4 9.525 4.76 1.2 1.6 3.81 NP-VNGA160404TH4 9.525 4.76 0.4 2.5 3.81 NP-VNGA160408TH4 9.525 4.76 0.8 2.0 3.81 NP-VNGA160412TH4 9.525 4.76 1.2 1.6 3.81 NP-VNGA160402FS2 9.525 4.76 0.2 2.5 3.81 NP-VNGA160404FS2 9.525 4.76 0.4 2.5 3.81 NP-VNGA160408FS2 9.525 4.76 0.8 2.0 3.81 NP-VNGA160412FS2 9.525 4.76 1.2 1.6 3.81 NP-VNGA160402GS2 9.525 4.76 0.2 2.5 3.81 NP-VNGA160404GS2 9.525 4.76 0.4 2.5 3.81 NP-VNGA160408GS2 9.525 4.76 0.8 2.0 3.81 NP-VNGA160412GS2 9.525 4.76 1.2 1.6 3.81 NP-VNGA160402GA2 9.525 4.76 0.2 2.5 3.81 NP-VNGA160404GA2 9.525 4.76 0.4 2.5 3.81 NP-VNGA160408GA2 9.525 4.76 0.8 2.0 3.81 NP-VNGA160412GA2 9.525 4.76 1.2 1.6 3.81 NP-VNGA160404GH2 9.525 4.76 0.4 2.5 3.81 NP-VNGA160408GH2 9.525 4.76 0.8 2.0 3.81 NP-VNGA160412GH2 9.525 4.76 1.2 1.6 3.81 NP-VNGA160404TS2 9.525 4.76 0.4 2.5 3.81 NP-VNGA160408TS2 9.525 4.76 0.8 2.0 3.81 NP-VNGA160404TA2 9.525 4.76 0.4 2.5 3.81 NP-VNGA160408TA2 9.525 4.76 0.8 2.0 3.81 NP-VNGA160412TA2 9.525 4.76 1.2 1.6 3.81 Geometry 0 .22 -Q Q. ro y 5j ‘a. 2 Q. O I NEW PETIT CUT C3 CD O WITH HOLE c D R S T C018 -020 E015 E042 NEW PETIT CUT C018 -020 E015 E042 = NEW : Inventory maintained in Japan. : Non stock, produced to order only. : Inventory maintained in Japan. To be replaced by new products. However, the order for MB810, MB825, MB835 and MBC010 will be discontinued by the end of March 2020. The alternative grade for MB810, MB825 and MB835 is the MB8100 series, and the alternative grade for MBC010 is BC8105. B042 (1 insert in one case)
