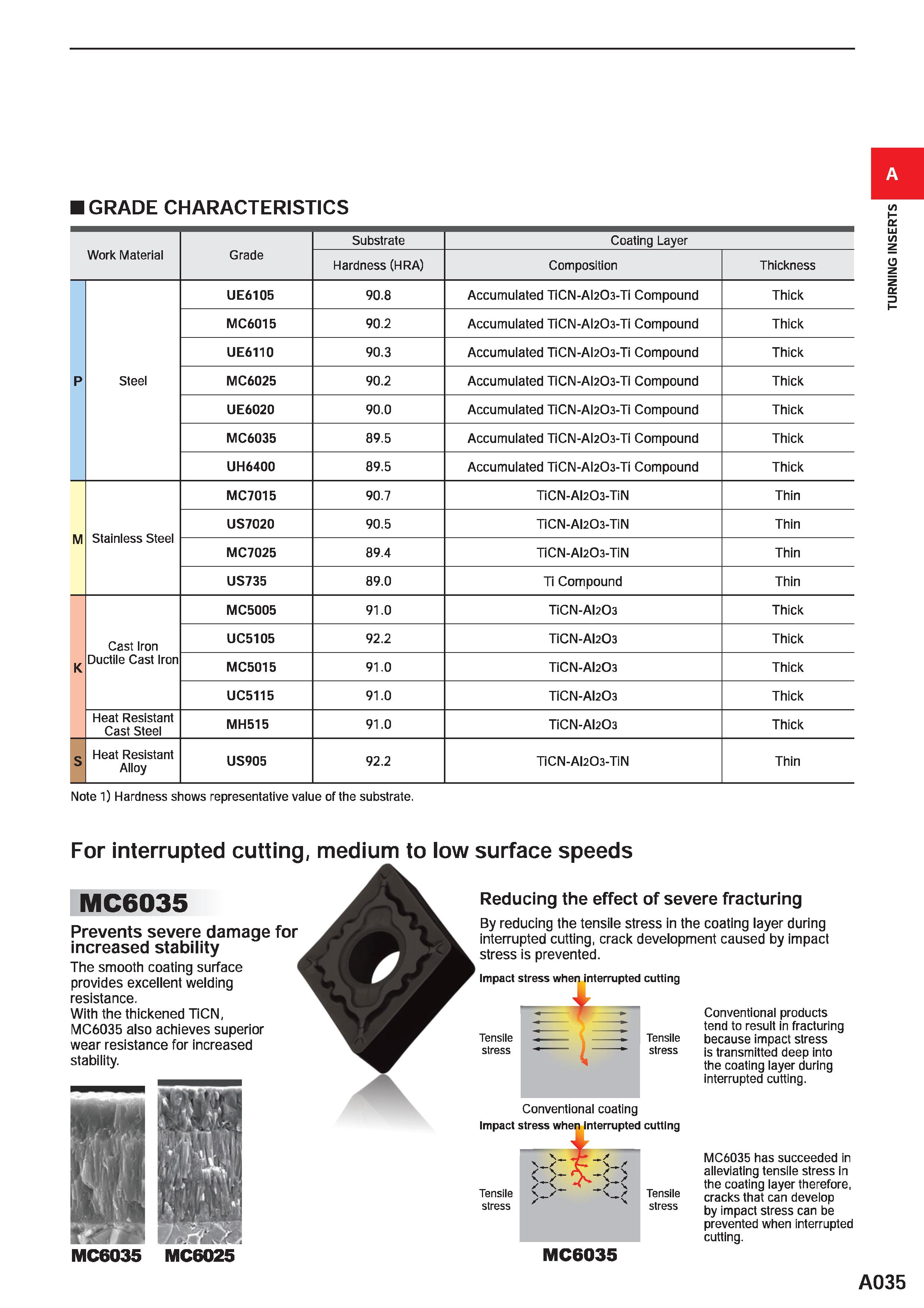

GRADE CHARACTERISTICS Substrate Coating Layer Work Material Grade Hardness (HRA) Composition Thickness UE6105 90.8 Accumulated TiCN-Al203-Ti Compound Thick MC6015 90.2 Accumulated TiCN-Al203-Ti Compound Thick UE6110 90.3 Accumulated TiCN-Al203-Ti Compound Thick p Steel MC6025 90.2 Accumulated TiCN-Al203-Ti Compound Thick UE6020 90.0 Accumulated TiCN-Al203-Ti Compound Thick MC6035 89.5 Accumulated TiCN-Al203-Ti Compound Thick UH6400 89.5 Accumulated TiCN-Al203-Ti Compound Thick MC7015 90.7 TiCN-Al203-TiN Thin M Stainless Steel US7020 90.5 TiCN-Al203-TiN Thin MC7025 89.4 TiCN-Al203-TiN Thin US735 89.0 Ti Compound Thin MC5005 91.0 TiCN-Al203 Thick Cast Iron UC5105 92.2 TiCN-Al203 Thick K Ductile Cast Iron MC5015 91.0 TiCN-Al203 Thick UC5115 91.0 TiCN-Al203 Thick Heat Resistant Cast Steel MH515 91.0 TiCN-Al203 Thick s Heat Resistant Alloy US905 92.2 TiCN-Al203-TiN Thin Note 1) Hardness shows representative value of the substrate. Conventional coating Impact stress when interrupted cutting - - f V \ . < K.\ y '' V Tensile stress / \ MC6035 Tensile stress For interrupted cutting, medium to low surface speeds Reducing the effect of severe fracturing By reducing the tensile stress in the coating layer during interrupted cutting, crack development caused by impact stress is prevented. Impact stress when interrupted cutting Tensile stress en int Tensile stress Conventional products tend to result in fracturing because impact stress is transmitted deep into the coating layer during interrupted cutting. MC6035 MC6025 MC6035 has succeeded in alleviating tensile stress in the coating layer therefore, cracks that can develop by impact stress can be prevented when interrupted cutting. MC6035 Prevents severe damage for increased stability The smooth coating surface provides excellent welding resistance. With the thickened TiCN, MC6035 also achieves superior wear resistance for increased stability. A035 TURNING INSERTS
