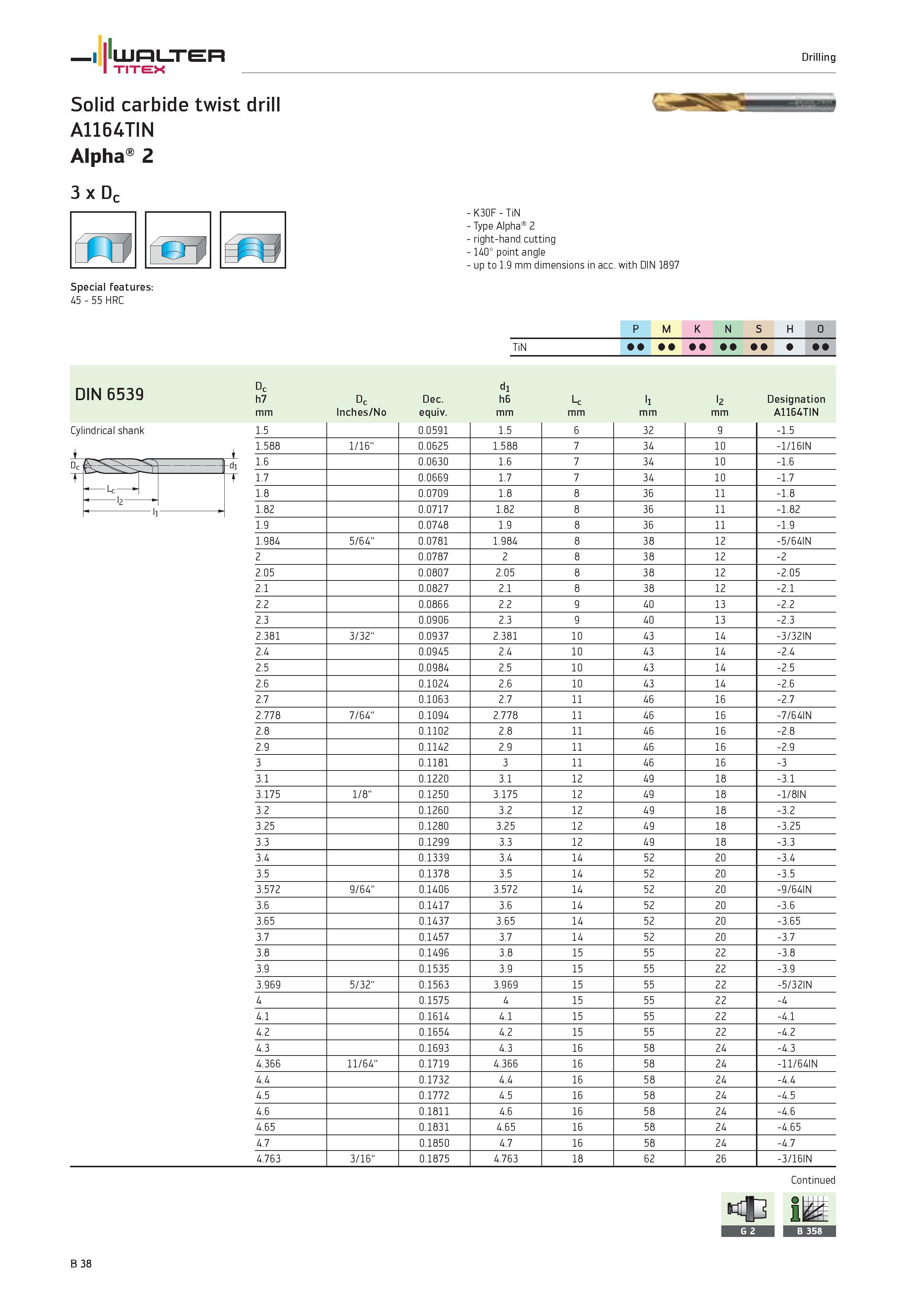

Drilling Solid carbide twist drill WALTER TITEX A1164TIN Alpha 2 3 x Dc Special features 45 55 HRC Cylindrical shank i Dc K30F TiN Type Alpha 2 right-hand cutting 140° point angle up to 1.9 mm dimensions in acc. with DIN 1897 P M K N S H O DIN 6539 Dc h7 Dc Dec. di h6 Lc li l2 Designation mm Inches/No equiv. mm A1164TIN 1.5 0.0591 1.5 6 32 9 -1.5 1.588 1/16" 0.0625 1.588 7 34 10 -1/16IN 1.6 0.0630 1.6 7 34 10 -1.6 1.7 0.0669 1.7 7 34 10 -1.7 1.8 0.0709 1.8 8 36 11 -1.8 1.82 0.0717 1.82 8 36 11 -1.82 1.9 0.0748 1.9 8 36 11 -1.9 1.984 5/64" 0.0781 1.984 8 38 12 -5/64IN 2 0.0787 2 8 38 12 -2 2.05 0.0807 2.05 8 38 12 -2.05 2.1 0.0827 2.1 8 38 12 -2.1 2.2 0.0866 2.2 9 40 13 -2.2 2.3 0.0906 2.3 9 40 13 -2.3 2.381 3/32" 0.0937 2.381 10 43 14 -3/32IN 2.4 0.0945 2.4 10 43 14 -2.4 2.5 0.0984 2.5 10 43 14 -2.5 2.6 0.1024 2.6 10 43 14 -2.6 2.7 0.1063 2.7 11 46 16 -2.7 2.778 7/64" 0.1094 2.778 11 46 16 -7/64IN 2.8 0.1102 2.8 11 46 16 -2.8 2.9 0.1142 2.9 11 46 16 -2.9 3 0.1181 3 11 46 16 -3 3.1 0.1220 3.1 12 49 18 -3.1 3.175 1/8" 0.1250 3.175 12 49 18 -1/8IN 3.2 0.1260 3.2 12 49 18 -3.2 3.25 0.1280 3.25 12 49 18 -3.25 3.3 0.1299 3.3 12 49 18 -3.3 3.4 0.1339 3.4 14 52 20 -3.4 3.5 0.1378 3.5 14 52 20 -3.5 3.572 9/64" 0.1406 3.572 14 52 20 -9/64IN 3.6 0.1417 3.6 14 52 20 -3.6 3.65 0.1437 3.65 14 52 20 -3.65 3.7 0.1457 3.7 14 52 20 -3.7 3.8 0.1496 3.8 15 55 22 -3.8 3.9 0.1535 3.9 15 55 22 -3.9 3.969 5/32" 0.1563 3.969 15 55 22 -5/32IN 4 0.1575 4 15 55 22 -4 4.1 0.1614 4.1 15 55 22 -4.1 4.2 0.1654 4.2 15 55 22 -4.2 4.3 0.1693 4.3 16 58 24 -4.3 4.366 11/64" 0.1719 4.366 16 58 24 -11/64IN 4.4 0.1732 4.4 16 58 24 -4.4 4.5 0.1772 4.5 16 58 24 -4.5 4.6 0.1811 4.6 16 58 24 -4.6 4.65 0.1831 4.65 16 58 24 -4.65 4.7 0.1850 4.7 16 58 24 -4.7 4.763 3/16" 0.1875 4.763 18 62 26 -3/16IN -L, B 38
