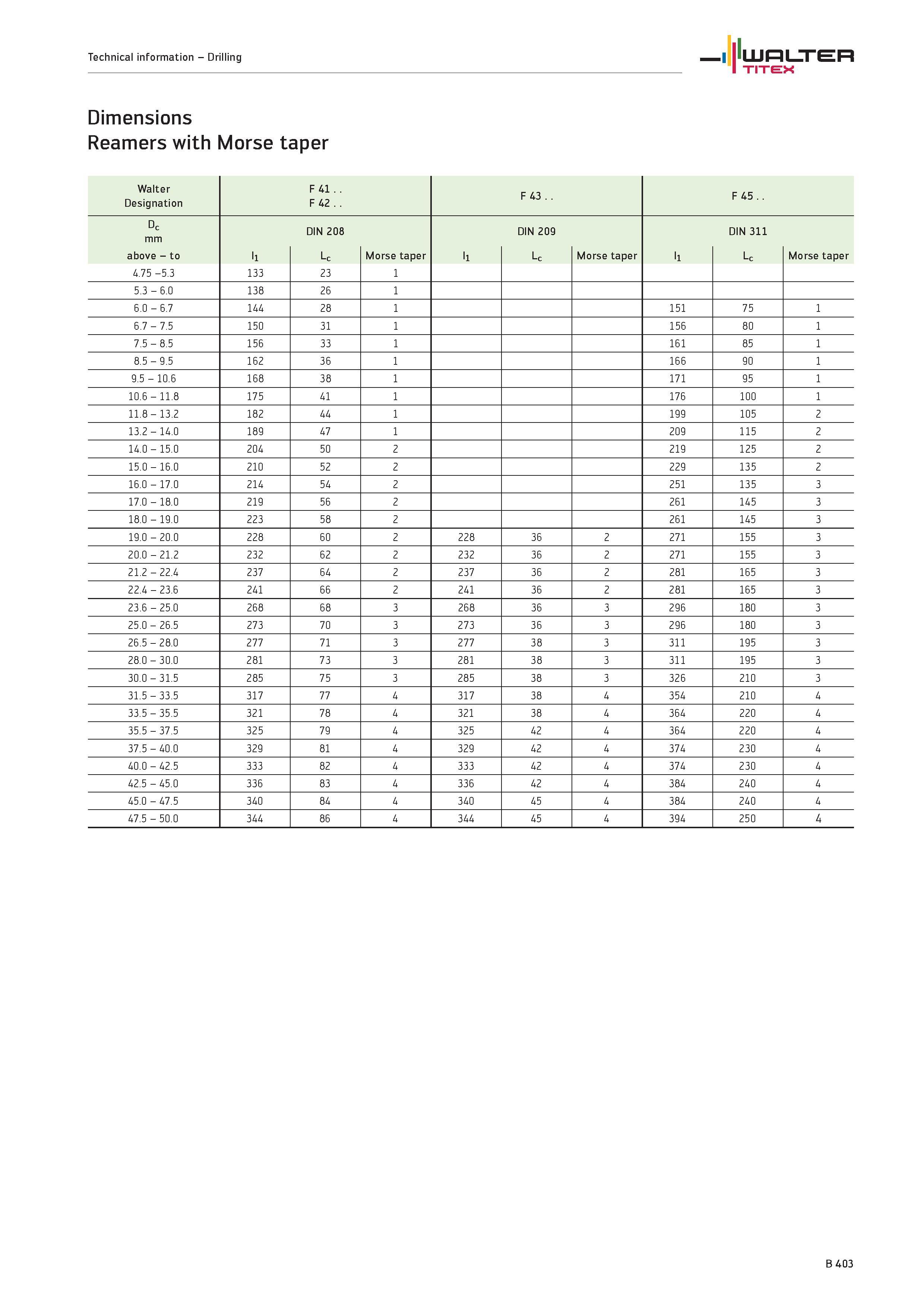

Dimensions Reamers with Morse taper Walter Designation F 41 F 42 F 43 F 45 Dc mm DIN 208 DIN 209 DIN 3ll above to ll Lc Morse taper ll Lc Morse t

Dimensions Reamers with Morse taper Walter Designation F 41 F 42 F 43 F 45 Dc mm DIN 208 DIN 209 DIN 3ll above to ll Lc Morse taper ll Lc Morse taper ll Lc Morse taper 4.75 -5.3 133 23 1 5.3 6.0 138 26 1 6.0 6.7 144 28 1 151 75 1 6.7 7.5 150 31 1 156 80 1 7.5 8.5 156 33 1 161 85 1 8.5 9.5 162 36 1 166 90 1 9.5 10.6 168 38 1 171 95 1 10.6 11.8 175 41 1 176 100 1 11.8 13.2 182 44 1 199 105 2 13.2 14.0 189 47 1 209 115 2 14.0 15.0 204 50 2 219 125 2 15.0 16.0 210 52 2 229 135 2 16.0 17.0 214 54 2 251 135 3 17.0 18.0 219 56 2 261 145 3 18.0 19.0 223 58 2 261 145 3 19.0 20.0 228 60 2 228 36 2 271 155 3 20.0 21.2 232 62 2 232 36 2 271 155 3 21.2 22.4 237 64 2 237 36 2 281 165 3 22.4 23.6 241 66 2 241 36 2 281 165 3 23.6 25.0 268 68 3 268 36 3 296 180 3 25.0 26.5 273 70 3 273 36 3 296 180 3 26.5 28.0 277 71 3 277 38 3 311 195 3 28.0 30.0 281 73 3 281 38 3 311 195 3 30.0 31.5 285 75 3 285 38 3 326 210 3 31.5 33.5 317 77 4 317 38 4 354 210 4 33.5 35.5 321 78 4 321 38 4 364 220 4 35.5 37.5 325 79 4 325 42 4 364 220 4 37.5 40.0 329 81 4 329 42 4 374 230 4 40.0 42.5 333 82 4 333 42 4 374 230 4 42.5 45.0 336 83 4 336 42 4 384 240 4 45.0 47.5 340 84 4 340 45 4 384 240 4 47.5 50.0 344 86 4 344 45 4 394 250 4 B 403 Technical information WALTER TITEX
