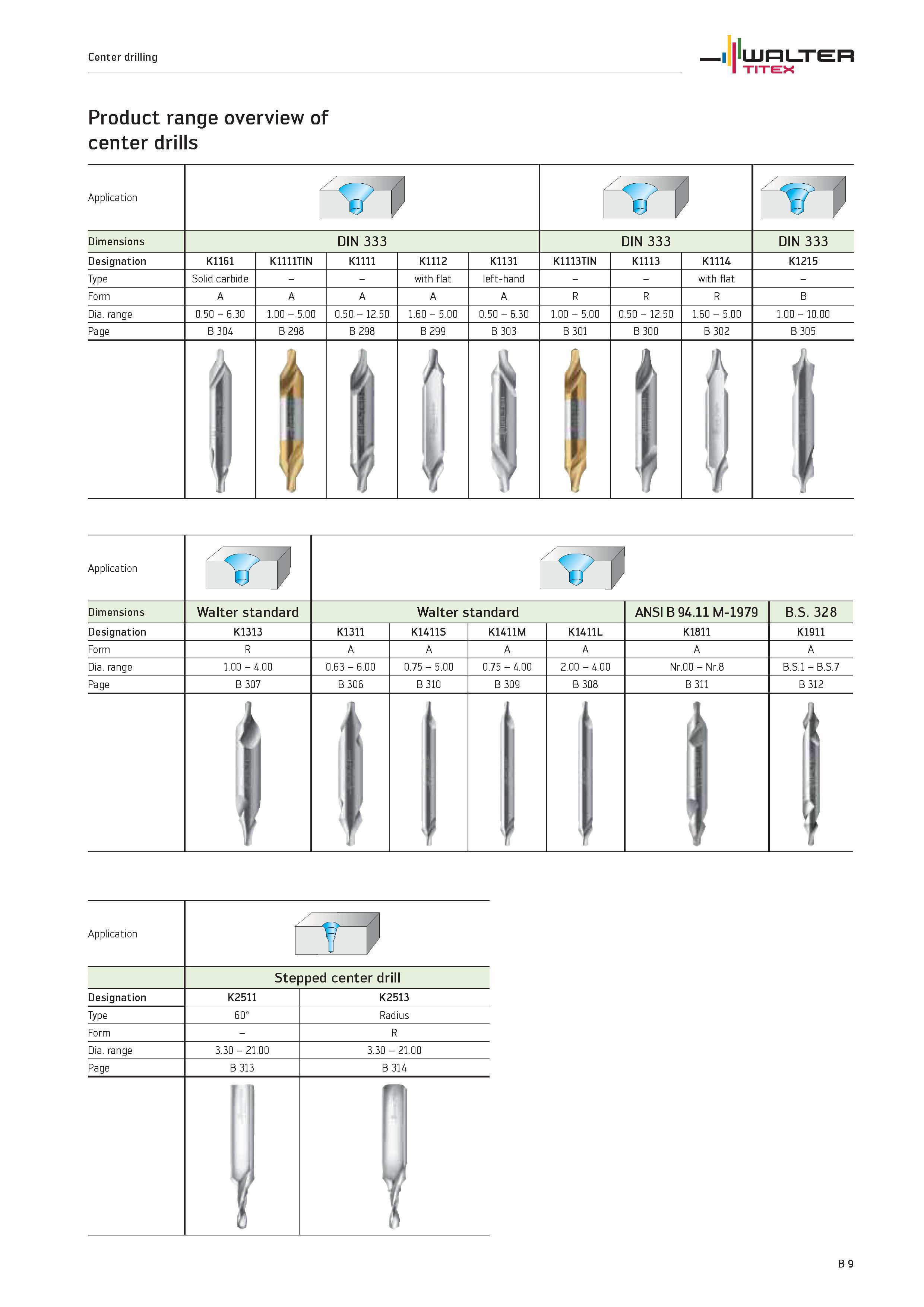

Center drilling WALTER TITEX Product range overview of center drills Application 1 1 rrl Dimensions DIN 333 DIN 333 DIN 333 Designation K1161 K1111TIN K1111 K1112 K1131 K1113TIN K1113 K1114 K1215 Type Solid carbide with flat left-hand with flat Form A A A A A R R R B Dia. range 0.50 6.30 1.00 5.00 0.50 12.50 1.60 5.00 0.50 6.30 1.00 5.00 0.50 12.50 1.60 5.00 1.00 10.00 Page B 304 B 298 B 298 B 299 B 303 B 301 B 300 B 302 B 305 1 A 1 Application % 1 1 Dimensions Walter standard ANSI B 94.11 M-1979 B.S. 328 Designation K1313 K1311 K1411S K1411M K1411L K1811 K1911 Form R A A A A A A Dia. range 1.00 4.00 0.63 6.00 0.75 5.00 0.75 4.00 2.00 4.00 Nr.00 Nr.8 B.S.1 B.S.7 Page B 307 B 306 B 310 B 309 B 308 B 311 B 312 )l 1 Application r 1 Stepped center drill Designation K2511 K2513 Type 60° Radius Form R Dia. range 3.30 21.00 3.30 21.00 Page B 313 B 314 B 9
