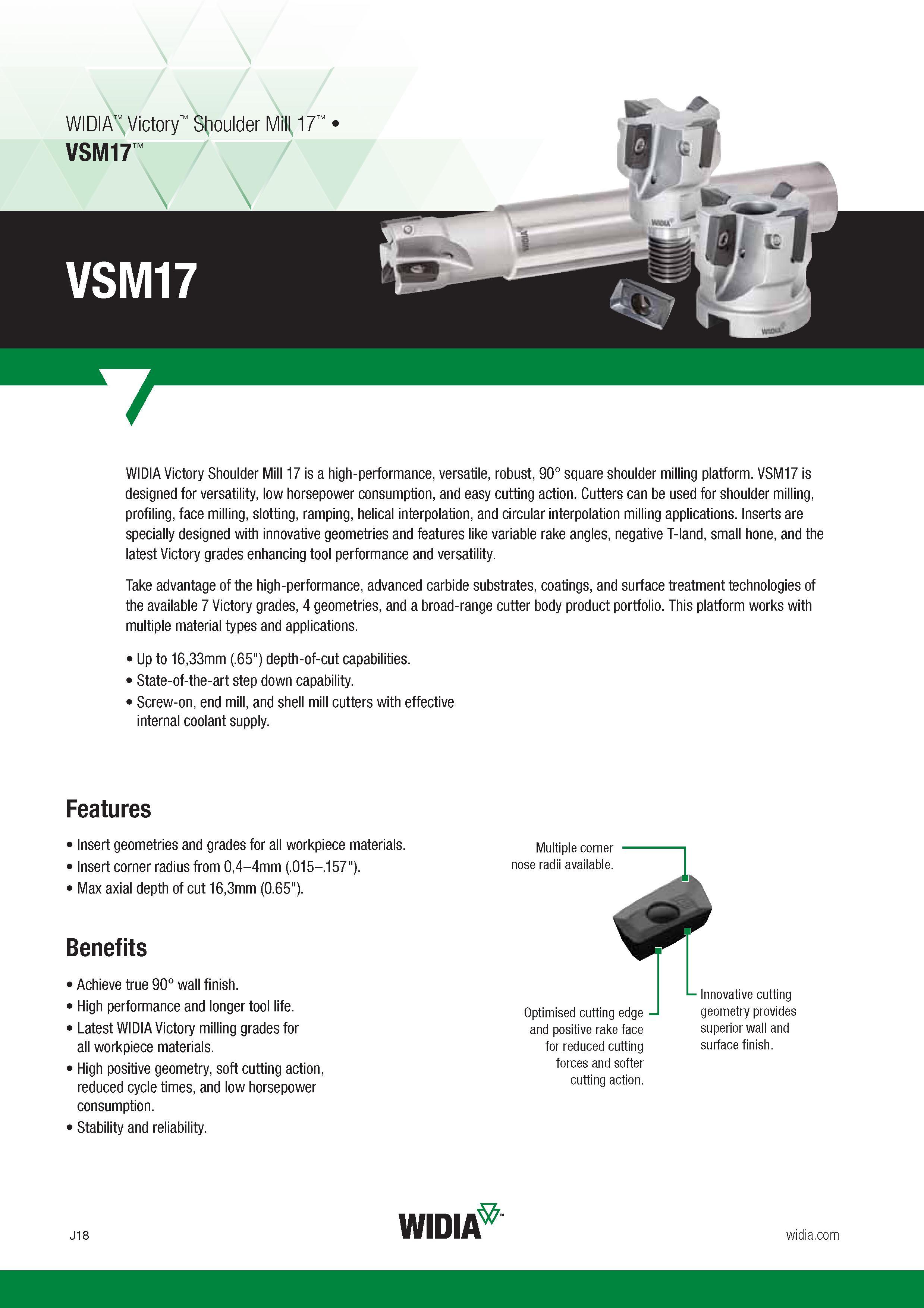

Shoulder Mill Widia Victory 17 is a high-performance, versatile, robust, 90° square shoulder milling platform VSM17 is designed for versatility, lo

Shoulder Mill Widia Victory 17 is a high-performance, versatile, robust, 90° square shoulder milling platform. VSM17 is designed for versatility, low horsepower consumption, and easy cutting action. Cutters can be used for shoulder milling, profiling, face milling, slotting, ramping, helical interpolation, and circular interpolation milling applications. Inserts are specially designed with innovative geometries and features like variable rake angles, negative T-land, small hone, and the latest Victory grade s enhancing tool performance and versatility. Take advantage of the high-performance, advanced carbide substrates, coatings, and surface treatment technologies of the available 7 Victory grade s, 4 geometries, and a broad-range cutter body product portfolio. This platform works with multiple material types and applications. Up to 16,33mm (.65") depth-of-cut capabilities. State-of-the-art step down capability. Screw-on, end mill, and shell mill cutters with effective internal coolant supply. Features Insert geometries and grade s for all workpiece materials. Insert corner radius from 0,4-4mm (.015-.157"). Max axial depth of cut 16,3mm (0.65"). Benefits Achieve true 90° wall finish. High performance and longer tool life. Latest Widia Victory milling grade s for all workpiece materials. High positive geometry, soft cutting action, reduced cycle times, and low horsepower consumption. Stability and reliability. Multiple corner nose radii available. Optimised cutting edge and positive rake face for reduced cutting forces and softer cutting action. Innovative cutting geometry provides superior wall and surface finish. Widia Victory Shoulder VSM17 17 VSM17 7
