Концевые твердосплавные фрезы Widia High-Performance Solid Carbide End Mills

Концевые твердосплавные фрезы Widia High-Performance Solid Carbide End Mills

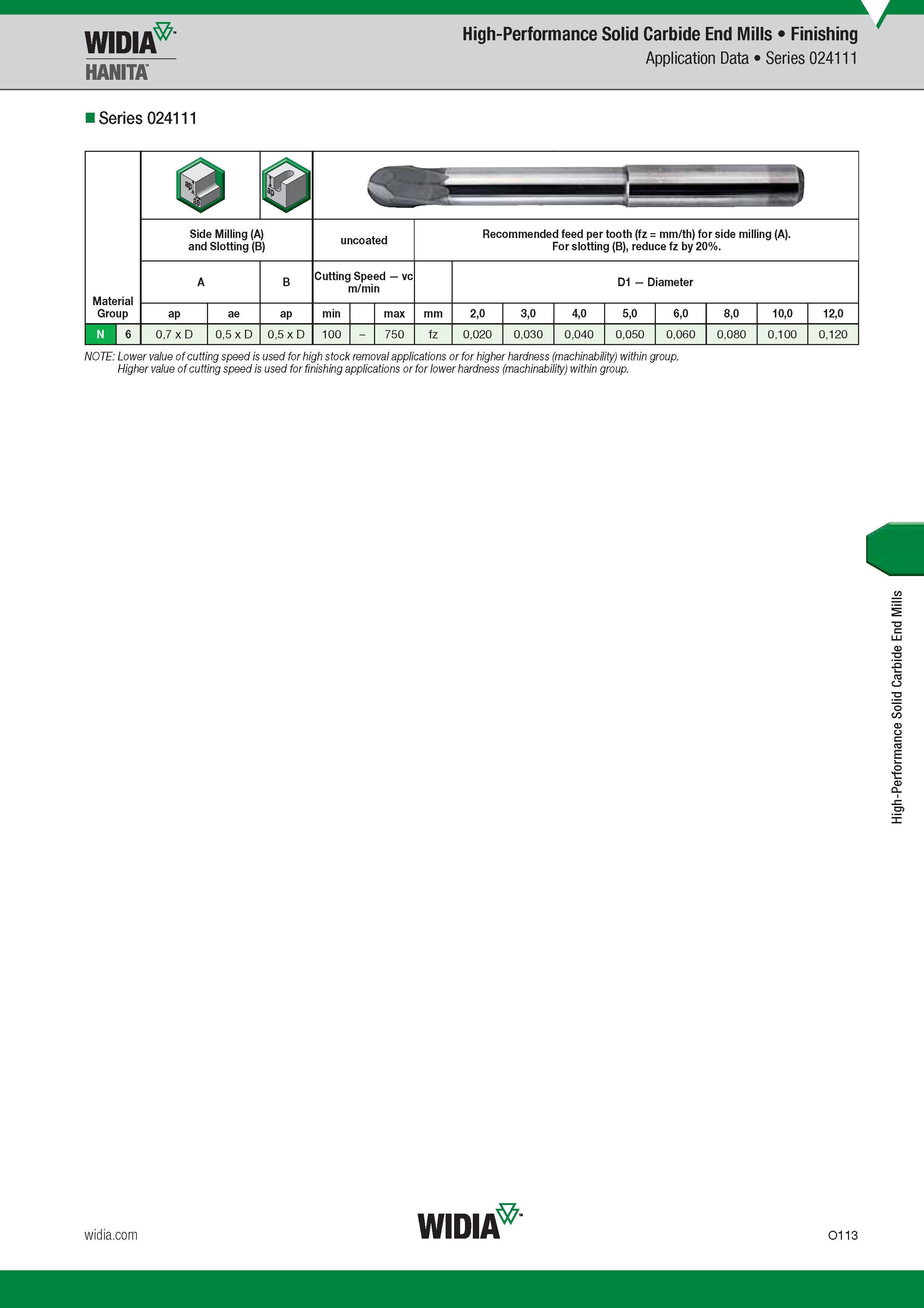

Концевые твердосплавные фрезы Widia High-Performance Solid Carbide End Mills _ Finishing Application Data Series 024111 Series 024111 Группа обрабатываемого материала Material Group Side Milling (A) and Slotting (B) ap 0,7 x D ap 0,5 x D uncoated Cutting Speed vc m/min 100 - 750 Рекомендованная подача на зуб Recommended feed per tooth (fz mm/th) for side milling (A). For slotting (B), reduce fz by 20%. fz D1 Diameter 2,0 0,020 3,0 0,030 4,0 0,040 5,0 0,050 6,0 0,060 8,0 0,080 10,0 0,100 12,0 0,120 NOTE Lower value of cutting speed is used for high stock removal applications or for higher hardness (machinability) within group. Higher value of cutting speed is used for finishing applications or for lower hardness (machinability) within group. Widia 0113 ae mm N 6 High-Performance Solid Carbide End Mills
