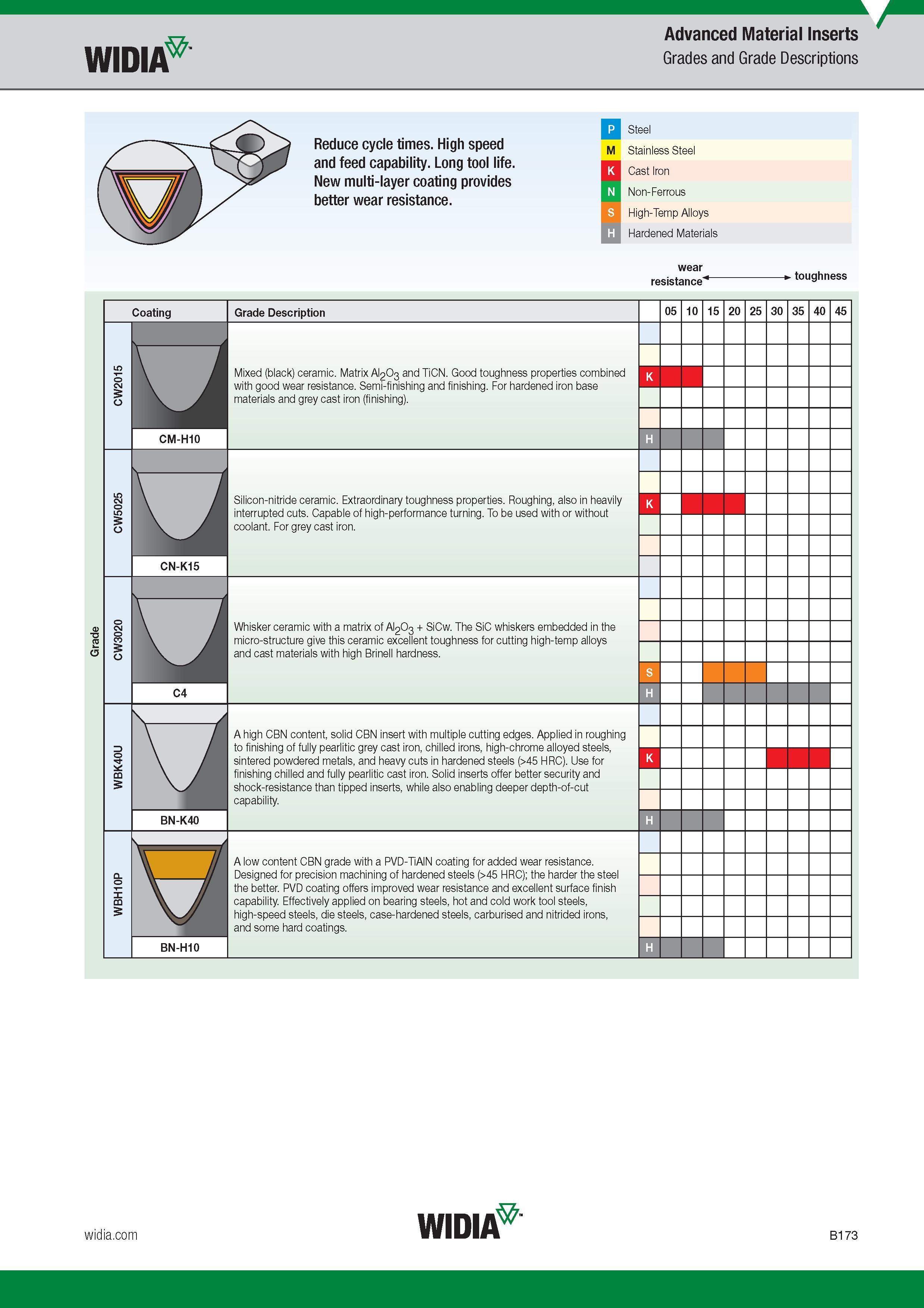

Inserts Widia Grades and Grade Descriptions Reduce cycle times. High speed and feed capability. Long tool life. New multi-layer coating provides better wear resistance. wear resistance'" - toughness Coating Grade Description 05 10 15 20 25 30 35 40 45 CW2015 Mixed (black) ceramic. Matrix AI2O3 and TiCN. Good toughness properties combined with good wear resistance. Semi-finishing and finishing. For hardened iron base materials and grey cast iron (finishing). J K CM-H10 H CW5025 Silicon-nitride ceramic. Extraordinary toughness properties. Roughing, also in heavily interrupted cuts. Capable of high-performance turning. To be used with or without coolant. For grey cast iron. v K CN-K15 CW3020 Whisker ceramic with a matrix of A 3 + SiCw. The SiC whiskers embedded in the micro-structure give this ceramic excellent toughness for cutting high-temp alloys and cast materials with high Brinell hardness. V/ s C4 H WBK40U / A high CBN content, solid CBN insert with multiple cutting edges. Applied in roughing to finishing of fully pearlitic grey cast iron, chilled irons, high-chrome alloyed steels, sintered powdered metals, and heavy cuts in hardened steels (>45 HRC). Use for finishing chilled and fully pearlitic cast iron. Solid inserts offer better security and shock-resistance than tipped inserts, while also enabling deeper depth-of-cut capability. K BN-K40 H WBH10P / A low content CBN grade with a PVD-TiAlN coating for added wear resistance. Designed for precision machining of hardened steels (>45 HRC); the harder the steel the better. PVD coating offers improved wear resistance and excellent surface finish capability. Effectively applied on bearing steels, hot and cold work tool steels, high-speed steels, die steels, case-hardened steels, carburised and nitrided irons, v v BN-H10 H Grade Advanced Material
