141 Каталог WIDIA 2017 Режущий инструмент Пластины Резцы Фрезы Сверла Метчики Стр.B121

Каталог Widia 2017 Металлорежущий инструмент Стр. B121 0141 ENG Lab2u

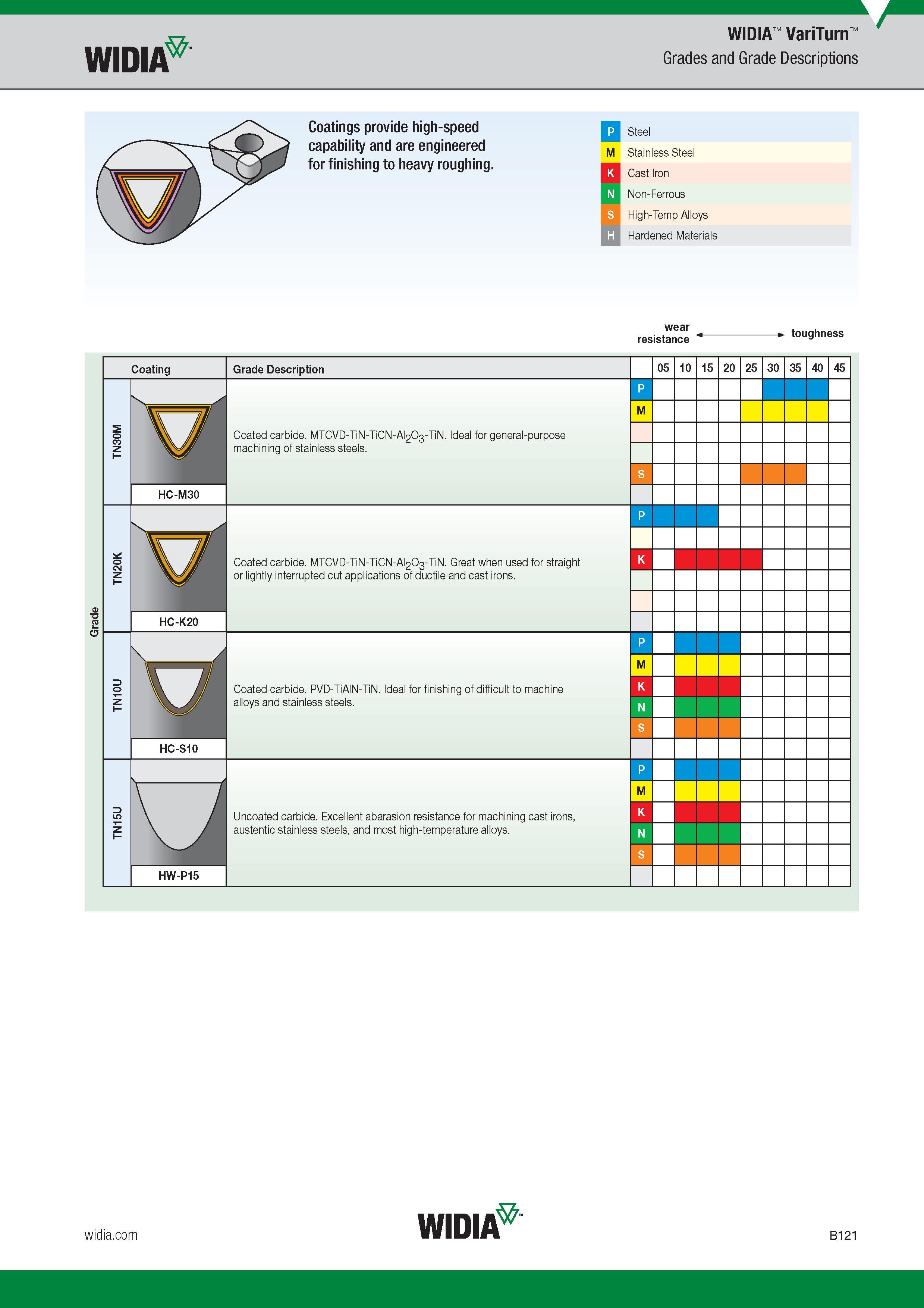

Grade Widia VariTurn Widia Grades and Grade Descriptions Coatings provide high-speed capability and are engineered for finishing to heavy roughing. P Steel M Stainless Steel K Cast Iron N Non-Ferrous S High-Temp Alloys H Hardened Materials resistance wear -toughness Coating Grade Description M 05 10 15 20 25 30 35 40 45 TN30M Coated carbide. MTCVD-TiN-TiCN-A tOj-TiN. Ideal for general-purpose machining of stainless steels. V S HC-M30 TN20K Coated carbide. MTCVD-TiN-TiCN-Al2O3-TiN. Great when used for straight or lightly interrupted cut applications of ductile and cast irons. V J z z z z HC-K20 TN10U V Coated carbide. PVD-TiAlN-TiN. Ideal for finishing of difficult to machine alloys and stainless steels. P z z HC-S10 TN15U Uncoated carbide. Excellent abarasion resistance for machining cast irons, austentic stainless steels, and most high-temperature alloys. P V \K K z z n S HW-P15
