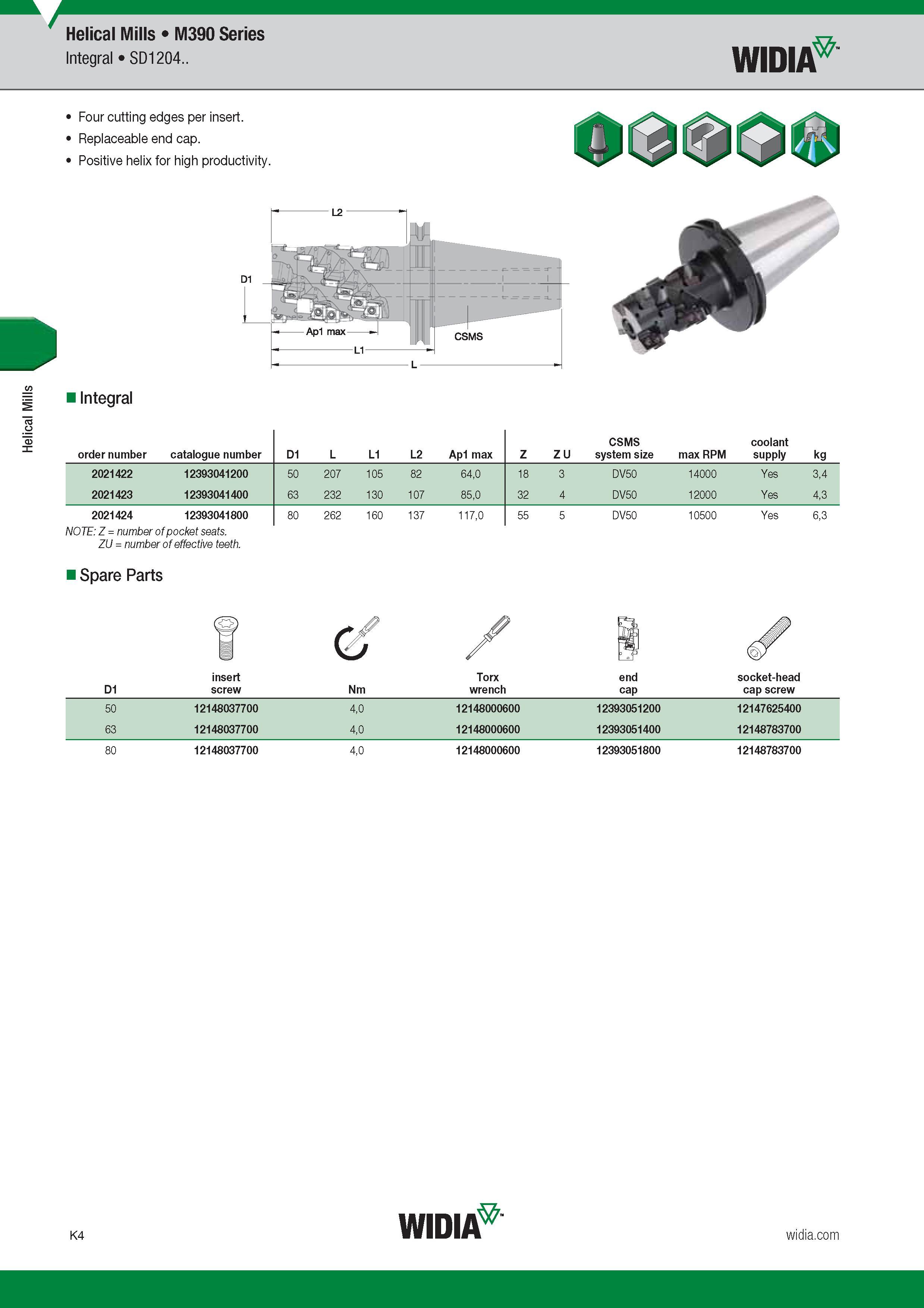

Helical Mills Widia M390 Series Integral SD1204 Four cutting edges per insert Replaceable end cap Positive helix for high productivity Integral ord

Helical Mills Widia M390 Series Integral SD1204.. Four cutting edges per insert. Replaceable end cap. Positive helix for high productivity. Integral order number Catalogue number Обозначение инструмента по каталогу D1 L L1 L2 Ap1 max Z Z U CSMS system size max RPM coolant supply kg 2021422 12393041200 50 207 105 82 64,0 18 3 DV50 14000 Yes 3,4 2021423 12393041400 63 232 130 107 85,0 32 4 DV50 12000 Yes 4,3 2021424 12393041800 80 262 160 137 117,0 55 5 DV50 10500 Yes 6,3 NOTE Z number of pocket seats. ZU number of effective teeth. Spare Parts D1 insert screw G Nm Torx wrench end cap socket-head cap screw 50 12148037700 4,0 12148000600 12393051200 12147625400 63 12148037700 4,0 12148000600 12393051400 12148783700 80 12148037700 4,0 12148000600 12393051800 12148783700 Helical Mills
