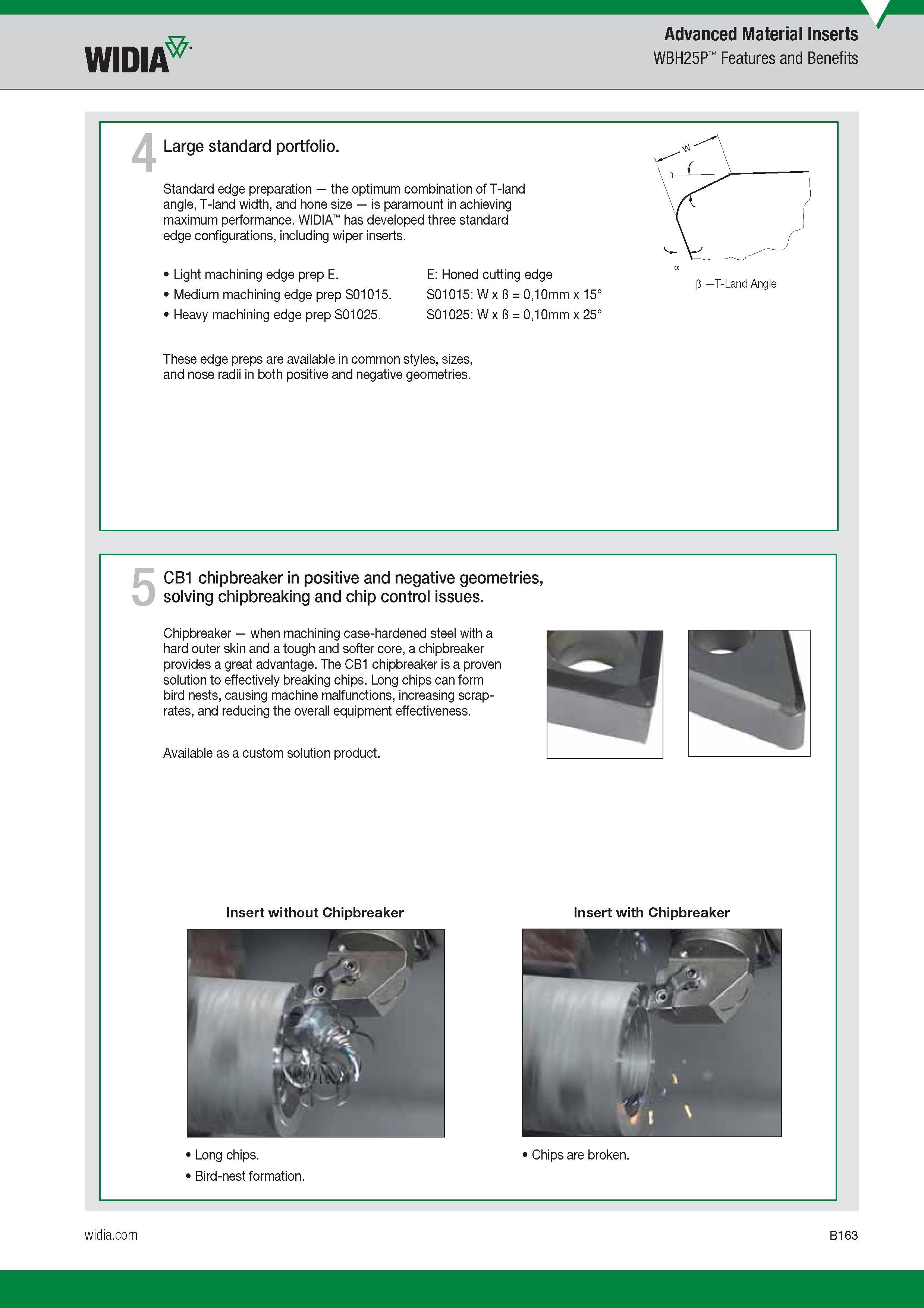

Advanced Material Inserts Widia WBH25P Features and Benefits 4 Large standard portfolio. Standard edge preparation the optimum combination of T-land angle, T-land width, and hone size is paramount in achieving maximum performance. Widia has developed three standard edge configurations, including wiper inserts. Light machining edge prep E. Medium machining edge prep S01015. Heavy machining edge prep S01025. E Honed cutting edge S01015 W x 13 0,10mm x 15° S01025 W x 3 0,10mm x 25° These edge preps are available in common styles, sizes, and nose radii in both positive and negative geometries. 5 CB1 chipbreaker in positive and negative geometries, solving chipbreaking and chip control issues. Chipbreaker when machining case-hardened steel with a hard outer skin and a tough and softer core, a chipbreaker provides a great advantage. The CB1 chipbreaker is a proven solution to effectively breaking chips. Long chips can form bird nests, causing machine malfunctions, increasing scrap-rates, and reducing the overall equipment effectiveness. Available as a custom solution product. Insert with Chipbreaker Chips are broken.
