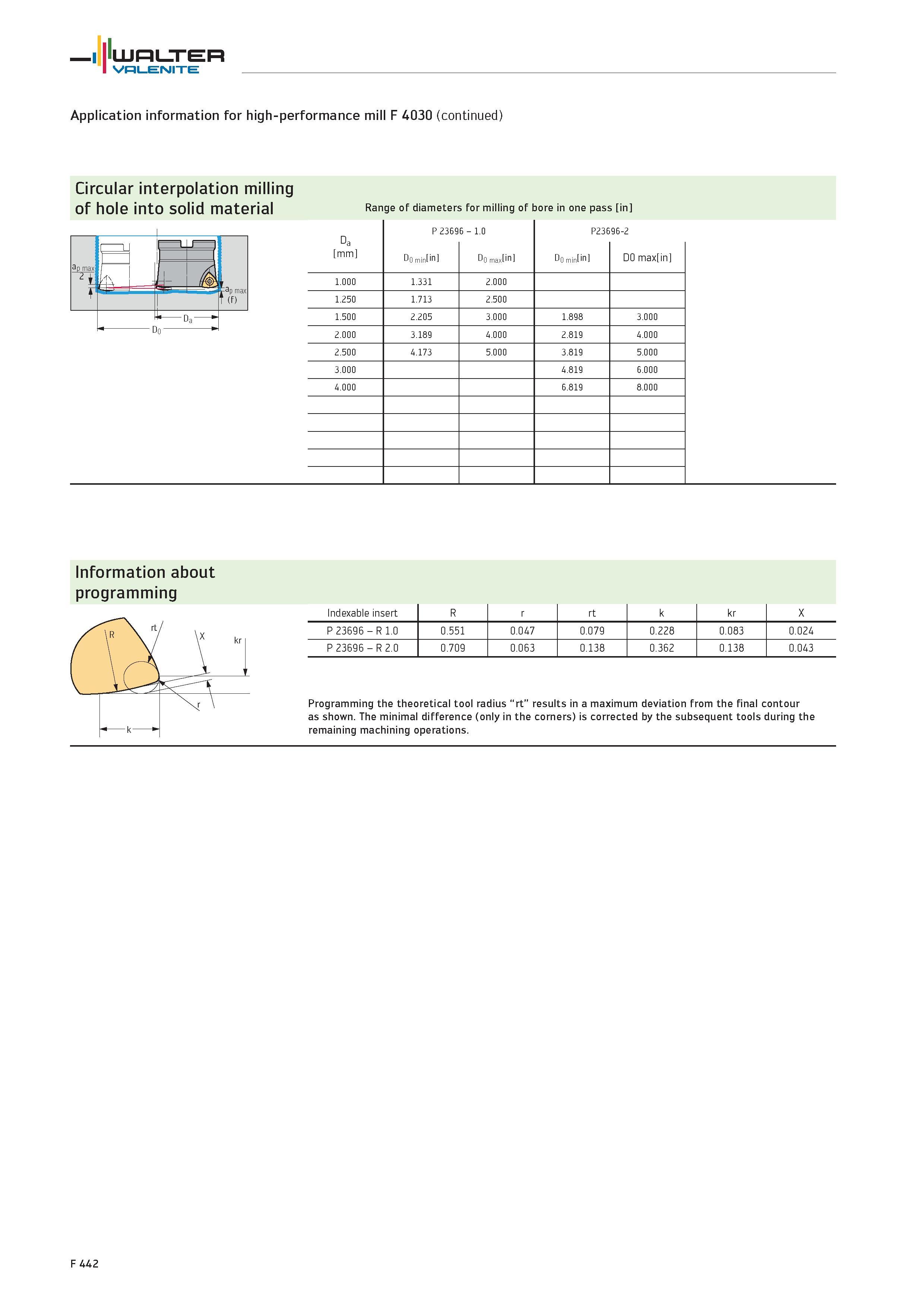

Application information for high-performance mill F 4030 Circular interpolation milling of hole into solid material Range of diameters for milling of bore in one pass in mm in D0 max in D0 max in Information about programming Indexable insert R r rt k kr X P 23696 R 1.0 0.551 0.047 0.079 0.228 0.083 0.024 P 23696 R 2.0 0.709 0.063 0.138 0.362 0.138 0.043 Programming the theoretical tool radius "rt results in a maximum deviation from the final contour as shown. The minimal difference (only in the corners) is corrected by the subsequent tools during the remaining machining operations. D D D F 442 WALTER Valenite
