NORGAU | Каталог NORGAU 2015 Инструмент (Всего 832 стр.) |
|||||
|

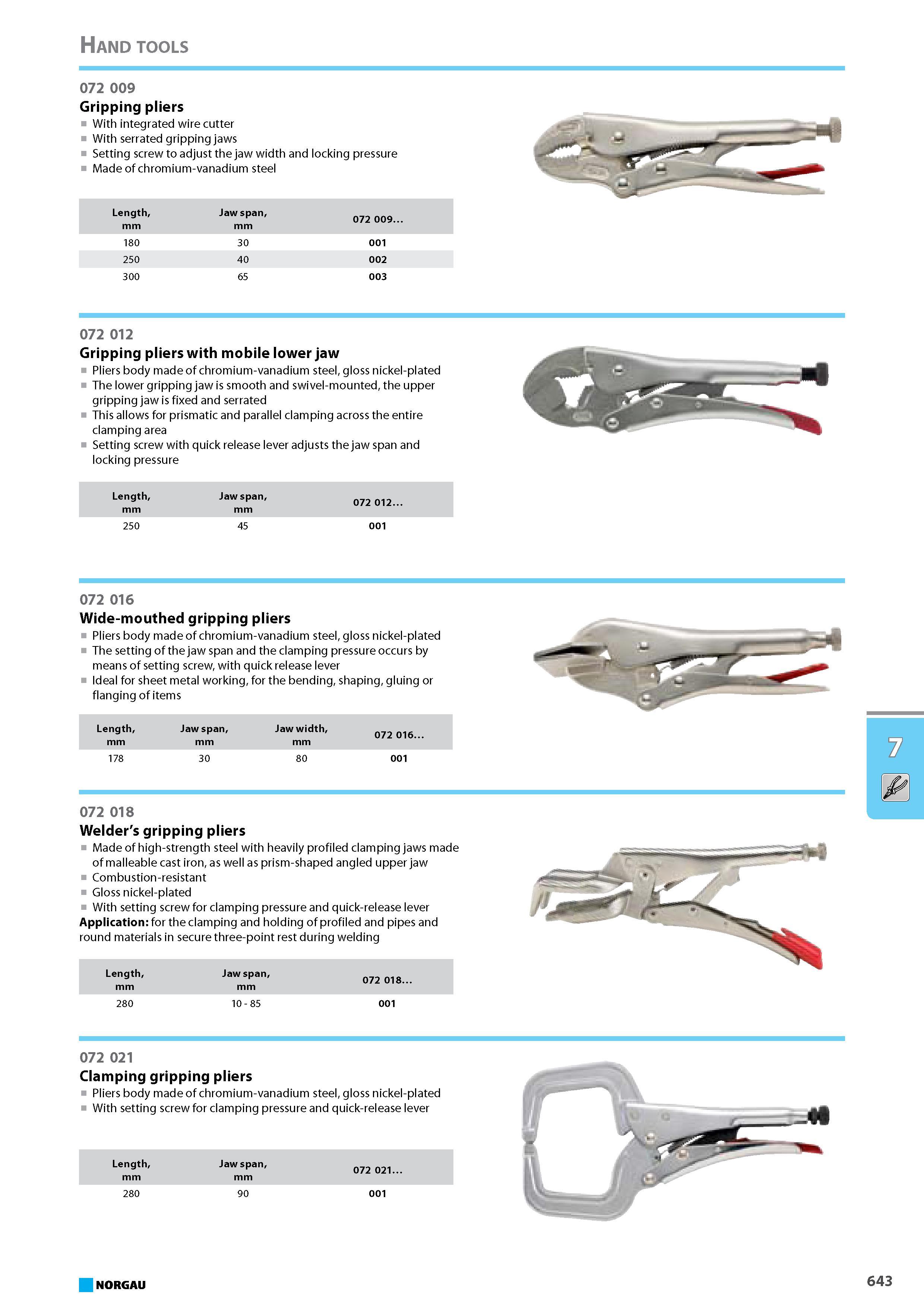

659 Каталог NORGAU 2014 Инструменты Оборудование Стр.643 |
|||||
Wide-mouthed gripping pliers Pliers body made of chromium-vanadium steel gloss nickel-plated The setting of the jaw span and the clamping pressure occurs by means of sWide-mouthed gripping pliers Pliers body made of chromium-vanadium steel gloss nickel-plated The setting of the jaw span and the clamping pressure occurs by means of setting screw with quick release lever Ideal for sheet metal working for the bending shaping gluing or flanging of items Length Jaw span Jaw width 072 016. mm 178 30 80 001 072 018 Welder's gripping pliers Made of high-strength steel with heavily profiled clamping jaws made of malleable cast iron as well as prism-shaped angled upper jaw Combustion-resistant Gloss nickel-plated With setting screw for clamping pressure and quick-release lever Application for the clamping and holding of profiled and pipes and round materials in secure three-point rest during welding Length Jaw span 072 018. mm 280 10 - 85 001 B 072 021 Clamping gripping pliers Pliers body made of chromium-vanadium steel gloss nickel-plated With setting screw for clamping pressure and quick-release lever Length Jaw span 072 021. mm 280 90 001 NORGAU 643 Hand tools 072 009 Gripping pliers With integrated wire cutter With serrated gripping jaws Setting screw to adjust the jaw width and locking pressure Made of chromium-vanadium steel Length mm Jaw span mm 072 009. 180 30 001 250 40 002 300 65 003 072 012 Gripping pliers with mobile lower jaw Pliers body made of chromium-vanadium steel gloss nickel-plated The lower gripping jaw is smooth and swivel-mounted the upper gripping jaw is fixed and serrated This allows for prismatic and parallel clamping across the entire clamping area Setting screw with quick release lever adjusts the jaw span and locking pressure Length Jaw span 072 012. mm 250 45 001 072 016 |
|||||
