NORGAU
| Каталог NORGAU 2015 Инструмент (Всего 832 стр.)




732 Каталог NORGAU 2014 Инструменты Оборудование Стр.716

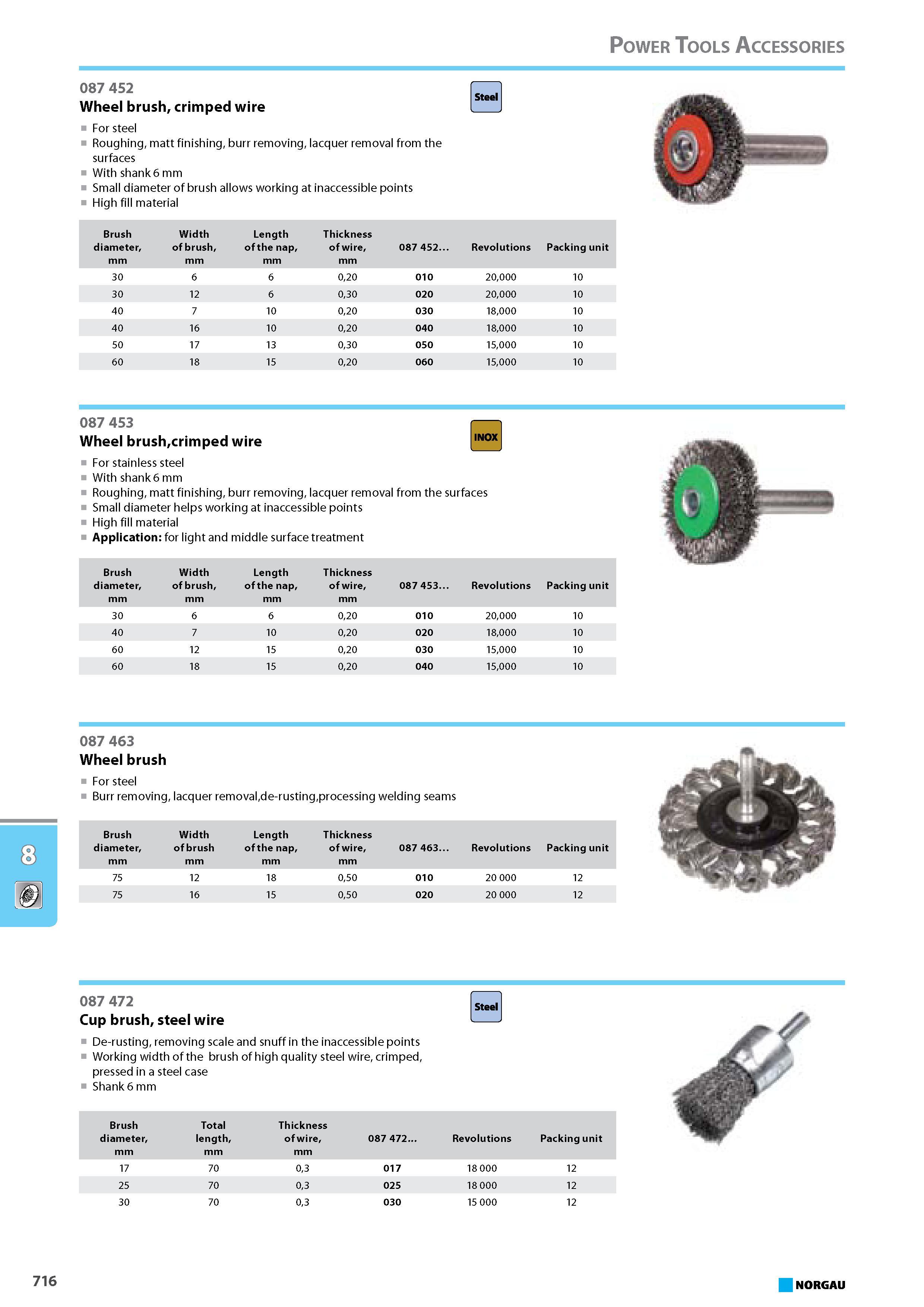

732 Wheel brush crimped wire For steel Roughing matt finishing burr removing lacquer removal from the surfaces With shank 6 mm Small diameter of brush allows working at in Каталог NORGAU 2015 Инструмент режущий измерительный слесарно-монтажный Стр. 716

Wheel brush crimped wire For steel Roughing matt finishing burr removing lacquer removal from the surfaces With shank 6 mm Small diameter of brush allows working at in

Wheel brush crimped wire For steel Roughing matt finishing burr removing lacquer removal from the surfaces With shank 6 mm Small diameter of brush allows working at inaccessible points High fill material Steel Brush diameter mm Width of brush mm Length of the nap mm Thickness of wire mm 087 452. Revolutions Packing unit 30 6 6 020 010 20000 10 30 12 6 030 020 20000 10 40 7 10 020 030 18000 10 40 16 10 020 040 18000 10 50 17 13 030 050 15000 10 60 18 15 020 060 15000 10 INOX 087 453 Wheel brushcrimped wire For stainless steel With shank 6 mm Roughing matt finishing burr removing lacquer removal from the surfaces Small diameter helps working at inaccessible points High fill material Application for light and middle surface treatment Brush diameter mm Width of brush mm Length of the nap mm Thickness of wire mm 087 453. Revolutions Packing unit 30 6 6 020 010 20000 10 40 7 10 020 020 18000 10 60 12 15 020 030 15000 10 60 18 15 020 040 15000 10 087 463 Wheel brush For steel Burr removing lacquer removalde-rustingprocessing welding seams Brush Width Length Thickness diameter of brush of the nap of wire 087 463. Revolutions Packing unit mm 75 12 18 050 010 20 000 12 75 16 15 050 020 20 000 12 087 472 Cup brush steel wire De-rusting removing scale and snuff in the inaccessible points Working width of the brush of high quality steel wire crimped pressed in a steel case Shank 6 mm Steel Brush Total Thickness diameter length of wire 087 472 Revolutions Packing unit mm 17 70 03 017 18 000 12 25 70 03 025 18 000 12 03 30 70 030 15 000 12 716 NORGAU Power Tools Accessories 087 452
