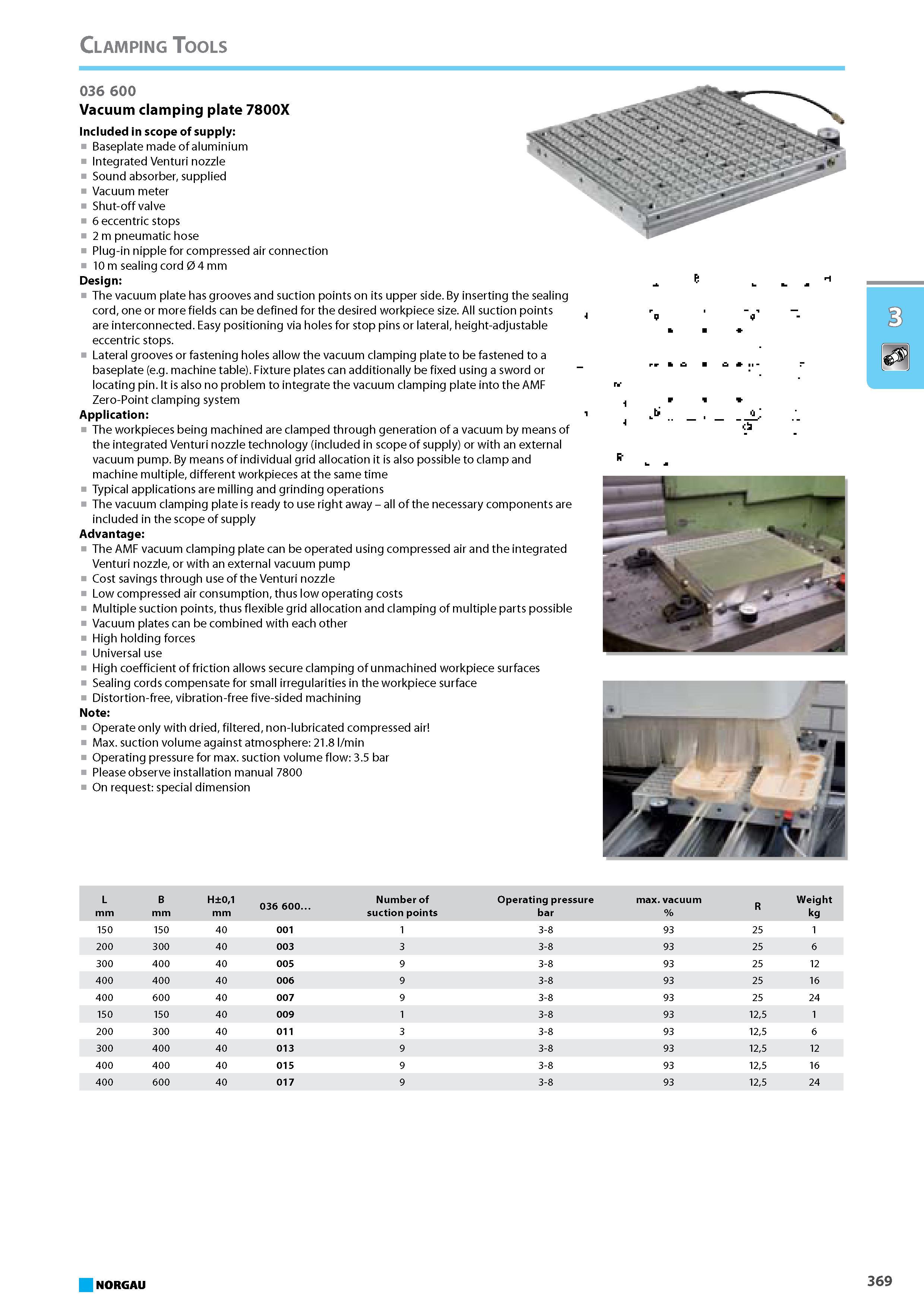

Vacuum clamping plate 7800X Included in scope of supply Baseplate made of aluminium Integrated Venturi nozzle Sound absorber supplied Vacuum meter Shut-off valve 6 eccentric stops 2m pneumatic hose Plug-in nipple for compressed air connection 10 m sealing cord 0 4 mm Design The vacuum plate has grooves and suction points on its upper side. By inserting the sealing cord one or more fields can be defined for the desired workpiece size. All suction points are interconnected. Easy positioning via holes for stop pins or lateral height-adjustable eccentric stops. Lateral grooves or fastening holes allow the vacuum clamping plate to be fastened to a baseplate (e.g. machine table). Fixture plates can additionally be fixed using a sword or locating pin. It is also no problem to integrate the vacuum clamping plate into the AMF Zero-Point clamping system Application The workpieces being machined are clamped through generation of a vacuum by means of the integrated Venturi nozzle technology (included in scope of supply) or with an external vacuum pump. By means of individual grid allocation it is also possible to clamp and machine multiple different workpieces at the same time Typical applications are milling and grinding operations The vacuum clamping plate is ready to use right away - all of the necessary components are included in the scope of supply Advantage The AMF vacuum clamping plate can be operated using compressed air and the integrated Venturi nozzle or with an external vacuum pump Cost savings through use of the Venturi nozzle Low compressed air consumption thus low operating costs Multiple suction points thus flexible grid allocation and clamping of multiple parts possible Vacuum plates can be combined with each other High holding forces Universal use High coefficient of friction allows secure clamping of unmachined workpiece surfaces Sealing cords compensate for small irregularities in the workpiece surface Distortion-free vibration-free five-sided machining Note Operate only with dried filtered non-lubricated compressed air Max. suction volume against atmosphere 21.8 min Operating pressure for max. suction volume flow 3.5 bar Please observe installation manual 7800 On request special dimension L mm B mm H01 mm 036 600 Number of suction points Operating pressure bar max. vacuum R Weight kg 150 150 40 001 1 3-8 93 25 1 200 300 40 003 3 3-8 93 25 6 300 400 40 005 9 3-8 93 25 12 400 400 40 006 9 3-8 93 25 16 400 600 40 007 9 3-8 93 25 24 150 150 40 009 1 3-8 93 125 1 200 300 40 011 3 3-8 93 125 6 300 400 40 013 9 3-8 93 125 12 400 400 40 015 9 3-8 93 125 16 400 600 40 017 9 3-8 93 125 24 NORGAU 369 Clamping Tools 036 600
