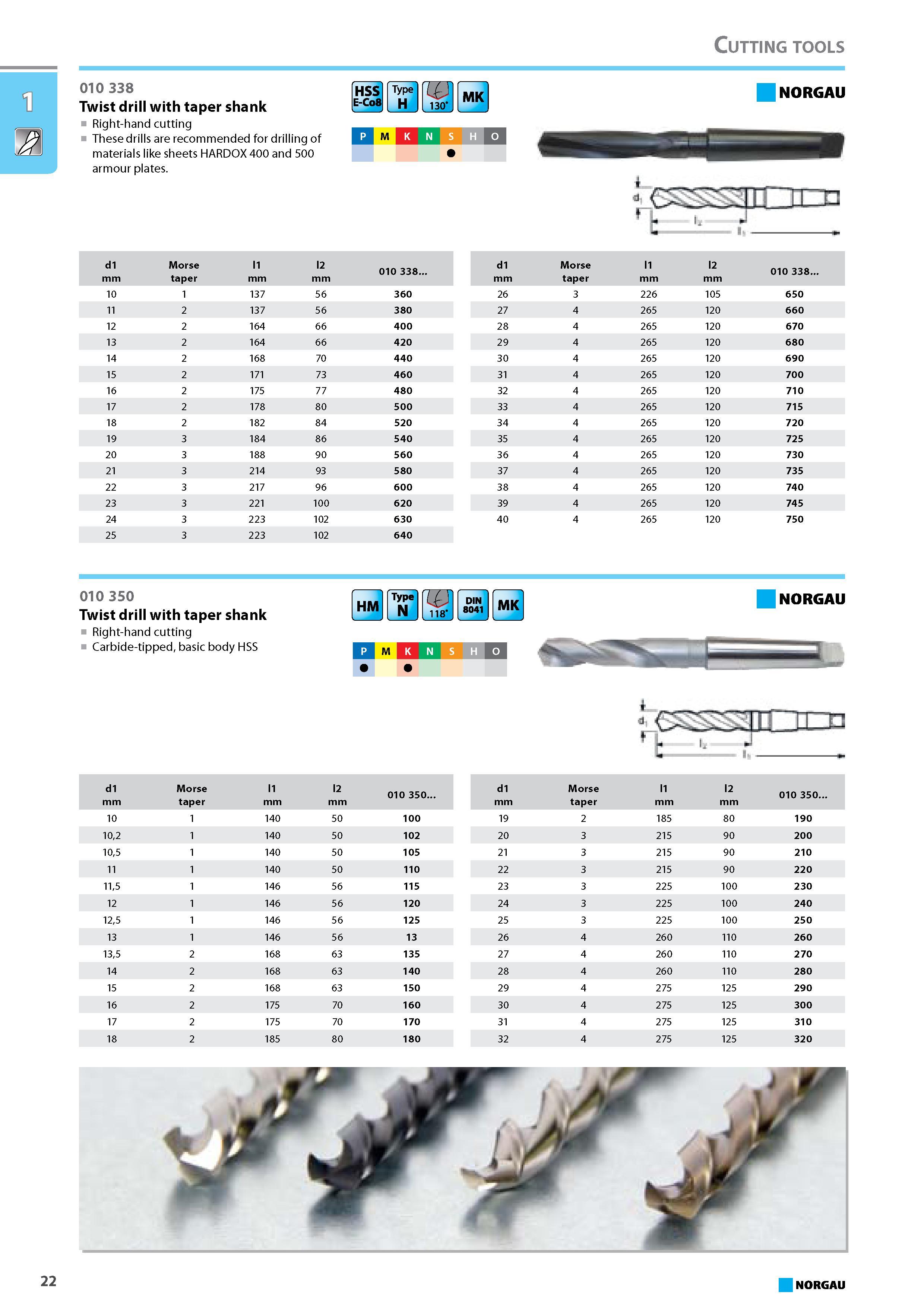

Twist drill with taper shank Right-hand cutting These drills are recommended for drilling of materials like sheets HARDOX 400 and 500 armour plates. HSS E-CoS Type H 130 MK p M k n s h NORGAU d1 mm Morse taper l1 mm l2 mm 010 338 d1 mm Morse taper l1 mm l2 mm 010 338 10 1 137 56 360 26 3 226 105 650 11 2 137 56 380 27 4 265 120 660 12 2 164 66 400 28 4 265 120 670 13 2 164 66 420 29 4 265 120 680 14 2 168 70 440 30 4 265 120 690 15 2 171 73 460 31 4 265 120 700 16 2 175 77 480 32 4 265 120 710 17 2 178 80 500 33 4 265 120 715 18 2 182 84 520 34 4 265 120 720 19 3 184 86 540 35 4 265 120 725 20 3 188 90 560 36 4 265 120 730 21 3 214 93 580 37 4 265 120 735 22 3 217 96 600 38 4 265 120 740 23 3 221 100 620 39 4 265 120 745 24 3 223 102 630 40 4 265 120 750 25 3 223 102 640 010 350 Twist drill with taper shank Right-hand cutting Carbide-tipped basic body HSS HM Type N 118 DIN 8041 MK p M K N S H NORGAU d1 mm Morse taper l1 mm l2 mm 010 350 d1 mm Morse taper l1 mm l2 mm 010 350 10 1 140 50 100 19 2 185 80 190 102 1 140 50 102 20 3 215 90 200 105 1 140 50 105 21 3 215 90 210 11 1 140 50 110 22 3 215 90 220 115 1 146 56 115 23 3 225 100 230 12 1 146 56 120 24 3 225 100 240 125 1 146 56 125 25 3 225 100 250 13 146 56 13 26 4 260 110 260 135 2 168 63 135 27 4 260 110 270 14 2 168 63 140 28 4 260 110 280 15 2 168 63 150 29 4 275 125 290 16 2 175 70 160 30 4 275 125 300 17 2 175 70 170 31 4 275 125 310 18 2 185 80 180 32 4 275 125 320 22 NORGAU Cutting tools 010 338
