NORGAU | Каталог NORGAU 2015 Инструмент (Всего 832 стр.) |
|||||
|

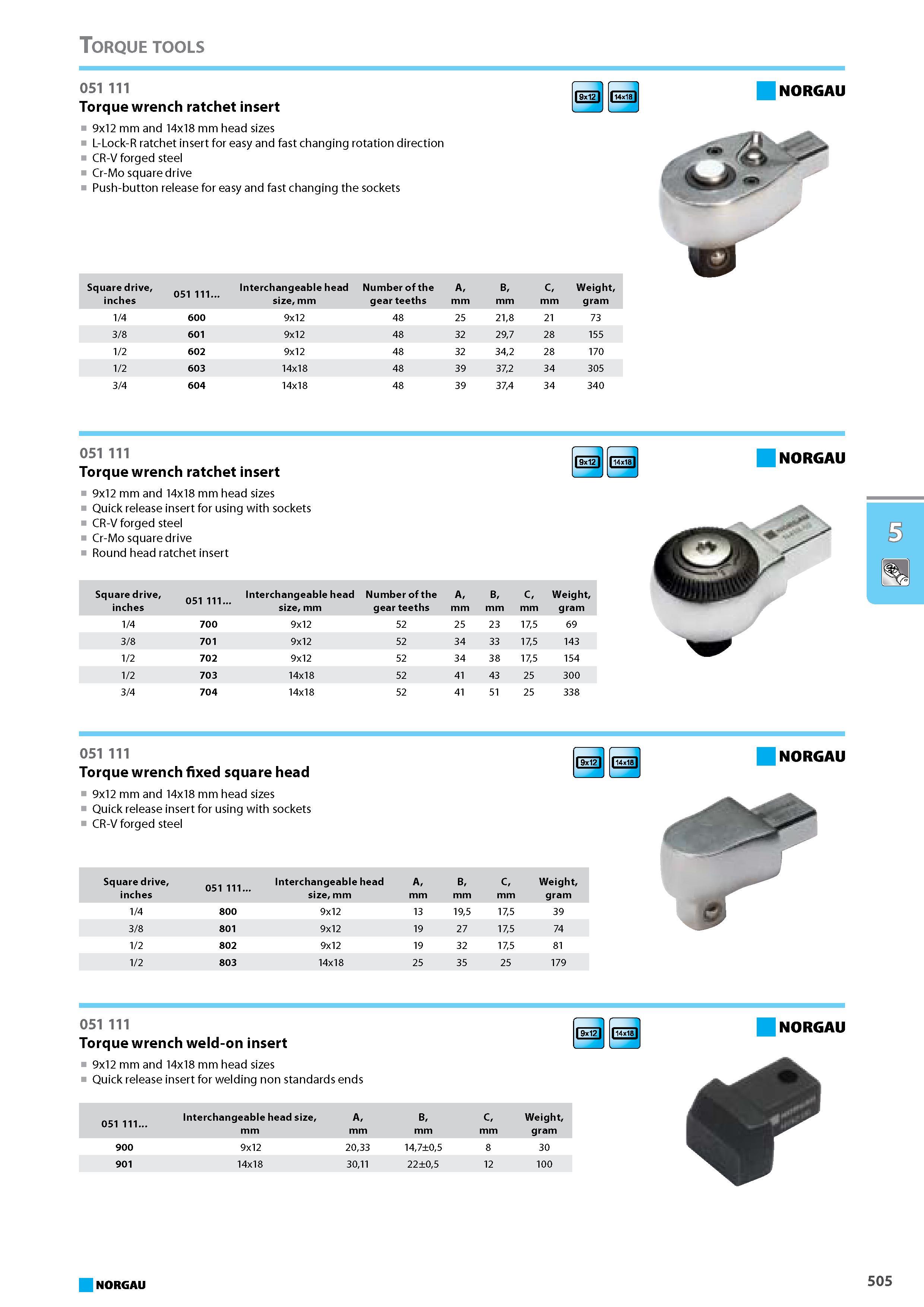

521 Каталог NORGAU 2014 Инструменты Оборудование Стр.505 |
|||||
Torque wrench ratchet insert 9x12 mm and 14x18 mm head sizes L-Lock-R ratchet insert for easy and fast changing rotation direction CR-V forged steel Cr-Mo square driveTorque wrench ratchet insert 9x12 mm and 14x18 mm head sizes L-Lock-R ratchet insert for easy and fast changing rotation direction CR-V forged steel Cr-Mo square drive Push-button release for easy and fast changing the sockets NORGAU Square drive inches 051 111 Interchangeable head size mm Number of the gear teeths A mm B mm c mm Weight gram 1 4 600 9x12 48 25 218 21 73 3 8 601 9x12 48 32 297 28 155 1 2 602 9x12 48 32 342 28 170 1 2 603 14x18 48 39 372 34 305 3 4 604 14x18 48 39 374 34 340 051 111 Torque wrench ratchet insert 9x12 mm and 14x18 mm head sizes Quick release insert for using with sockets CR-V forged steel Cr-Mo square drive Round head ratchet insert NORGAU Square drive inches 051 111 Interchangeable head size mm Number of the gear teeths A mm B mm c mm Weight gram 1 4 700 9x12 52 25 23 175 69 3 8 701 9x12 52 34 33 175 143 1 2 702 9x12 52 34 38 175 154 1 2 703 14x18 52 41 43 25 300 3 4 704 14x18 52 41 51 25 338 051 111 Torque wrench fixed square head 9x12 mm and 14x18 mm head sizes Quick release insert for using with sockets CR-V forged steel Square drive inches 051 111 Interchangeable head size mm A mm B mm c mm Weight gram 1 4 800 9x12 13 195 175 39 3 8 801 9x12 19 27 175 74 1 2 802 9x12 19 32 175 81 1 2 803 14x18 25 35 25 179 051 111 Torque wrench weld-on insert 9x12 mm and 14x18 mm head sizes Quick release insert for welding non standards ends 1 9x121 114x181 NORGAU 051 111 Interchangeable head size A B c Weight mm gram 900 9x12 2033 14705 8 30 901 14x18 3011 2205 12 100 NORGAU 505 Torque tools 051 111 |
|||||
