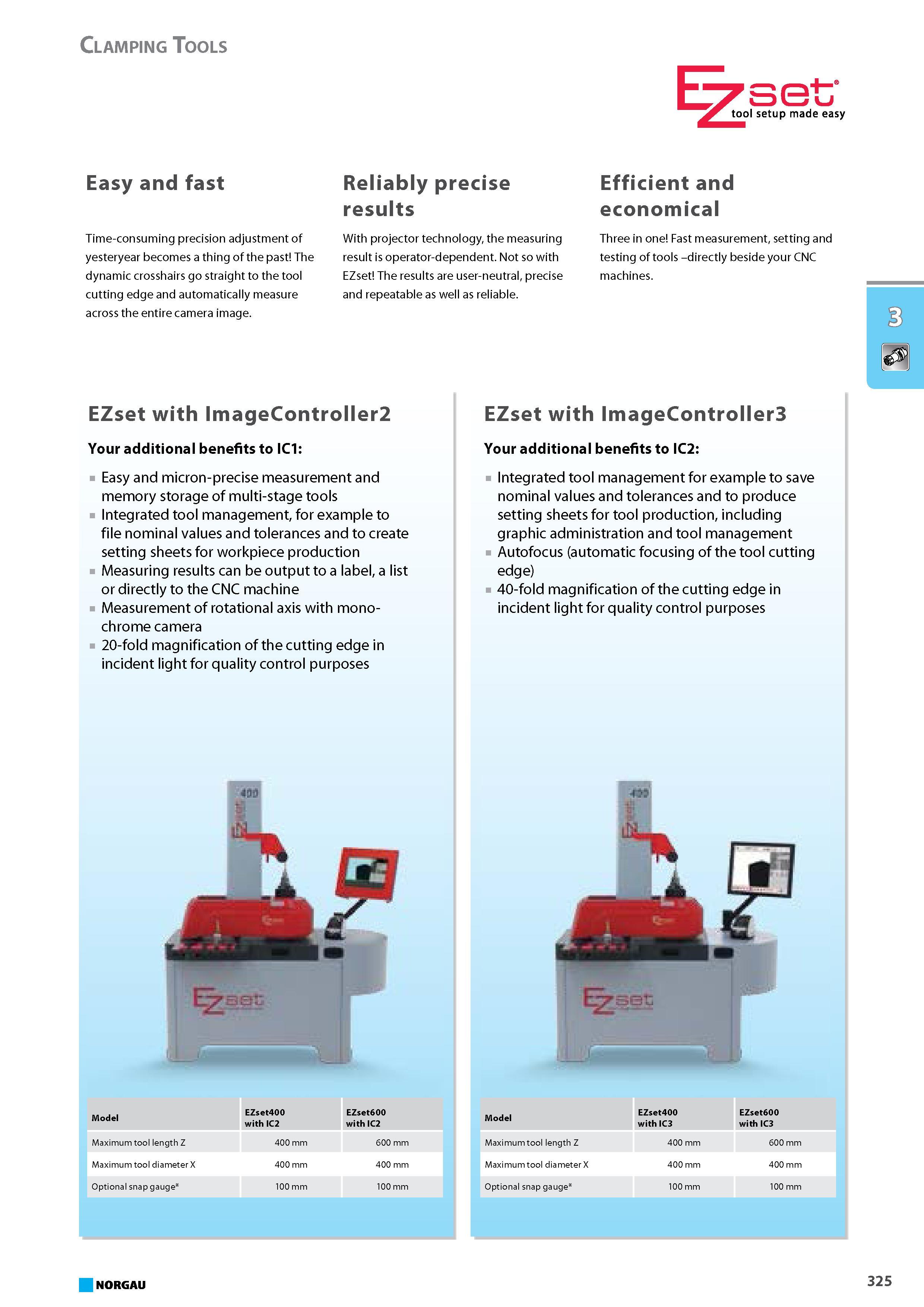

Time-consuming precision adjustment of yesteryear becomes a thing of the past The dynamic crosshairs go straight to the tool cutting edge and automatically measure across the entire camera image. Reliably precise results With projector technology the measuring result is operator-dependent. Not so with EZset The results are user-neutral precise and repeatable as well as reliable. Efficient and economical Three in one Fast measurement setting and testing of tools -directly beside your CNC machines. EZset with ImageController2 Your additional benefits to IC1 Easy and micron-precise measurement and memory storage of multi-stage tools Integrated tool management for example to file nominal values and tolerances and to create setting sheets for workpiece production Measuring results can be output to a label a list or directly to the CNC machine Measurement of rotational axis with monochrome camera 20-fold magnification of the cutting edge in incident light for quality control purposes EZset400 EZset600 Model with IC2 with IC2 Maximum tool length Z 400 mm 600 mm Maximum tool diameter X 400 mm 400 mm Optional snap gauge 100 mm 100 mm EZset with ImageController3 Your additional benefits to IC2 Integrated tool management for example to save nominal values and tolerances and to produce setting sheets for tool production including graphic administration and tool management Autofocus (automatic focusing of the tool cutting edge) 40-fold magnification of the cutting edge in incident light for quality control purposes EZset400 EZset600 Model with IC3 with IC3 Maximum tool length Z 400 mm 600 mm Maximum tool diameter X 400 mm 400 mm Optional snap gauge 100 mm 100 mm NORGAU 325 Clamping Tools r set tool setup made easy Easy and fast
