Thread tapping quick-change chuck Suitable for numerically controlled machines For right- and left-hand threads For holding quick-change inserts with or without safety

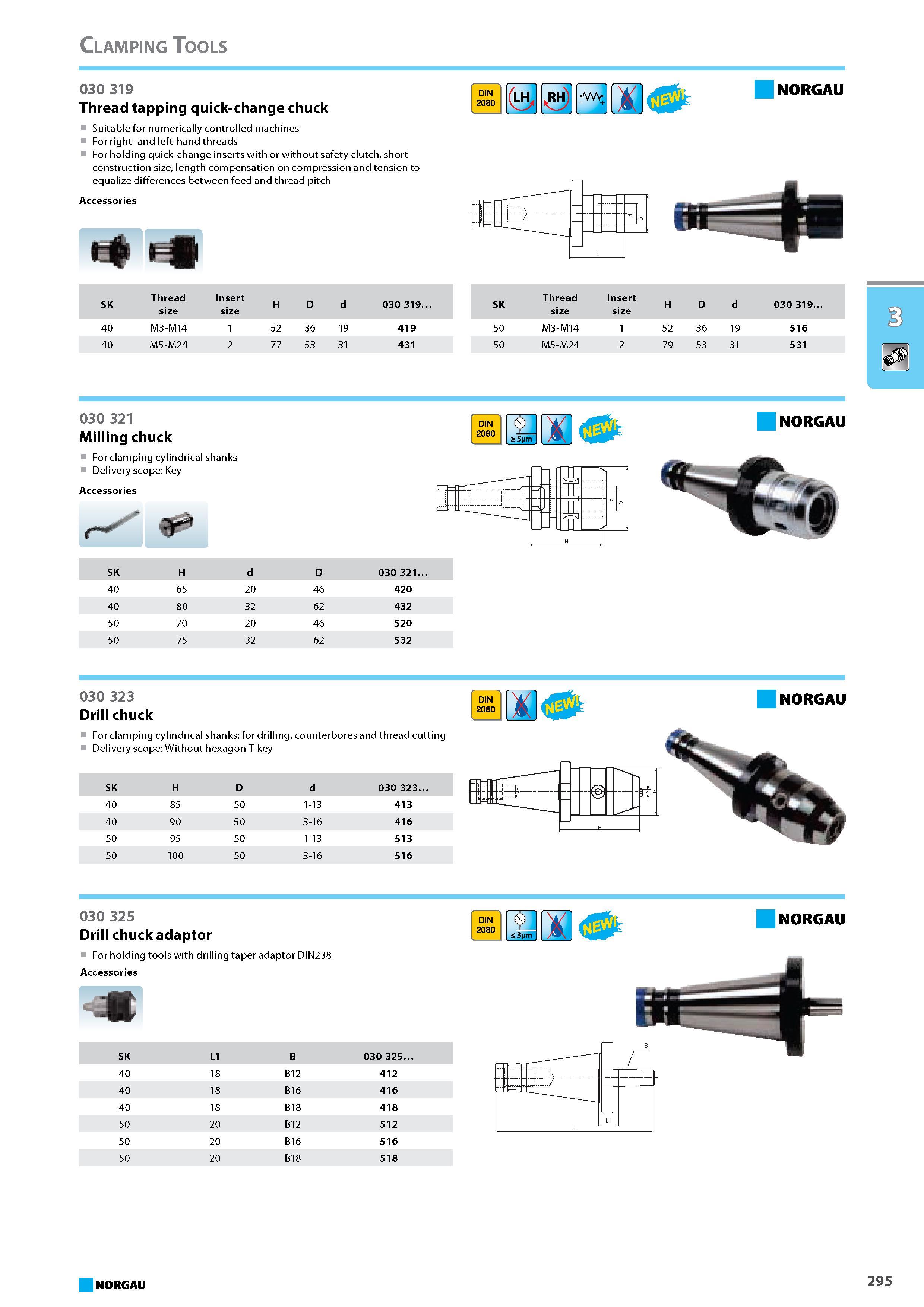

Thread tapping quick-change chuck Suitable for numerically controlled machines For right- and left-hand threads For holding quick-change inserts with or without safety clutch short construction size length compensation on compression and tension to equalize differences between feed and thread pitch Accessories DIN 2080 Wv NORGAU t Hi SK H D d SK H D d size size 030 319. size size 030 319. 40 M3-M14 52 36 19 419 50 M3-M14 1 52 36 19 516 40 M5-M24 2 77 53 31 431 50 M5-M24 2 79 53 31 531 030 321 Milling chuck For clamping cylindrical shanks Delivery scope Key Accessories DIN 2080 '5L C NORGAU SK H d D 030 321. 40 65 20 46 420 40 80 32 62 432 50 70 20 46 520 50 75 32 62 532 030 323 Drill chuck For clamping cylindrical shanks for drilling counterbores and thread cutting Delivery scope Without hexagon T-key SK H D d 030 323. 40 85 50 1-13 413 40 90 50 3-16 416 50 95 50 1-13 513 50 100 50 3-16 516 DIN 2080 NORGAU Jpk 030 325 Drill chuck adaptor For holding tools with drilling taper adaptor DIN238 Accessories DIN 2080 3lim 53 33 NORGAU SK L1 B 030 325. 40 18 B12 412 40 18 B16 416 40 18 B18 418 50 20 B12 512 50 20 B16 516 50 20 B18 518 NORGAU 295 Clamping Tools 030 319
