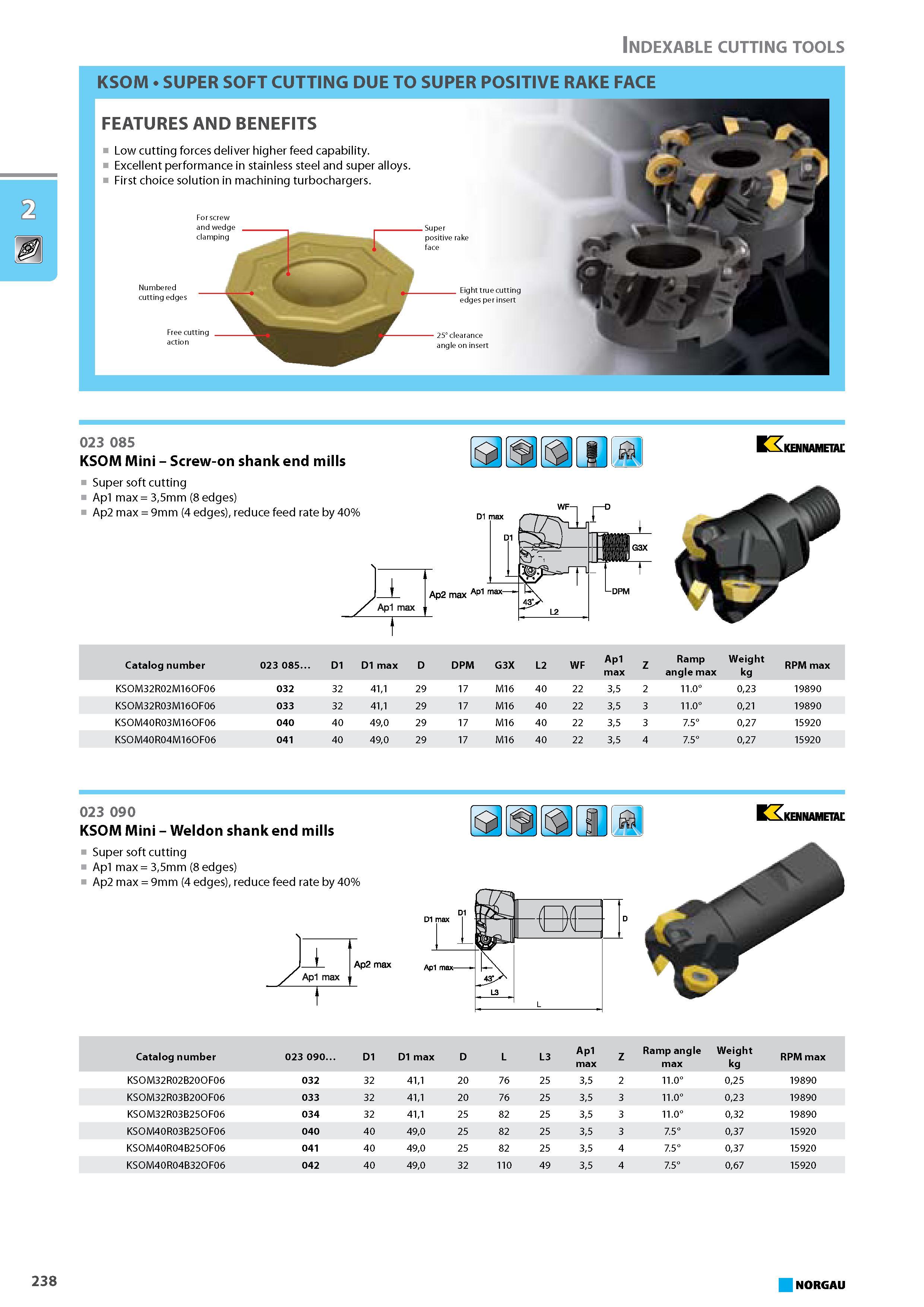

SUPER SOFT CUTTING DUE TO SUPER POSITIVE RAKE FACE FEATURES AND BENEFITS Low cutting forces deliver higher feed capability. Excellent performance in stainless steel and super alloys. First choice solution in machining turbochargers. For screw and wedge clamping Super positive rake face Numbe red cutting edges Eight true cutting edges per insert Free cutting action 25 clearance angle on insert 023 085 KSOM Mini - Screw-on shank end mills Super soft cutting Ap1 max 35mm (8 edges) Ap2 max 9mm (4 edges) reduce feed rate by 40% Catalog number 023 085 D1 D1 max D DPM G3X L2 WF Ap1 Z mp 9 rpm max max angle max kg KSOM32R02M16OF06 032 32 411 29 17 M16 40 22 35 2 11.0 023 19890 KSOM32R03M16OF06 033 32 411 29 17 M16 40 22 35 3 11.0 021 19890 KSOM40R03M16OF06 040 40 490 29 17 M16 40 22 35 3 7.5 027 15920 KSOM40R04M16OF06 041 40 490 29 17 M16 40 22 35 4 7.5 027 15920 023 090 KSOM Mini - Weldon shank end mills Super soft cutting Ap1 max 35mm (8 edges) Ap2 max 9mm (4 edges) reduce feed rate by 40% Ap2 max Ap1 max KENNAMETAL Catalog number 023 090. D1 D1 max D L L3 Ap1 Z Ramp angle Weight RPM max max max kg KSOM32R02B20OF06 032 32 411 20 76 25 35 2 11.0 025 19890 KSOM32R03B20OF06 033 32 411 20 76 25 35 3 11.0 023 19890 KSOM32R03B25OF06 034 32 411 25 82 25 35 3 11.0 032 19890 KSOM40R03B25OF06 040 40 490 25 82 25 35 3 7.5 037 15920 KSOM40R04B25OF06 041 40 490 25 82 25 35 4 7.5 037 15920 KSOM40R04B32OF06 042 40 490 32 110 49 35 4 7.5 067 15920 NORGAU KENNAMETAL D1 max -DPM Ap1 max- Indexable cutting tools 238 KSOM
