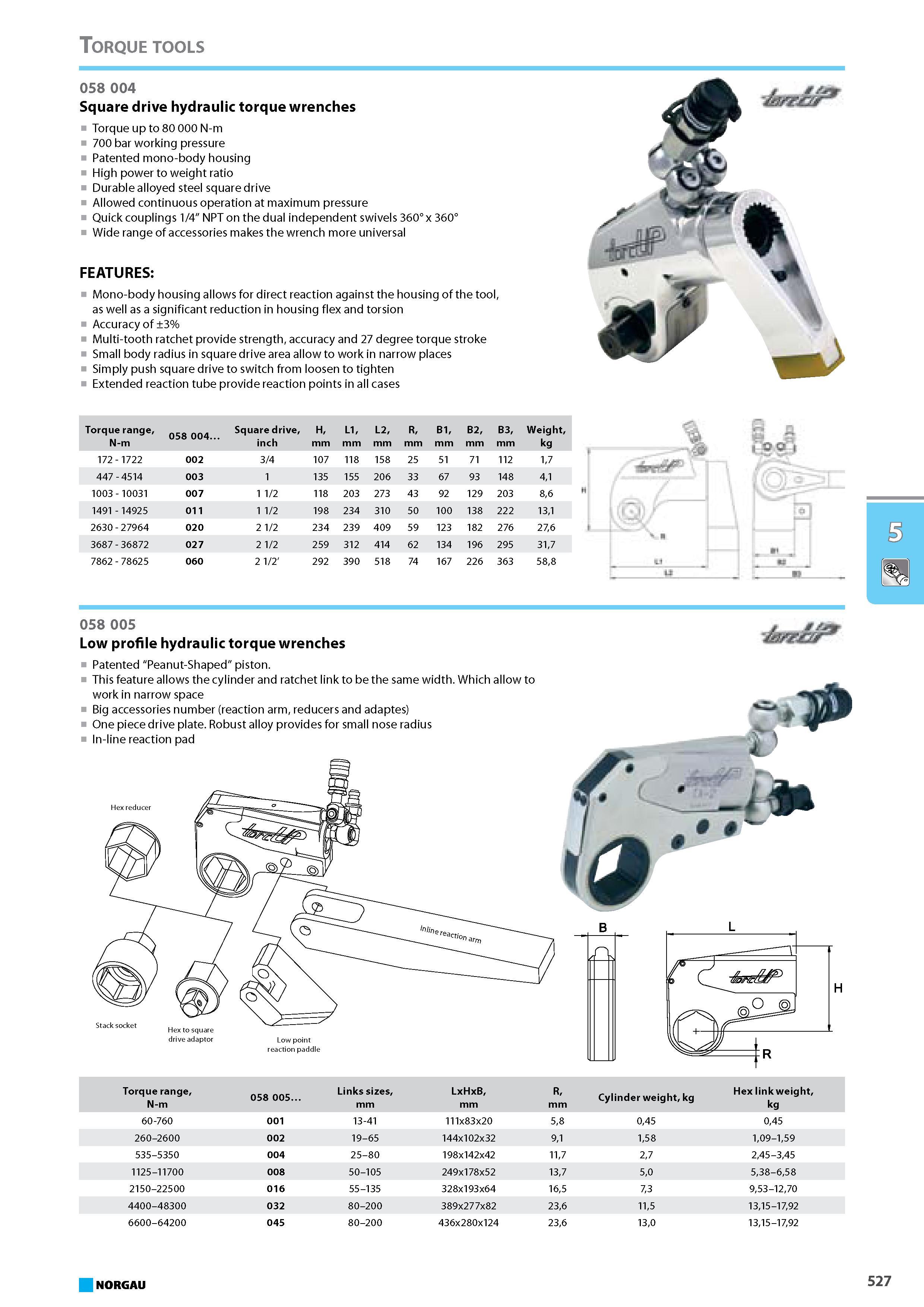

Square drive hydraulic torque wrenches Torque up to 80 000 N-m 700 bar working pressure Patented mono-body housing High power to weight ratio Durable alloyed steel squ

Square drive hydraulic torque wrenches Torque up to 80 000 N-m 700 bar working pressure Patented mono-body housing High power to weight ratio Durable alloyed steel square drive Allowed continuous operation at maximum pressure Quick couplings 1 4 NPT on the dual independent swivels 360 x 360 Wide range of accessories makes the wrench more universal FEATURES Mono-body housing allows for direct reaction against the housing of the tool as well as a significant reduction in housing flex and torsion Accuracy of 3% Multi-tooth ratchet provide strength accuracy and 27 degree torque stroke Small body radius in square drive area allow to work in narrow places Simply push square drive to switch from loosen to tighten Extended reaction tube provide reaction points in all cases Torque range N-m Square drive H L1 L2 R B1 B2 B3 Weight inch mm kg 172 - 1722 002 3 4 107 118 158 25 51 71 112 17 447 - 4514 003 1 135 155 206 33 67 93 148 41 1003 - 10031 007 1 1 2 118 203 273 43 92 129 203 86 1491 - 14925 011 1 1 2 198 234 310 50 100 138 222 131 2630 - 27964 020 2 1 2 234 239 409 59 123 182 276 276 3687 - 36872 027 2 1 2 259 312 414 62 134 196 295 317 7862 - 78625 060 2 1 2' 292 390 518 74 167 226 363 588 058 005 Low profile hydraulic torque wrenches Patented "Peanut-Shaped piston. This feature allows the cylinder and ratchet link to be the same width. Which allow to work in narrow space Big accessories number (reaction arm reducers and adaptes) One piece drive plate. Robust alloy provides for small nose radius In-line reaction pad reaction paddle Torque range N-m 058 005. Links sizes mm LxHxB mm R mm Cylinder weight kg Hex link weight kg 60-760 001 13-41 111x83x20 58 045 045 260-2600 002 19-65 144x102x32 91 158 109-159 535-5350 004 25-80 198x142x42 117 27 245-345 1125-11700 008 50-105 249x178x52 137 50 538-658 2150-22500 016 55-135 328x193x64 165 73 953-1270 4400-48300 032 80-200 389x277x82 236 115 1315-1792 6600-64200 045 80-200 436x280x124 236 130 1315-1792 NORGAU 527 Torque tools 058 004
