Shell mills Aggressive ramping rates Generates superior surface finish Mill 90 walls High RPM capabilities Standard milling cutters will accept insert nose radii up to

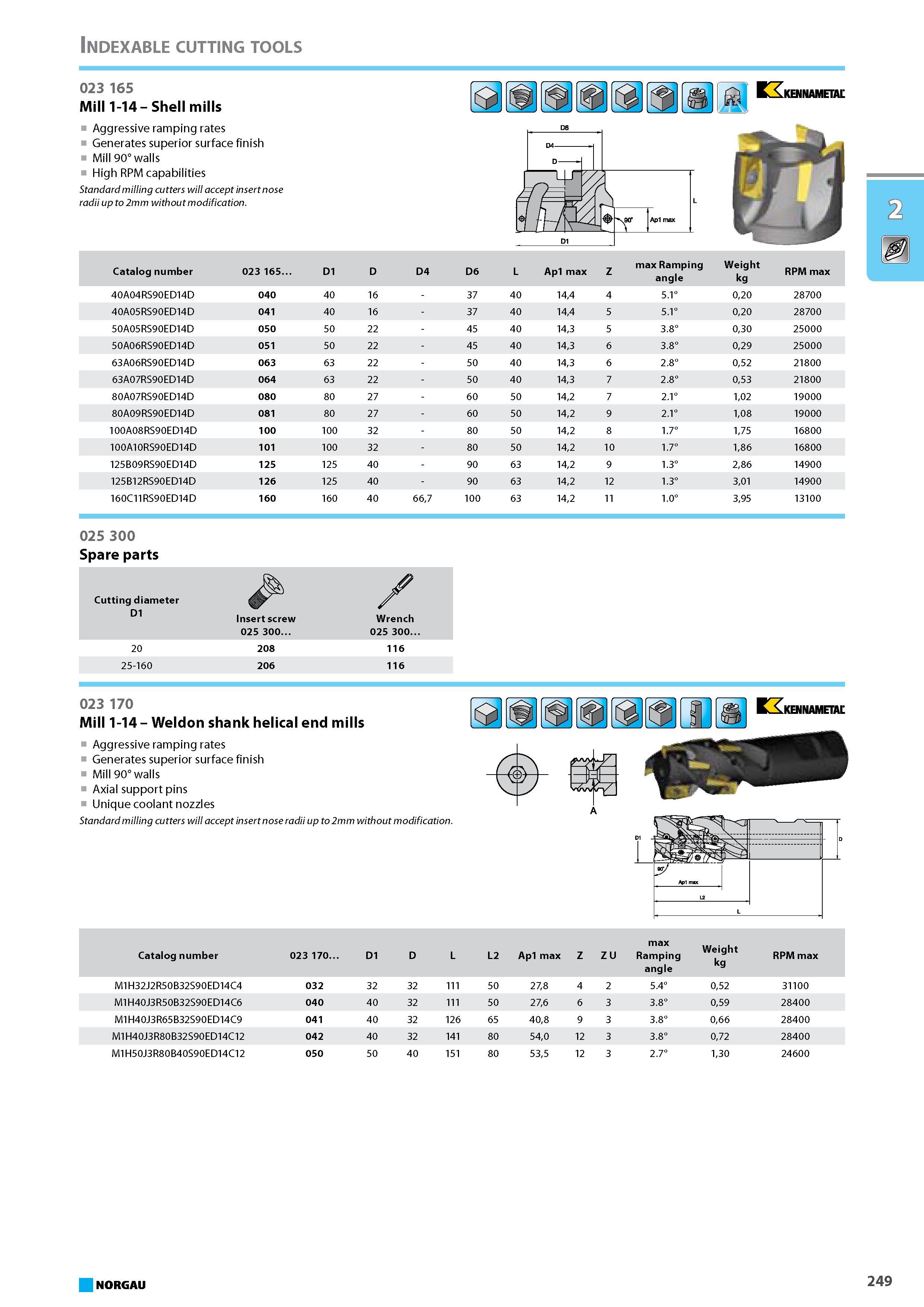

Shell mills Aggressive ramping rates Generates superior surface finish Mill 90 walls High RPM capabilities Standard milling cutters will accept insert nose radii up to 2mm without modification. Catalog number 023 165. D1 D D4 D6 L Ap1 max Z max Ramping angle Weight kg RPM max 40A04RS90ED14D 040 40 16 37 40 144 4 5.1 020 28700 40A05RS90ED14D 041 40 16 37 40 144 5 5.1 020 28700 50A05RS90ED14D 050 50 22 45 40 143 5 3.8 030 25000 50A06RS90ED14D 051 50 22 45 40 143 6 3.8 029 25000 63A06RS90ED14D 063 63 22 50 40 143 6 2.8 052 21800 63A07RS90ED14D 064 63 22 50 40 143 7 2.8 053 21800 80A07RS90ED14D 080 80 27 60 50 142 7 2.1 102 19000 80A09 RS90 ED14D 081 80 27 60 50 142 9 2.1 108 19000 100A08RS90ED14D 100 100 32 80 50 142 8 1.7 175 16800 100A10RS90ED14D 101 100 32 80 50 142 10 1.7 186 16800 125B09RS90ED14D 125 125 40 90 63 142 9 1.3 286 14900 125B12RS90ED14D 126 125 40 90 63 142 12 1.3 301 14900 160C11RS90ED14D 160 160 40 667 100 63 142 11 1.0 395 13100 025 300 Spare parts Cutting diameter D1 Insert screw Wrench 025 300. 025 300. 20 208 116 25-160 206 116 023 170 Mill 1-14 - Weldon shank helical end mills Aggressive ramping rates Generates superior surface finish Mill 90 walls Axial support pins Unique coolant nozzles Standard milling cutters will accept insert nose radii up to 2mm without modification. Catalog number 023 170. D1 D L L2 Ap1 max Z Z U max Ramping angle Weight kg RPM max M1H32J2R50B32S90ED14C4 032 32 32 111 50 278 4 2 5.4 052 31100 M1H40J3R50B32S90ED14C6 040 40 32 111 50 276 6 3 3.8 059 28400 M1H40J3R65B32S90ED14C9 041 40 32 126 65 408 9 3 3.8 066 28400 M1H40J3R80B32S90ED14C12 042 40 32 141 80 540 12 3 3.8 072 28400 M1H50J3R80B40S90ED14C12 050 50 40 151 80 535 12 3 2.7 130 24600 NORGAU 249 Indexable cutting tools 023 165
