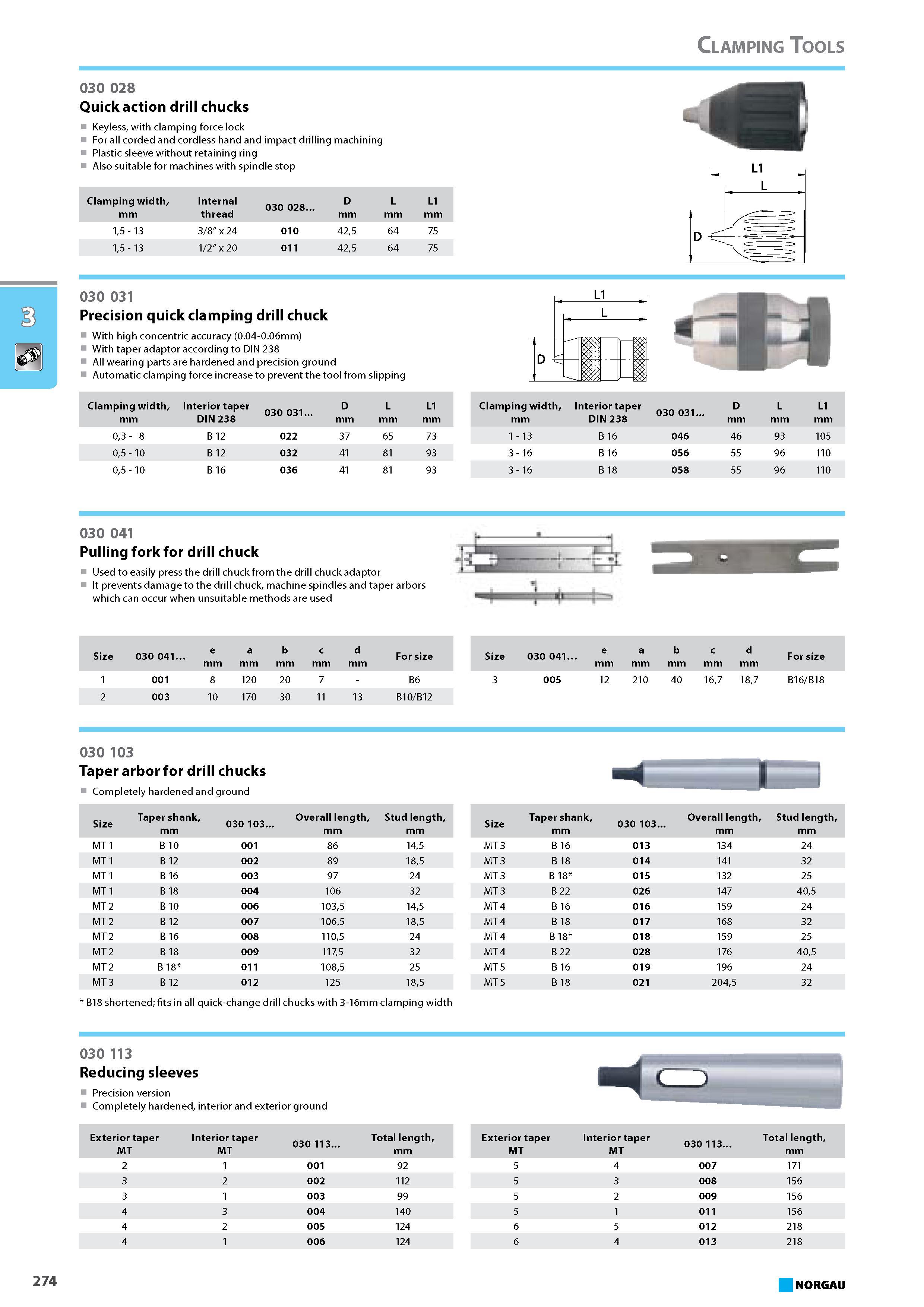

Quick action drill chucks Keyless with clamping force lock For all corded and cordless hand and impact drilling machining Plastic sleeve without retaining ring Also suitable for machines with spindle stop Clamping width Internal 030 028 D L L1 mm thread mm 15 - 13 3/8" x 24 010 425 64 75 15 - 13 1/2" x 20 011 425 64 75 030 031 Precision quick clamping drill chuck With high concentric accuracy (0.04-0.06mm) With taper adaptor according to DIN 238 All wearing parts are hardened and precision ground Automatic clamping force increase to prevent the tool from slipping Clamping width Interior taper 030 031 D L L1 mm DIN 238 mm 03 - 8 B 12 022 37 65 73 05 - 10 B 12 032 41 81 93 05 - 10 B 16 036 41 81 93 Clamping width mm Interior taper DIN 238 030 031 D mm L mm L1 mm 1 - 13 B 16 046 46 93 105 3 - 16 B 16 056 55 96 110 3 - 16 B 18 058 55 96 110 030 041 Pulling fork for drill chuck Used to easily press the drill chuck from the drill chuck adaptor It prevents damage to the drill chuck machine spindles and taper arbors which can occur when unsuitable methods are used Size 030 041 e a b c d For size mm Size 030 041. e a b c d For size mm 1 001 8 120 20 7 - B6 3 005 12 210 40 167 187 B16 B18 2 003 10 170 30 11 13 B10 B12 030 103 Taper arbor for drill chucks Completely hardened and ground Size Taper shank 030 103 Overall length Stud length mm MT 1 B 10 001 86 145 MT 1 B 12 002 89 185 MT 1 B 16 003 97 24 Size Taper shank 030 103 Overall length Stud length mm MT 3 B 16 013 134 24 MT 3 B 18 014 141 32 MT 3 B 18 015 132 25 MT 1 B 18 004 106 32 MT 3 B 22 026 147 405 MT 2 B 10 006 1035 145 MT 2 B 12 007 1065 185 MT 2 B 16 008 1105 24 MT 2 B 18 009 1175 32 MT 2 B 18 011 1085 25 MT 3 B 12 012 125 185 MT 4 B 16 016 159 24 MT 4 B 18 017 168 32 MT 4 B 18 018 159 25 MT 4 B 22 028 176 405 MT 5 B 16 019 196 24 MT5 B18 021 2045 32 B18 shortened fits in all quick-change drill chucks with 3-16mm clamping width 030 113 Reducing sleeves Precision version Completely hardened interior and exterior ground 274 NORGAU Clamping Tools 030 028
