NORGAU | Каталог NORGAU 2015 Инструмент (Всего 832 стр.) |
|||||
|

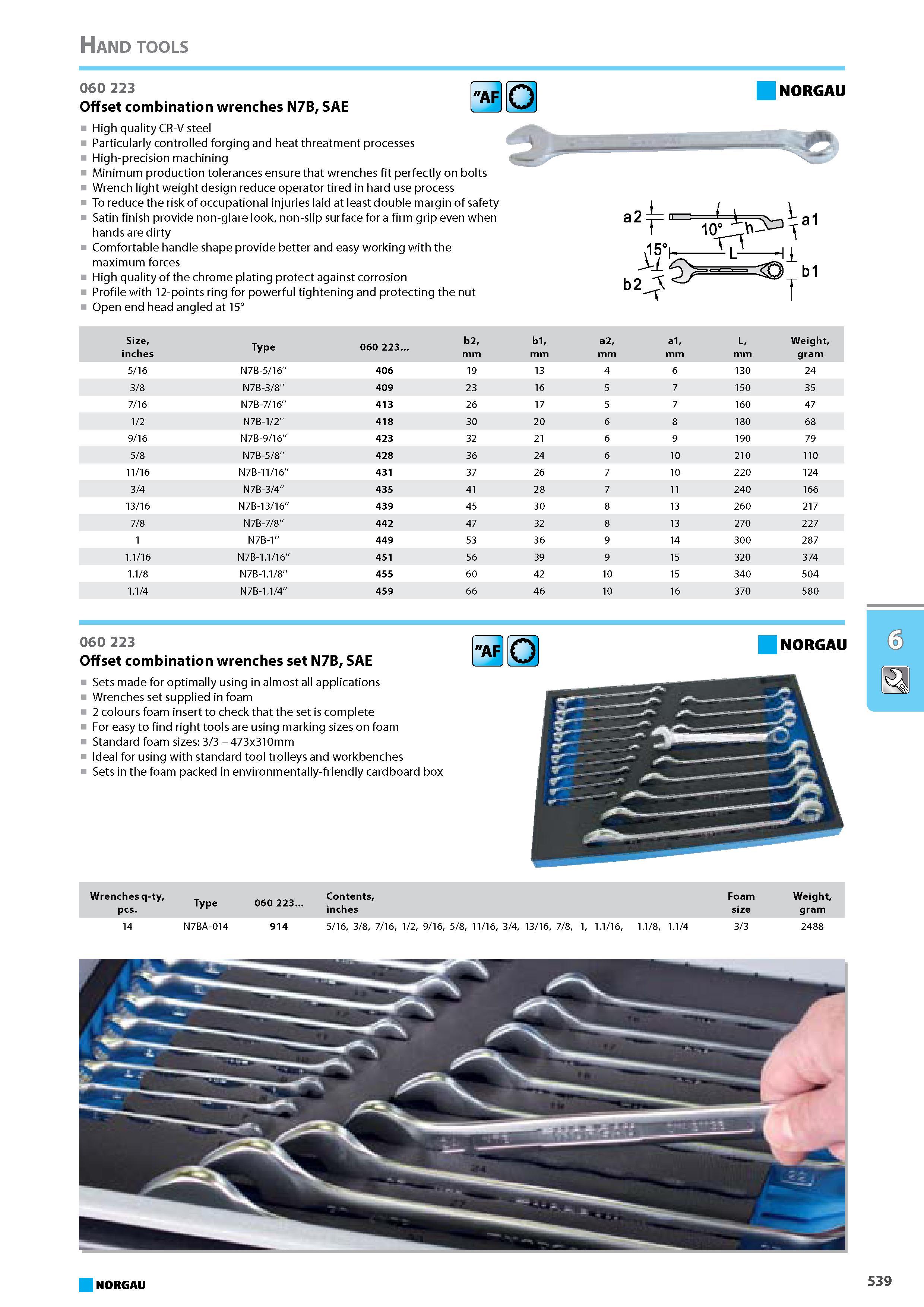

555 Каталог NORGAU 2014 Инструменты Оборудование Стр.539 |
|||||
Offset combination wrenches N7B SAE AF NORGAU High quality CR-V steel Particularly controlled forging and heat threatment processes High-precision machining Minimum prOffset combination wrenches N7B SAE AF NORGAU High quality CR-V steel Particularly controlled forging and heat threatment processes High-precision machining Minimum production tolerances ensure that wrenches fit perfectly on bolts Wrench light weight design reduce operator tired in hard use process To reduce the risk of occupational injuries laid at least double margin of safety Satin finish provide non-glare look non-slip surface for a firm grip even when hands are dirty Comfortable handle shape provide better and easy working with the maximum forces High quality of the chrome plating protect against corrosion Profile with 12-points ring for powerful tightening and protecting the nut Open end head angled at 15 a1 b1 Size inches Type 060 223 b2 mm b1 mm a2 mm a1 mm L mm Weight gram 5 16 N7B-5 16'' 406 19 13 4 6 130 24 3 8 N7B-3/8''409 23 16 5 7 150 35 7 16 N7B-7 16'' 413 26 17 5 7 160 47 1 2 N7B-1/2'' 418 30 20 6 8 180 68 9 16 N7B-9 16'' 423 32 21 6 9 190 79 5 8 N7B-5/8'' 428 36 24 6 10 210 110 11 16 N7B-11 16'' 431 37 26 7 10 220 124 3 4 N7B-3/4'' 435 41 28 7 11 240 166 13 16 N7B-13 16'' 439 45 30 8 13 260 217 7 8 N7B-7 8'' 442 47 32 8 13 270 227 N7B-1'' 449 53 36 9 14 300 287 1.1 16 N7B-1.1 16'' 451 56 39 9 15 320 374 1.1 8 N7B-1.1/8'' 455 60 42 10 15 340 504 1.1 4 N7B-1.1/4'' 459 66 46 10 16 370 580 060 223 Offset combination wrenches set N7B SAE Sets made for optimally using in almost all applications Wrenches set supplied in foam 2 colours foam insert to check that the set is complete For easy to find right tools are using marking sizes on foam Standard foam sizes 3 3 - 473x310mm Ideal for using with standard tool trolleys and workbenches Sets in the foam packed in environmentally-friendly cardboard box NORGAU El Wrenches q-ty pcs. Type 060 223 Contents inches Foam size Weight gram N7BA-014 5 16 3 8 7 16 1 2 9 16 5 8 11 16 3 4 13 16 7 8 1 1.1 16 1.1 8 1.1 4 3 3 14 914 NORGAU 539 Hand tools 060 223 |
|||||
