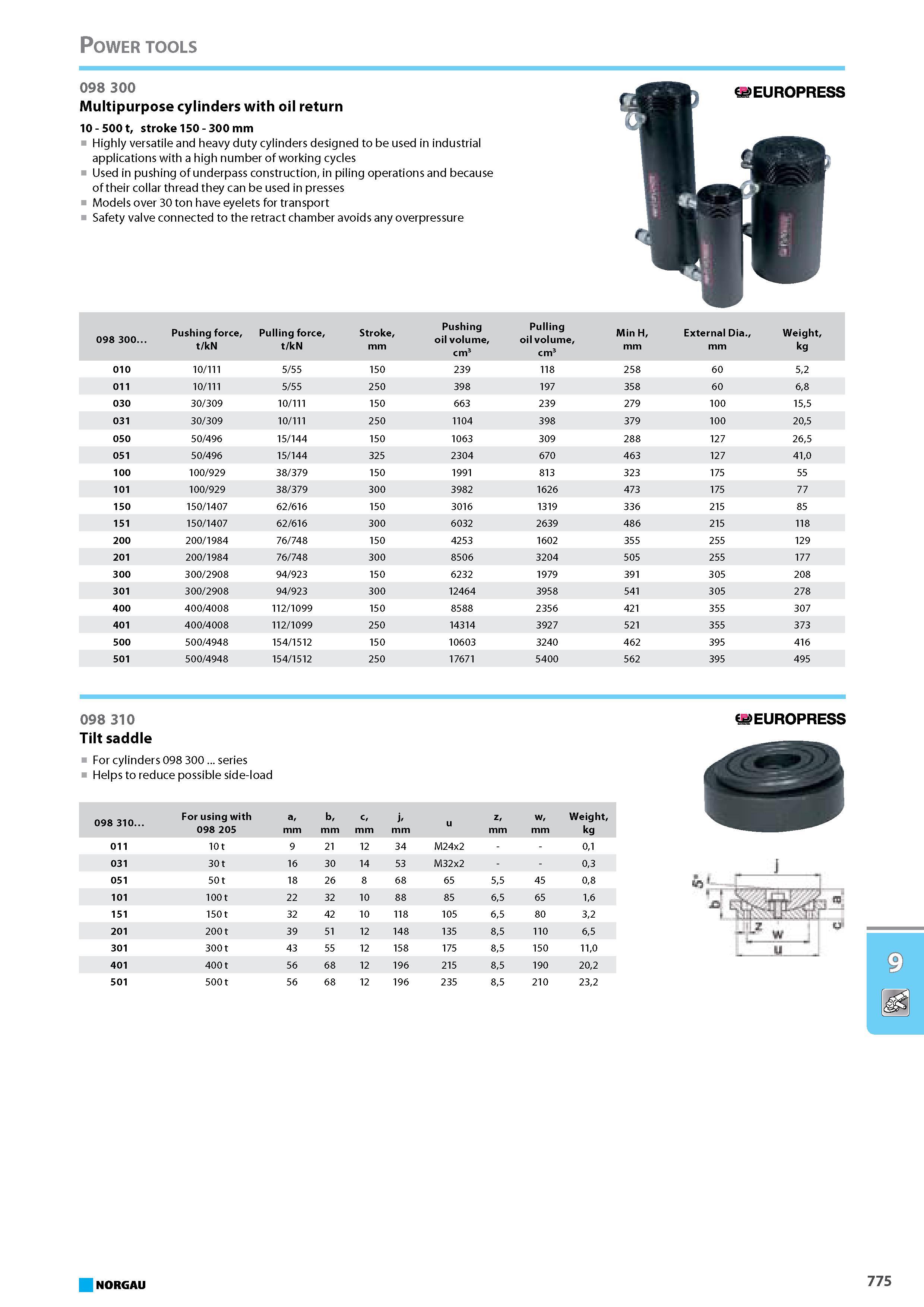

Multipurpose cylinders with oil return 10 - 500 t stroke 150 - 300 mm Highly versatile and heavy duty cylinders designed to be used in industrial applications with a high number of working cycles Used in pushing of underpass construction in piling operations and because of their collar thread they can be used in presses Models over 30 ton have eyelets for transport Safety valve connected to the retract chamber avoids any overpressure Pushing force Pulling force Stroke P rnci PuNmg Min H External Dia. Weight 098 300 7 oil volume oil volume t kN t kN mm 3 3 mm kg 010 10 111 5 55 150 239 118 258 60 52 011 10 111 5 55 250 398 197 358 60 68 030 30 309 10 111 150 663 239 279 100 155 031 30 309 10 111 250 1104 398 379 100 205 050 50 496 15 144 150 1063 309 288 127 265 051 50 496 15 144 325 2304 670 463 127 410 100 100 929 38 379 150 1991 813 323 175 55 101 100 929 38 379 300 3982 1626 473 175 77 150 150 1407 62 616 150 3016 1319 336 215 85 151 150 1407 62 616 300 6032 2639 486 215 118 200 200 1984 76 748 150 4253 1602 355 255 129 201 200 1984 76 748 300 8506 3204 505 255 177 300 300 2908 94 923 150 6232 1979 391 305 208 301 300 2908 94 923 300 12464 3958 541 305 278 400 400 4008 112 1099 150 8588 2356 421 355 307 401 400 4008 112 1099 250 14314 3927 521 355 373 500 500 4948 154 1512 150 10603 3240 462 395 416 501 500 4948 154 1512 250 17671 5400 562 395 495 098 310 C EUROPRESS Tilt saddle For cylinders 098 300 series Helps to reduce possible side-load 098 310. For using with a b c j u z w Weight 098 205 mm kg 011 10 t 9 21 12 34 M24x2 01 031 30 t 16 30 14 53 M32x2 03 051 50 t 18 26 8 68 65 55 45 08 101 100 t 22 32 10 88 85 65 65 16 151 150 t 32 42 10 118 105 65 80 32 201 200 t 39 51 12 148 135 85 110 65 301 300 t 43 55 12 158 175 85 150 110 401 400 t 56 68 12 196 215 85 190 202 501 500 t 56 68 12 196 235 85 210 232 NORGAU 775 Power tools 098 300
