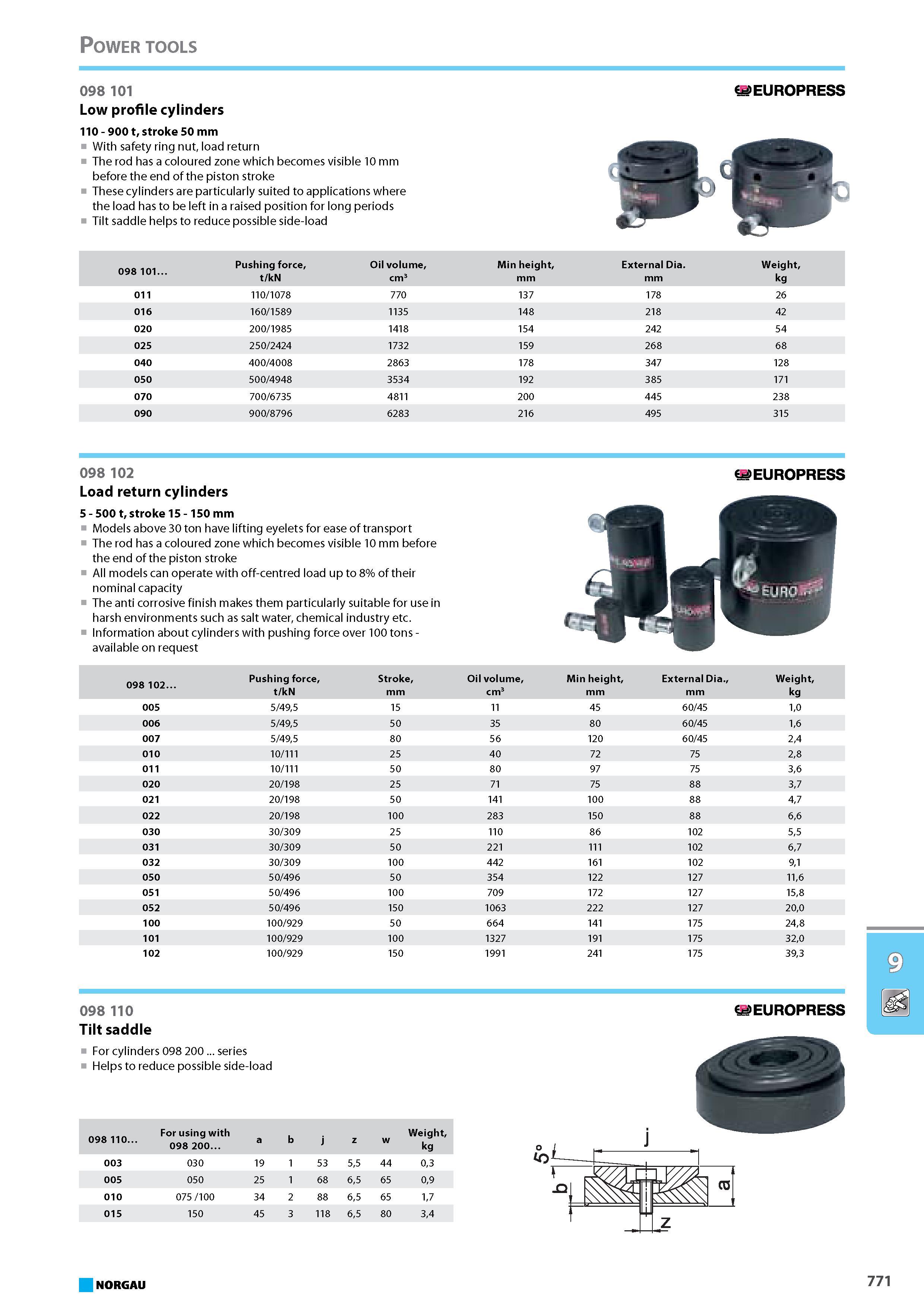

Low profile cylinders 110 - 900 t stroke 50 mm With safety ring nut load return The rod has a coloured zone which becomes visible 10 mm before the end of the piston st

Low profile cylinders 110 - 900 t stroke 50 mm With safety ring nut load return The rod has a coloured zone which becomes visible 10 mm before the end of the piston stroke These cylinders are particularly suited to applications where the load has to be left in a raised position for long periods Tilt saddle helps to reduce possible side-load EUROPRESS 098 101 Pushing force t kN Oil volume cm3 Min height mm External Dia. mm Weight kg 011 110 1078 770 137 178 26 016 160 1589 1135 148 218 42 020 200 1985 1418 154 242 54 025 250 2424 1732 159 268 68 040 400 4008 2863 178 347 128 050 500 4948 3534 192 385 171 070 700 6735 4811 200 445 238 090 900 8796 6283 216 495 315 098 102 Load return cylinders 5 - 500 t stroke 15 - 150 mm Models above 30 ton have lifting eyelets for ease of transport The rod has a coloured zone which becomes visible 10 mm before the end of the piston stroke All models can operate with off-centred load up to 8% of their nominal capacity The anti corrosive finish makes them particularly suitable for use in harsh environments such as salt water chemical industry etc. Information about cylinders with pushing force over 100 tons -available on request EUROPRESS 098 102. Pushing force t kN Stroke mm Oil volume cm3 Min height mm External Dia. mm Weight kg 005 5 495 15 11 45 60 45 10 006 5 495 50 35 80 60 45 16 007 5 495 80 56 120 60 45 24 010 10 111 25 40 72 75 28 011 10 111 50 80 97 75 36 020 20 198 25 71 75 88 37 021 20 198 50 141 100 88 47 022 20 198 100 283 150 88 66 030 30 309 25 110 86 102 55 031 30 309 50 221 111 102 67 032 30 309 100 442 161 102 91 050 50 496 50 354 122 127 116 051 50 496 100 709 172 127 158 052 50 496 150 1063 222 127 200 100 100 929 50 664 141 175 248 101 100 929 100 1327 191 175 320 102 100 929 150 098 110 Tilt saddle For cylinders 098 200 series Helps to reduce possible side-load 098 110. For using with 098 200. a b j z w Weight kg 003 030 19 1 53 55 44 03 005 050 25 1 68 65 65 09 010 075 100 34 2 88 65 65 17 015 150 45 3 118 65 80 34 NORGAU 771 Power tools 098 101
