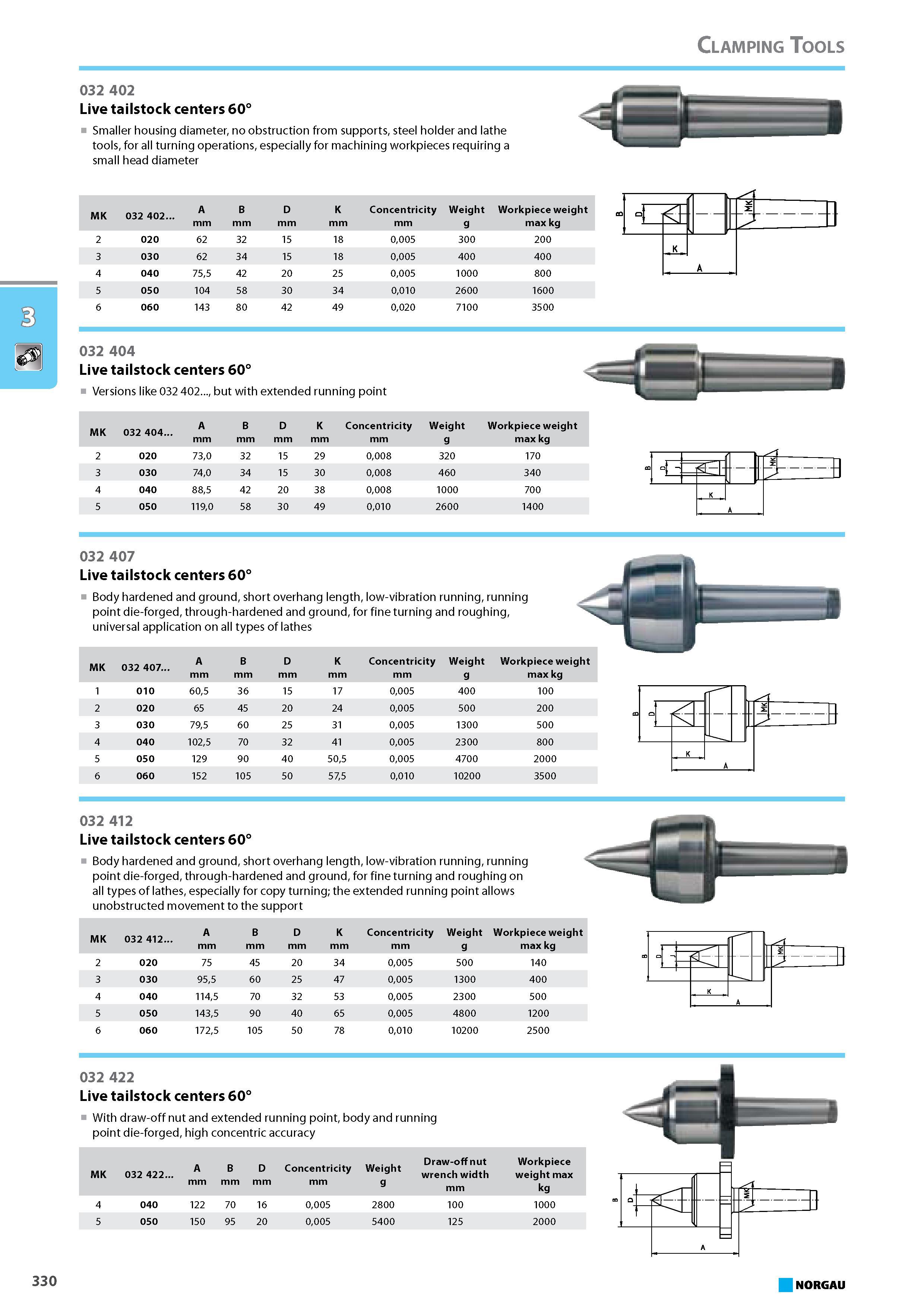

Live tailstock centers 60 Smaller housing diameter no obstruction from supports steel holder and lathe tools for all turning operations especially for machining workpieces requiring a small head diameter MK 032 402 A mm B mm D mm K mm Concentricity mm Weight g Workpiece weight max kg 2 020 62 32 15 18 0005 300 200 3 030 62 34 15 18 0005 400 400 4 040 755 42 20 25 0005 1000 800 5 050 104 58 30 34 0010 2600 1600 6 060 143 80 42 49 0020 7100 3500 - K A 032 404 Live tailstock centers 60 Versions like 032 402 but with extended running point MK 032 404 A mm B mm D mm K mm Concentricity mm Weight g Workpiece weight max kg 2 020 730 32 15 29 0008 320 170 3 030 740 34 15 30 0008 460 340 4 040 885 42 20 38 0008 1000 700 5 050 1190 58 30 49 0010 2600 1400 Cs 032 407 Live tailstock centers 60 Body hardened and ground short overhang length low-vibration running running point die-forged through-hardened and ground for fine turning and roughing universal application on all types of lathes MK 032 407 A mm B mm D mm K mm Concentricity mm Weight g Workpiece weight max kg 1 010 605 36 15 17 0005 400 100 2 020 65 45 20 24 0005 500 200 3 030 795 60 25 31 0005 1300 500 4 040 1025 70 32 41 0005 2300 800 5 050 129 90 40 505 0005 4700 2000 6 060 152 105 50 575 0010 10200 3500 032 412 Live tailstock centers 60 Body hardened and ground short overhang length low-vibration running running point die-forged through-hardened and ground for fine turning and roughing on all types of lathes especially for copy turning the extended running point allows unobstructed movement to the support MK 032 412 A mm B mm D mm K mm Concentricity mm Weight g Workpiece weight max kg 2 020 75 45 20 34 0005 500 140 3 030 955 60 25 47 0005 1300 400 4 040 1145 70 32 53 0005 2300 500 5 050 1435 90 40 65 0005 4800 1200 6 060 1725 105 50 78 0010 10200 2500 032 422 Live tailstock centers 60 With draw-off nut and extended running point body and running point die-forged high concentric accuracy MK 032 422 A mm B mm D mm Concentricity mm Weight g Draw-off nut wrench width mm Workpiece weight max kg 4 040 122 70 16 0005 2800 100 1000 5 050 150 95 20 0005 5400 125 2000 330 NORGAU Clamping Tools 032 402
