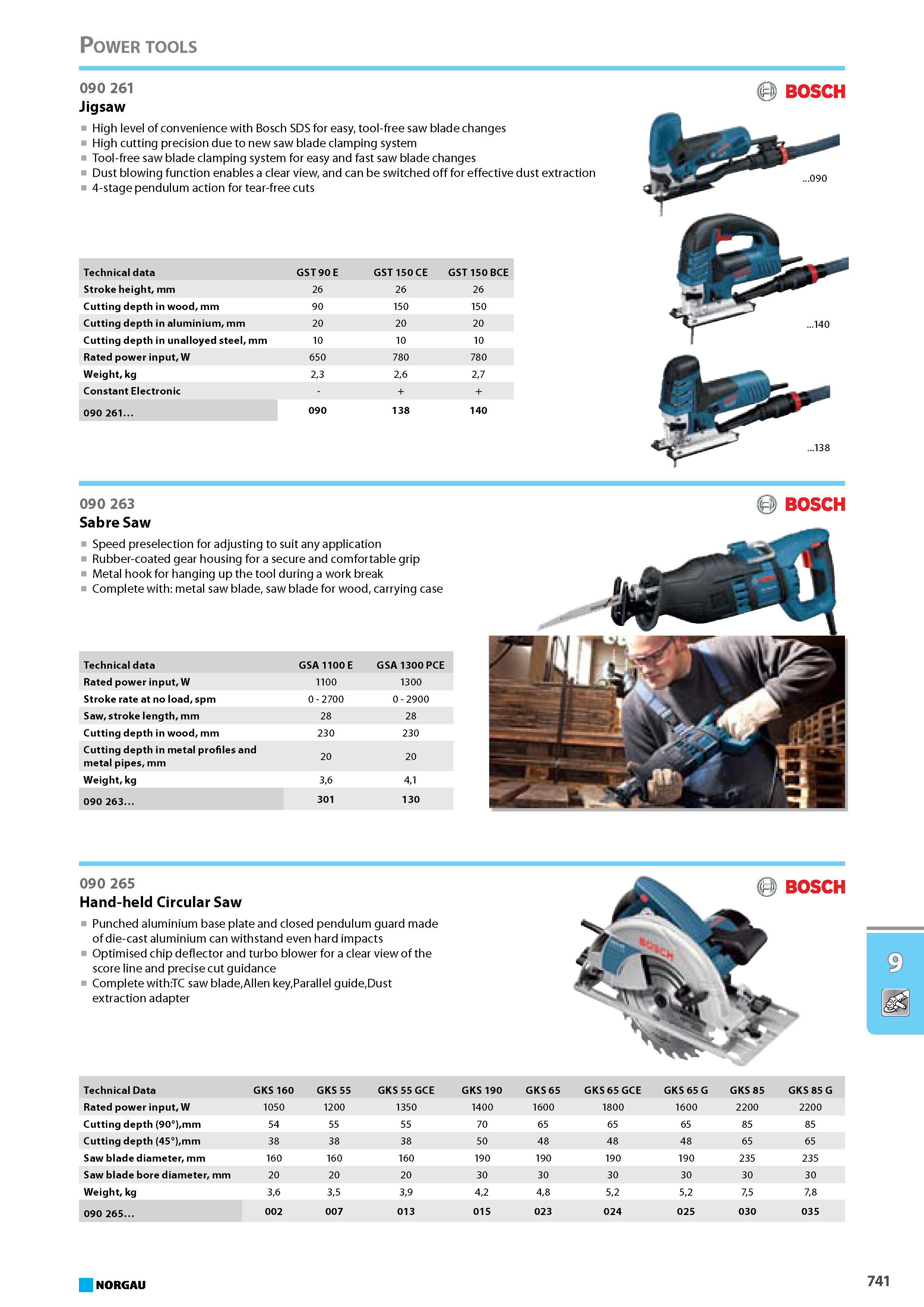

Jigsaw High level of convenience with Bosch SDS for easy tool-free saw blade changes High cutting precision due to new saw blade clamping system Tool-free saw blade clJigsaw High level of convenience with Bosch SDS for easy tool-free saw blade changes High cutting precision due to new saw blade clamping system Tool-free saw blade clamping system for easy and fast saw blade changes Dust blowing function enables a clear view and can be switched off for effective dust extraction 4-stage pendulum action for tear-free cuts Technical data GST 90E GST 150 CE GST 150 BCE Stroke height mm 26 26 26 Cutting depth in wood mm 90 150 150 Cutting depth in aluminium mm 20 20 20 Cutting depth in unalloyed steel mm 10 10 10 Rated power input W 650 780 780 Weight kg 23 26 27 Constant Electronic - 090 261 090 138 140 090 263 Sabre Saw Speed preselection for adjusting to suit any application Rubber-coated gear housing for a secure and comfortable grip Metal hook for hanging up the tool during a work break Complete with metal saw blade saw blade for wood carrying case Technical data GSA 1100E GSA 1300 PCE Rated power input W 1100 1300 Stroke rate at no load spm 0 - 2700 0 - 2900 Saw stroke length mm 28 28 Cutting depth in wood mm 230 230 Cutting depth in metal profiles and metal pipes mm 20 20 Weight kg 36 41 090 263. 301 130 090 265 Hand-held Circular Saw Punched aluminium base plate and closed pendulum guard made of die-cast aluminium can withstand even hard impacts Optimised chip deflector and turbo blower for a clear view of the score line and precise cut guidance Complete withTC saw bladeAllen keyParallel guideDust extraction adapter Technical Data GKS 160 GKS 55 GKS 55 GCE GKS 190 GKS 65 GKS 65 GCE GKS 65 G GKS 85 GKS 85 G Rated power input W 1050 1200 1350 1400 1600 1800 1600 2200 2200 Cutting depth (90)mm 54 55 55 70 65 65 65 85 85 Cutting depth (45)mm 38 38 38 50 48 48 48 65 65 Saw blade diameter mm 160 160 160 190 190 190 190 235 235 Saw blade bore diameter mm 20 20 20 30 30 30 30 30 30 Weight kg 36 35 39 42 48 52 52 75 78 090 265. 002 007 013 015 023 024 025 030 035 NORGAU 741 Power tools 090 261 |
|||||
