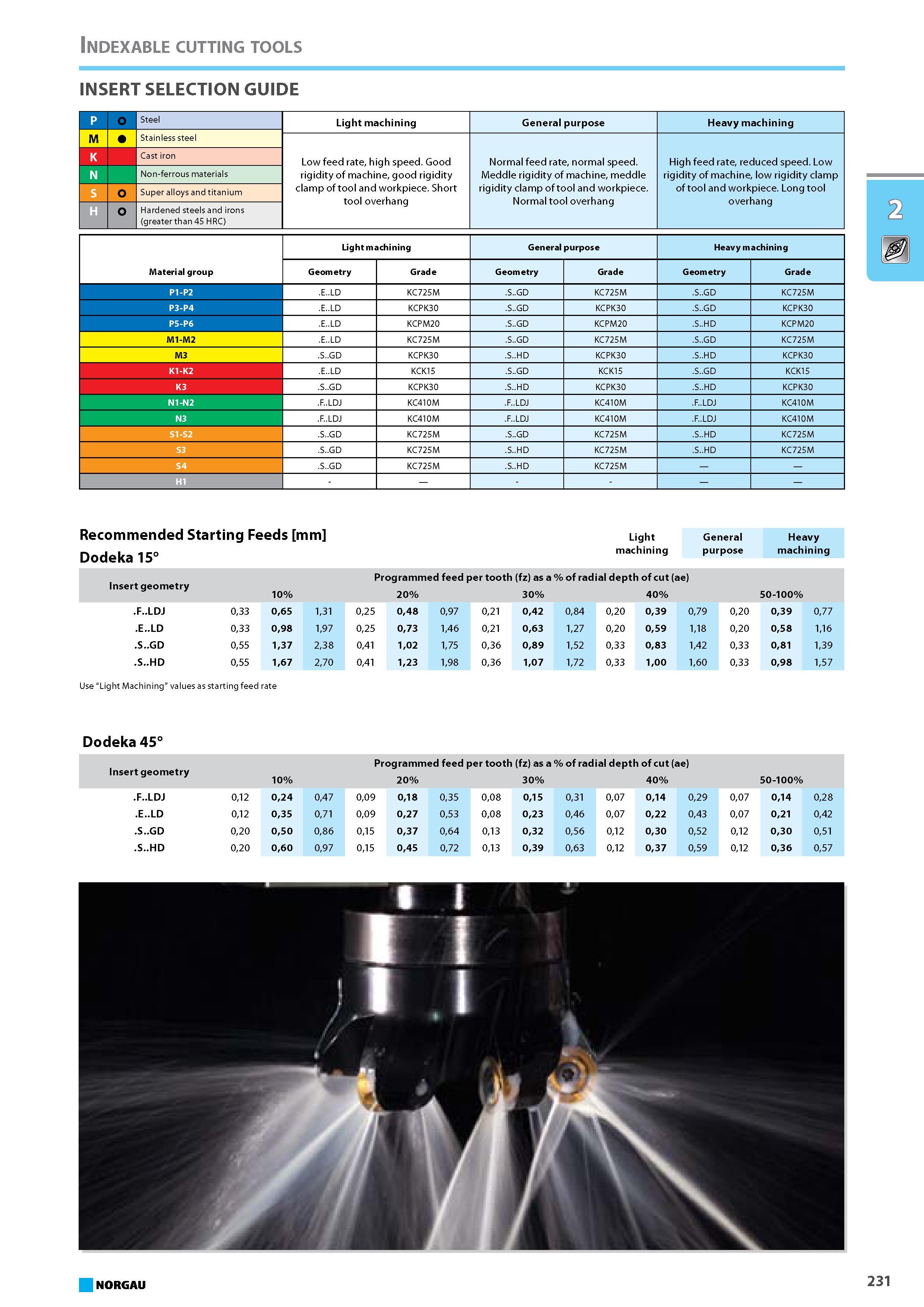

INSERT SELECTION GUIDE P Steel Light machining General purpose Heavy machining M Stainless steel Low feed rate high speed. Good rigidity of machine good rigidity clamp of tool and workpiece. Short tool overhang Normal feed rate normal speed. Meddle rigidity of machine meddle rigidity clamp of tool and workpiece. Normal tool overhang High feed rate reduced speed. Low rigidity of machine low rigidity clamp of tool and workpiece. Long tool overhang K Cast iron N Non-ferrous materials S Super alloys and titanium H Hardened steels and irons (greater than 45 HRC) Material group Light machining General purpose Heavy machining Geometry Grade Geometry Grade Geometry Grade P1-P2 .E..LD KC725M .S..GD KC725M .S..GD KC725M P3-P4 .E..LD KCPK30 .S..GD KCPK30 .S..GD KCPK30 P5-P6 .E..LD KCPM20 .S..GD KCPM20 .S..HD KCPM20 M1-M2 .E..LD KC725M .S..GD KC725M .S..GD KC725M M3 .S..GD KCPK30 .S..HD KCPK30 .S..HD KCPK30 K1-K2 .E..LD KCK15 .S..GD KCK15 .S..GD KCK15 K3 .S..GD KCPK30 .S..HD KCPK30 .S..HD KCPK30 N1-N2 .F..LDJ KC410M .F..LDJ KC410M .F..LDJ KC410M N3 .F..LDJ KC410M .F..LDJ KC410M .F..LDJ KC410M S1-S2 .S..GD KC725M .S..GD KC725M .S..HD KC725M S3 .S..GD KC725M .S..HD KC725M .S..HD KC725M S4 .S..GD KC725M .S..HD KC725M H1 Recommended Starting Feeds mm Dodeka15 Insert geometry Light machining Programmed feed per tooth (fz) as a of radial depth of cut (ae) General Heavy purpose machining 10% 20% 30% 40% 50-100% .F..LDJ 033 065 131 025 048 097 021 042 084 020 039 079 020 039 077 .E..LD 033 098 197 025 073 146 021 063 127 020 059 118 020 058 116 .S..GD 055 137 238 041 102 175 036 089 152 033 083 142 033 081 139 .S..HD 055 167 270 041 123 198 036 107 172 033 100 160 033 098 157 Use "Light Machining" values as starting feed rate Dodeka 45 Programmed feed per tooth (fz) as a of radial depth of cut (ae) 10% 20% 30% 40% 50-100% .F..LDJ 012 024 047 009 018 035 008 015 031 007 014 029 007 014 028 D .L .E. 012 035 071 009 027 053 008 023 046 007 022 043 007 021 042 .S..GD 020 050 086 015 037 064 013 032 056 012 030 052 012 030 051 D .H .S. 020 060 097 015 045 072 013 039 063 012 037 059 012 036 057 NORGAU 231 Indexable cutting tools
