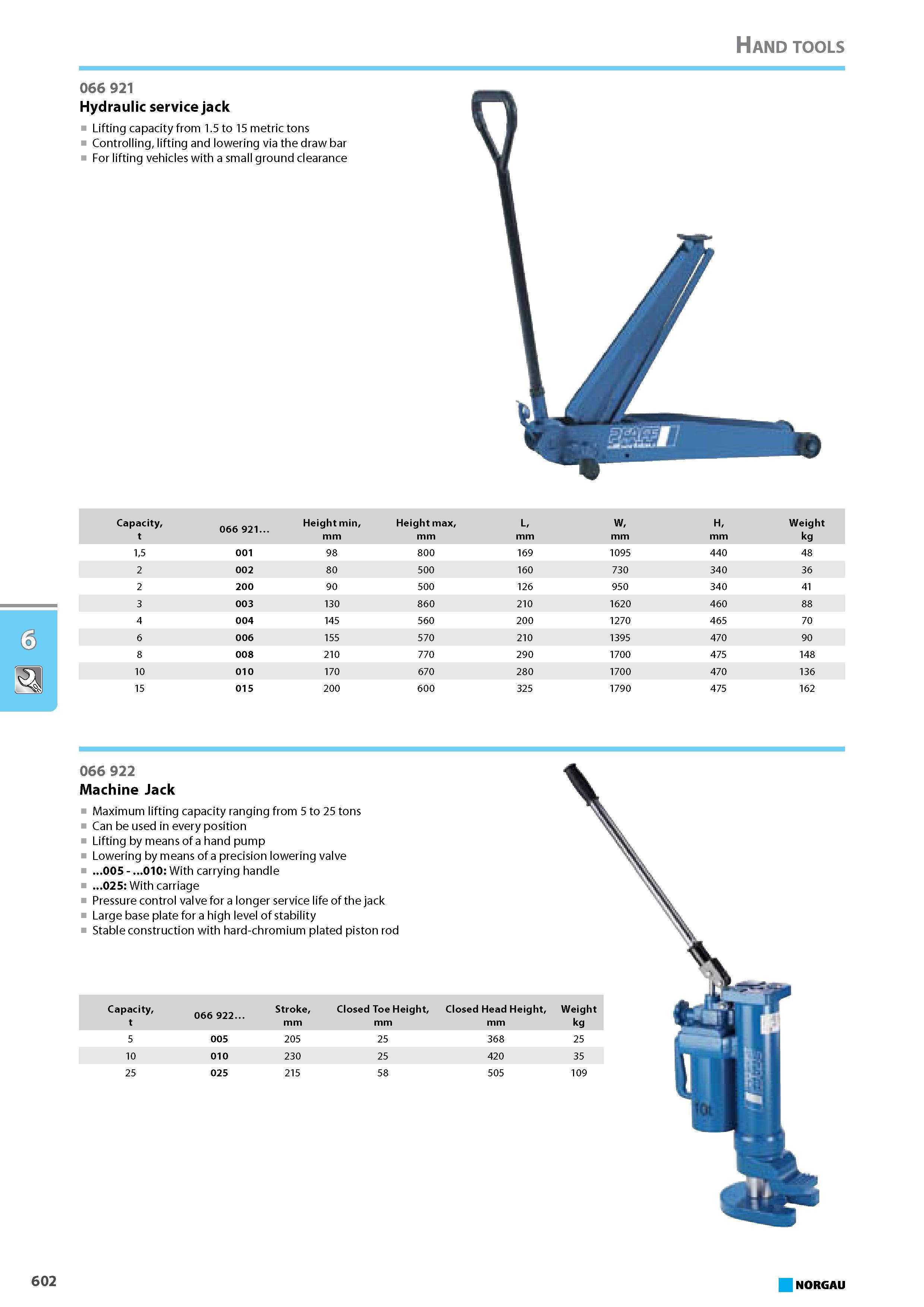

Hydraulic service jack Lifting capacity from 1.5 to 15 metric tons Controlling lifting and lowering via the draw bar For lifting vehicles with a small ground clearance

Hydraulic service jack Lifting capacity from 1.5 to 15 metric tons Controlling lifting and lowering via the draw bar For lifting vehicles with a small ground clearance Capacity t 066 921 Height min mm Height max mm L mm W mm H mm Weight kg 15 001 98 800 169 1095 440 48 2 002 80 500 160 730 340 36 2 200 90 500 126 950 340 41 3 003 130 860 210 1620 460 88 4 004 145 560 200 1270 465 70 6 006 155 570 210 1395 470 90 8 008 210 770 290 1700 475 148 10 010 170 670 280 1700 470 136 15 015 200 600 325 1790 475 162 Capacity 066 922 Stroke Closed Toe Height Closed Head Height Weight t mm kg 066 922 Machine Jack Maximum lifting capacity ranging from 5 to 25 tons Can be used in every position Lifting by means of a hand pump Lowering by means of a precision lowering valve 005 - 010 With carrying handle 025 With carriage Pressure control valve for a longer service life of the jack Large base plate for a high level of stability Stable construction with hard-chromium plated piston rod NORGAU Hand tools 602 066 921
