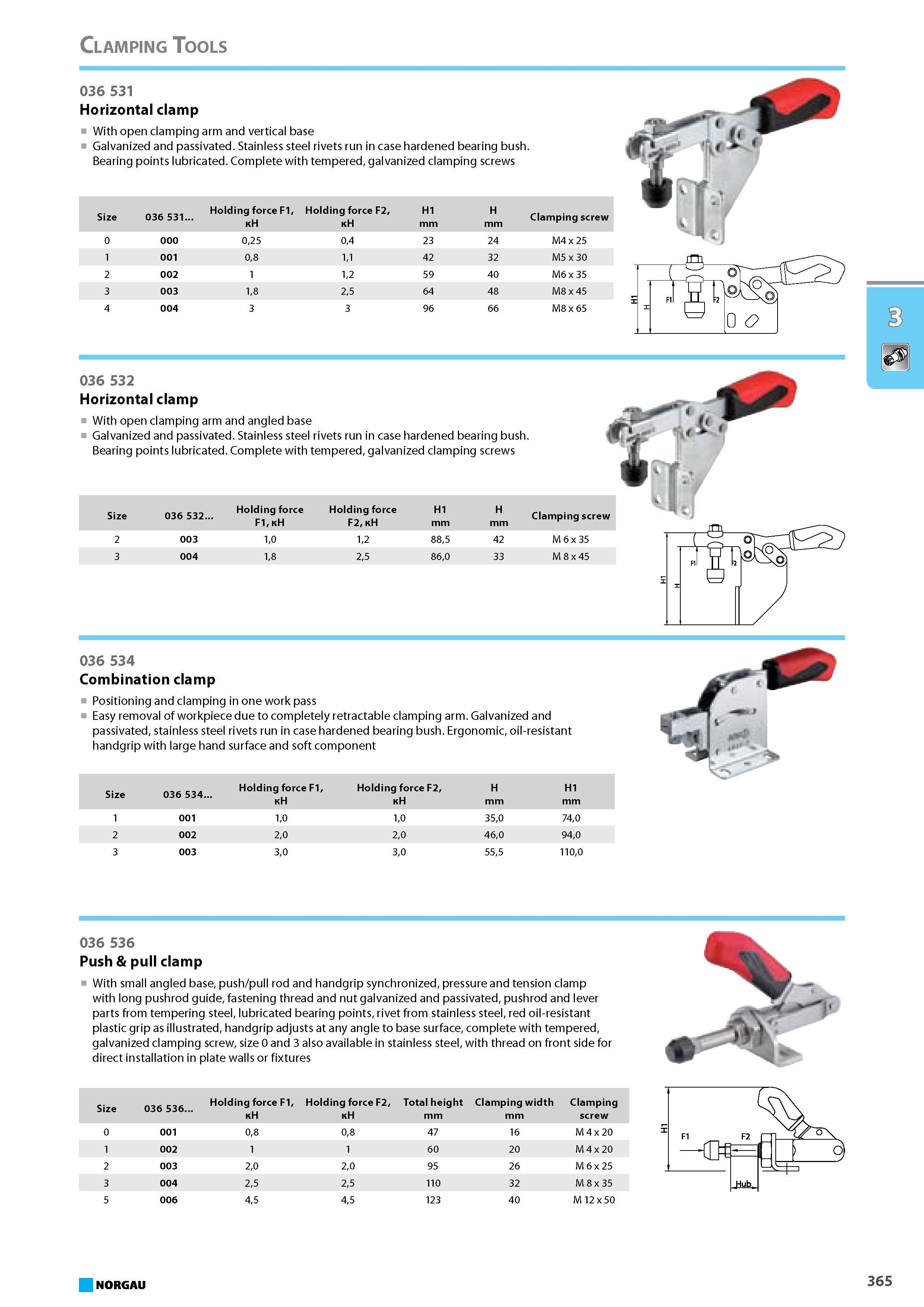

Horizontal clamp With open clamping arm and vertical base Galvanized and passivated. Stainless steel rivets run in case hardened bearing bush. Bearing points lubricate

Horizontal clamp With open clamping arm and vertical base Galvanized and passivated. Stainless steel rivets run in case hardened bearing bush. Bearing points lubricated. Complete with tempered galvanized clamping screws Size 036 531 Holding force F1 kH Holding force F2 kH H1 mm H mm Clamping screw 0 000 025 04 23 24 M4 x 25 1 001 08 11 42 32 M5 x 30 2 002 1 12 59 40 M6 x 35 3 003 18 25 64 48 M8 x 45 4 004 3 3 96 66 M8 x 65 w X ni ir b 0 036 532 Horizontal clamp With open clamping arm and angled base Galvanized and passivated. Stainless steel rivets run in case hardened bearing bush. Bearing points lubricated. Complete with tempered galvanized clamping screws Size 036 532 Holding force F1 kH Holding force F2 kH H1 mm H mm Clamping screw 2 003 10 12 885 42 M 6 x 35 3 004 18 25 860 33 M 8 x 45 036 534 Combination clamp Positioning and clamping in one work pass Easy removal of workpiece due to completely retractable clamping arm. Galvanized and passivated stainless steel rivets run in case hardened bearing bush. Ergonomic oil-resistant handgrip with large hand surface and soft component Size 036 534 Holding force F1 kH Holding force F2 kH H mm H1 mm 1 001 10 10 350 740 2 002 20 20 460 940 3 003 30 30 555 1100 036 536 Push & pull clamp With small angled base push pull rod and handgrip synchronized pressure and tension clamp with long pushrod guide fastening thread and nut galvanized and passivated pushrod and lever parts from tempering steel lubricated bearing points rivet from stainless steel red oil-resistant plastic grip as illustrated handgrip adjusts at any angle to base surface complete with tempered galvanized clamping screw size 0 and 3 also available in stainless steel with thread on front side for direct installation in plate walls or fixtures Size 036 536 Holding force F1 Holding force F2 Total height Clamping width Clamping kH kH screw 001 002 003 004 006 08 1 20 2.5 4.5 08 1 20 2.5 4.5 47 60 95 110 123 16 20 26 32 40 M 4 x 20 M 4 x 20 M 6 x 25 M 8 x 35 M 12 x 50 NORGAU 365 mm mm Clamping Tools 036 531
