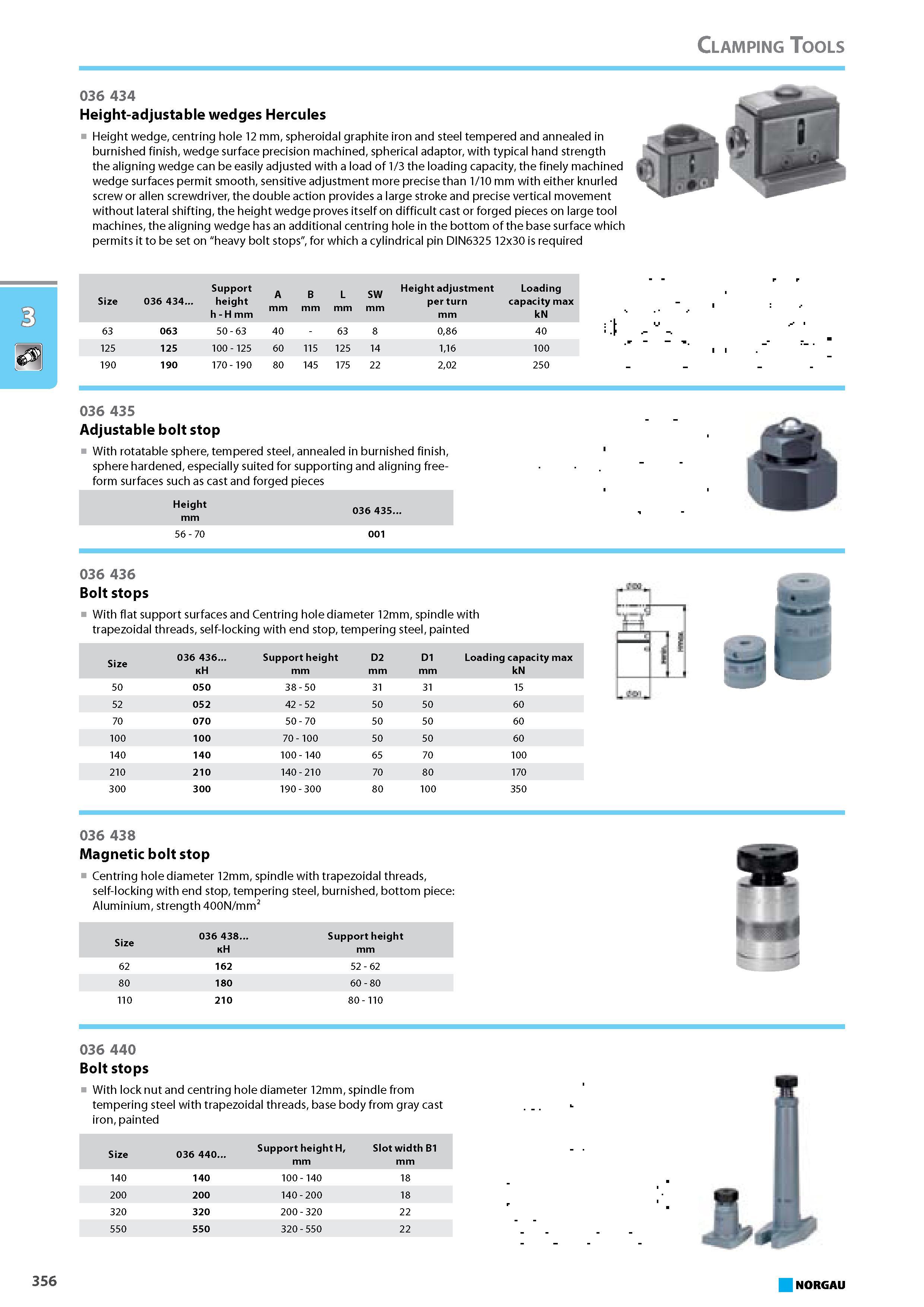

Height-adjustable wedges Hercules Height wedge centring hole 12 mm spheroidal graphite iron and steel tempered and annealed in burnished finish wedge surface precision

Height-adjustable wedges Hercules Height wedge centring hole 12 mm spheroidal graphite iron and steel tempered and annealed in burnished finish wedge surface precision machined spherical adaptor with typical hand strength the aligning wedge can be easily adjusted with a load of 1 3 the loading capacity the finely machined wedge surfaces permit smooth sensitive adjustment more precise than 1 10 mm with either knurled screw or allen screwdriver the double action provides a large stroke and precise vertical movement without lateral shifting the height wedge proves itself on difficult cast or forged pieces on large tool machines the aligning wedge has an additional centring hole in the bottom of the base surface which permits it to be set on "heavy bolt stops for which a cylindrical pin DIN6325 12x30 is required Size 036 434 Support height h - H mm A mm B mm L mm SW mm Height adjustment per turn mm Loading capacity max kN 63 063 50 - 63 40 - 63 8 086 40 125 125 100 - 125 60 115 125 14 116 100 190 190 170 - 190 80 145 175 22 202 250 036 435 Adjustable bolt stop With rotatable sphere tempered steel annealed in burnished finish sphere hardened especially suited for supporting and aligning freeform surfaces such as cast and forged pieces Height 036 435 mm 56 - 70 001 036 436 Bolt stops With flat support surfaces and Centring hole diameter 12mm spindle with trapezoidal threads self-locking with end stop tempering steel painted Size 036 436 kH Support height mm D2 mm D1 mm Loading capacity max kN 50 050 38 - 50 31 31 15 52 052 42 - 52 50 50 60 70 070 50 - 70 50 50 60 100 100 70 100 50 50 60 140 140 100 - 140 65 70 100 210 210 140 - 210 70 80 170 300 300 190 - 300 80 100 350 036 438 Magnetic bolt stop Centring hole diameter 12mm spindle with trapezoidal threads self-locking with end stop tempering steel burnished bottom piece Aluminium strength 400N/mm2 Size 036 438 kH Support height mm 62 162 52 - 62 80 180 60 - 80 110 210 80 - 110 036 440 Bolt stops With lock nut and centring hole diameter 12mm spindle from tempering steel with trapezoidal threads base body from gray cast iron painted Size 036 440 Support height H mm Slot width B1 mm 140 140 100 - 140 18 200 200 140 - 200 18 320 320 200 - 320 22 550 550 320 - 550 22 356 NORGAU Clamping Tools 036 434
