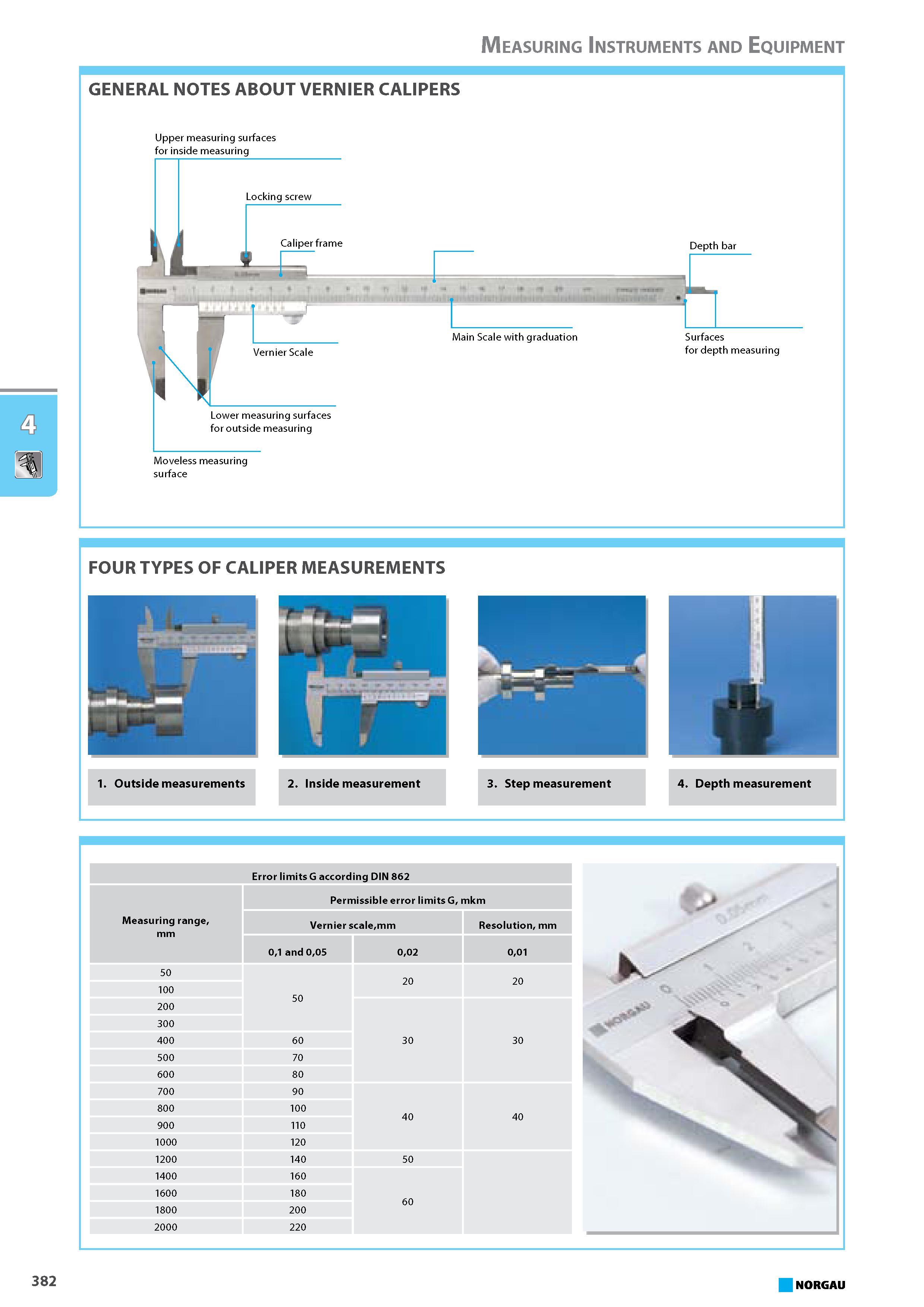

GENERAL NOTES ABOUT VERNIER CALIPERS Upper measuring surfaces for inside measuring Locking screw lL Caliper frame Depth bar Main Scale with graduation Surfaces for dep

GENERAL NOTES ABOUT VERNIER CALIPERS Upper measuring surfaces for inside measuring Locking screw lL Caliper frame Depth bar Main Scale with graduation Surfaces for depth measuring Moveless measuring surface FOUR TYPES OF CALIPER MEASUREMENTS 1. Outside measurements 2. Inside measurement 3. Step measurement 4. Depth measurement Error limits G according DIN 862 Permissible error limits G mkm Measuring range mm Vernier scalemm Resolution mm 01 and 005 002 001 50 100 20 20 200 50 300 400 60 30 30 500 70 600 80 700 90 800 100 900 110 40 40 1000 120 1200 140 50 1400 160 1600 180 1800 200 60 2000 220 382 NORGAU Measuring Instruments and Equipment
